Amaga 7 Drone — FPV Kit with Day Camera and 6s2p LiitoKala Battery

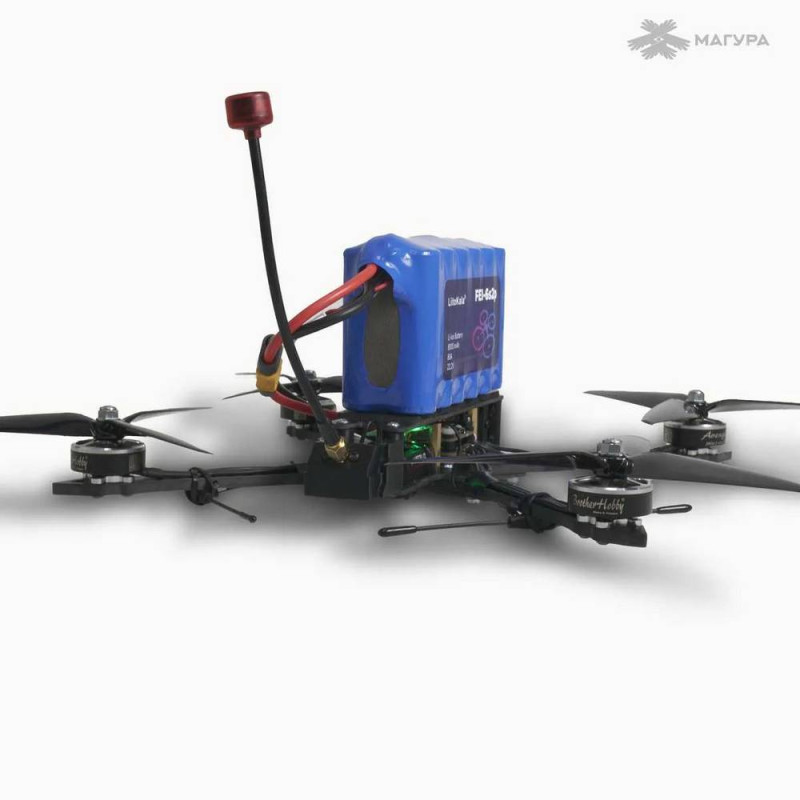

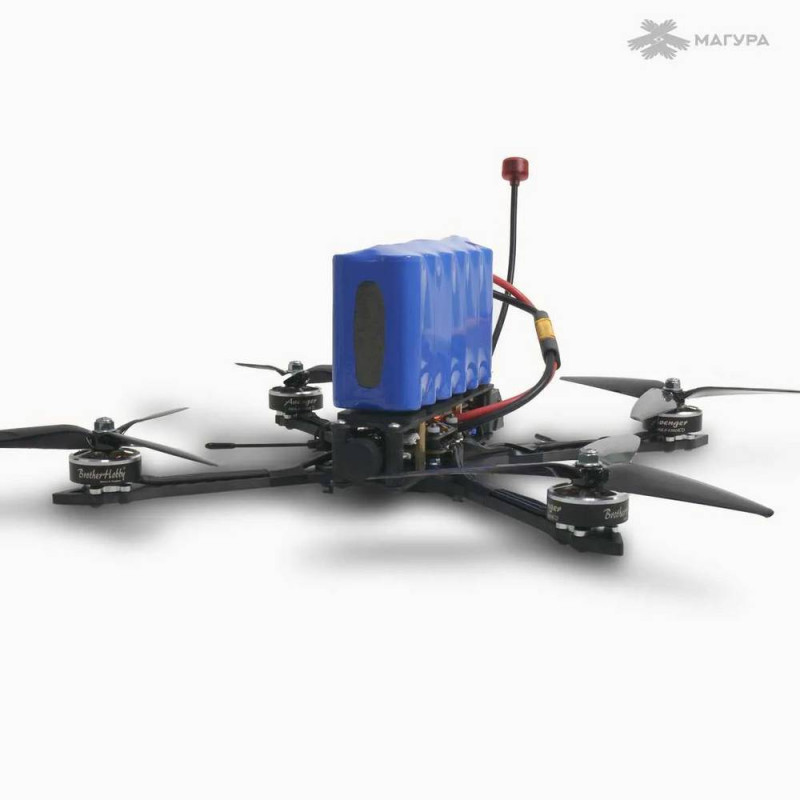

Introducing the ready-to-fly Amaga 7 FPV drone from the Magura brand. This kit is designed for pilots who value structural rigidity, the reliability of each component, and high-quality in-flight visuals. The Amaga 7 combines a proprietary carbon fiber frame, powerful BrotherHobby motors, a modern video system with VTX RUSH Tank MAX, and a CADDX Ratel 2 (Black) 1200 TVL day camera. Power is supplied by a 6s2p LiitoKala Lii-40A battery, ensuring long flights and stable current delivery.
Key advantages: rigid carbon fiber frame, BrotherHobby LPD 2806.5 1300KV motors with a maximum thrust of 2000g, Galichina 55A ESCs, powerful RUSH Tank MAX video transmitter (25/500/1000/2500mW), Rush Cherry RHCP antenna, and a robust payload mounting kit.
| Component | Name |
| Frame | Amaga 7 Proprietary rigid carbon fiber frame |
| Motors | BrotherHobby LPD 2806.5 1300KV with max thrust 2000g |
| Stack | Galichina v1.3 (7850) 55A / Galichina v2.0 (7850) 55A |
| Video Transmitter VTX | RUSH Tank MAX Solo 5.8G 25/500/1000/2500mW |
| Video Antenna | Rush Cherry 5.8G RHCP SMA straight connector 160mm |
| Camera | CADDX Ratel 2 (Black) 1200 TVL |
| Radio Receiver RX | Iflight ExpressLRS 915Mhz receiver with 70mm antenna |
| Propellers | Gemfan Flash Army 7040-3 |
| Battery Straps | Wide 35x40 |
| Payload Mount | + |
| Capacitor | Panasonic 820 Uf |
| Battery | 6s2p, LiitoKala Lii-40A |
What's Included in the Amaga 7 FPV Drone Kit
Below is the kit composition with quantities. All items meet specifications for fast and stable flights on 7-inch propellers.
| Component Name, Unit of Measure | Quantity |
| 1 Frame: 7 inches, rigid carbon, proprietary or analog, pc. | 1 |
| 2 Electric brushless motor: size A2807, power 1300KV, max thrust up to 2000g, pc. | 4 |
| 3 Electronic speed controller (ESC): current 55A * 4 (for 4 units), pc. | 1 |
| 4 Propeller: size 70*40*3 or 70*35*3 (set of three-blade propellers 4 units), pc. | 2 |
| 5 Video transmitter antenna: RushCherry, Lollipop, Pagoda, V shape types, frequency range (1.2-1.3) GHz; (4.9 - 6.2) GHz, RHCP polarization, SMA straight connector, size (100-160) mm or analog, pc. | 1 |
| 6 Video camera: analog CVBS signal, resolution not less than 1200 TVL, sensor matrix not less than 1/3″, pc. | 1 |
| 7 Flight controller: based on MCU STM32F405 chip, (3.3 - 9) V, 5 A, pc. | 1 |
| 8 Control signal receiver: ELRS or CrossFire protocol, single or dual antenna, pc. | 1 |
| 9 Video transmitter: CVBS PAL / NTSC video format, power from (25 - 3500) mW, pc. | 1 |
| 10 Battery straps, pc. | 1 |
| 11 Power battery 6S2P not less than 8000 mAh, not less than 30 A, pc. | 1 |
| 12 Plastic ties for "Warhead" mounting, pc. | 4 |
The Amaga 7 drone is suitable for both FPV sports flights and payload operations, thanks to its payload mount and powerful motors with ample thrust. The RUSH Tank MAX video transmission system combined with the Rush Cherry antenna ensures a stable and high-quality video signal, while the CADDX Ratel 2 (1200 TVL) camera guarantees a clear daytime image. Galichina 55A ESCs and a Panasonic 820 Uf capacitor enhance the reliability of the electrical system, and the included Gemfan Flash Army 7040-3 propellers provide efficient thrust and control.
Brand: Magura. Product category: Drones & Quadcopters > FPV Drones.
