Courier Drone Combat 10
Brand: 3dtech. Combat 10 is a powerful FPV courier-class drone designed for reliable cargo delivery, fast routes, and tactical range operations. This platform is suitable for small and medium-scale logistics tasks, rapid delivery of small loads, and missions involving various types of cameras and modules.
Key Features
- Payload capacity: 3.5 kg
- Flight duration: 15 min
- Tactical range: 15 km
- Cruising speed: 70 km/h
- Control type: ELRS / TBS*
- Control frequencies: 390-510 / 720-1020 MHz**
- Image transmission: Day / Night / Thermal analog camera
- Video channel frequencies: 4.9-6.1 / 3.3 / 1.3 GHz*
- Flight altitude: 50 - 1000 m
- Power battery: 6S3P 13500 mAh
Package Contents
- Frame: 10" (carbon)
- FC/ESC: F405, ESC 60A
- Motors: 3115 900kv
- VTX: 4.9/5.8/6.1 GHz 2W (optional: 6.1 GHz 2.5W)
- Camera: Day 1200 TVL (optional night / thermal)
- Video antenna: 5.8G, RHCP, long
- Control antenna: 915 mHz (optional: multi-band, adjustable to different frequencies)
- Props: 1050
- Strap: 2 pcs
- Battery: Li-on 6S 2P 8400mAh / 6S 3P 12600mAh (not included in price)
- Manual: 1 pc
Additional Features
- Multi-band control antenna
- Adapted FailSafe
- 6-band ELRS firmware with custom frequency option
- PID and filtering for payload weight
- VTX power control from remote
Optional Equipment
- Initiation boards v1 (2 fuses, contact sensor, self-activation system)
- Initiation boards v2 (remote activation)
- Night camera
- Analog thermal imager
- Drop system
- Pan-tilt camera
- Antennas for non-standard frequencies
LI ION BATTERY 6S2P (battery parameters)
- 5200 mAh Sony Murata
- Max discharge current: 60A (160A)
- Weight: 580 g
- 8400 MAH Molicel
- Max discharge current: 90A (180A)
- Weight: 840 g

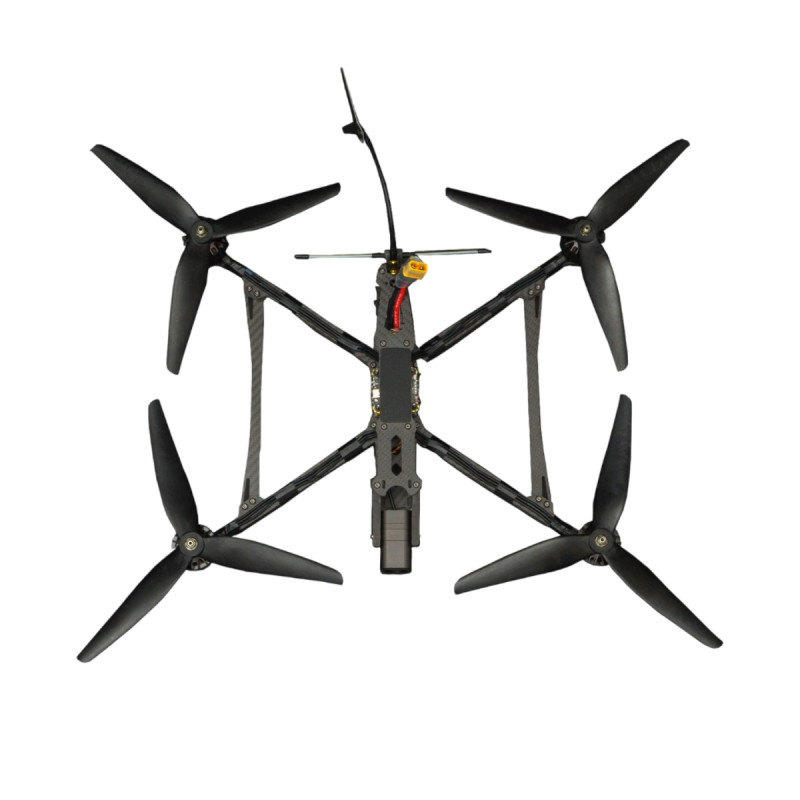

Combat 10 features optimized design and electronics for precise control and stability under load. A reliable 10" carbon frame, powerful 3115 900kv motors, and 60A ESC ensure stable ascent and control even with a payload of up to 3.5 kg. The VTX supports operation at 4.9/5.8/6.1 GHz with an output power of 2W (optional 6.1 GHz 2.5W). The image transmission system is compatible with day, night, and thermal analog cameras; video channels operate in the 4.9-6.1 / 3.3 / 1.3 GHz ranges.
The model allows for modular upgrades for specific tasks: multi-band control antenna, thermal camera, drop system, pan-tilt camera, or factory PID tuning for payload weight. Control options (ELRS / TBS) and extensive frequency customization capabilities make Combat 10 a flexible platform for tactical operations and logistics.
Product category: Drones & Quadcopters > FPV Drones. For consultation on individual configuration and available options, please contact our manager to select the optimal combination of battery, cameras, and antennas for your task.
