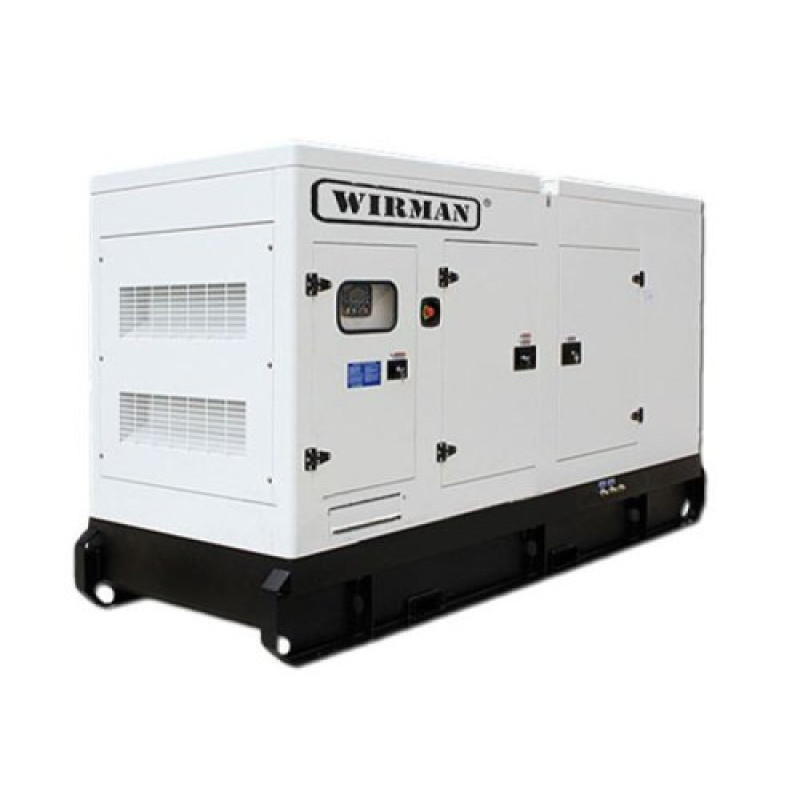

Wirman 90 KVA (72 kW) Diesel Generator
Overview: The Wirman 90 KVA (72 kW) Diesel Generator is a powerful and reliable energy source from the Wirman brand, designed to provide energy independence for industrial facilities, construction sites, and commercial and agricultural projects. This unit combines high output power with fuel efficiency for long-term operation.
Key Features: The 6-cylinder, four-stroke, water-cooled WIRMAN W6105 engine ensures stable operation under load. The electric starter and automatic start feature provide quick and easy startup in case of grid restoration or emergencies. A 160 L fuel tank allows for extended autonomous operation without frequent refueling, and fuel consumption at 75% load is 13.5 L/h, making the generator fuel-efficient.
Power and Electrical Parameters: The peak power of the model is 80 kW, and continuous (rated) power is 71.2 kW at a rated power factor of 0.8 cos φ. The generator is three-phase, operates at a frequency of 50 Hz with a voltage of 230/400V, meeting standard requirements for industrial and commercial consumers.
Operational Characteristics and Protection: The unit's noise level is 75 dB, allowing the device to be used in many working environments without excessive acoustic discomfort. Insulation class H and protection degree IP22 ensure the reliability of the electrical part during normal operation in protected environments.
Dimensions and Weight: Compact dimensions for its power — 2800x1050x1600 mm, weight 1950 kg, which simplifies transportation and installation, taking into account the necessary lifting equipment.
Technical Specifications:
| Voltage: | 230/400V |
| Engine type: | 6-cylinder, four-stroke, water-cooled WIRMAN W6105 |
| Start: | electric starter, automatic start |
| Fuel tank capacity: | 160 L |
| Peak power: | 80 kW |
| Continuous power: | 71.2 kW |
| Generator type: | three-phase |
| Rated power factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise level: | 75 dB |
| Fuel consumption (75% load): | 13.5 L/h |
| Insulation class: | H |
| Protection degree: | IP22 |
| Dimensions, LxWxH: | 2800x1050x1600 mm |
| Weight: | 1950 kg |
Where it is used: The Wirman 90 KVA is ideal for powering factories, construction sites, medical and commercial facilities, and for backup power for offices and communication networks. The combination of a large fuel tank, automatic start, and reliable engine makes it an excellent choice for sustained loads and operation in unstable grid conditions.
Advantages of buying from us:
- Original brand: Wirman.
- High peak and continuous power (80 kW / 71.2 kW).
- Economical fuel consumption of 13.5 L/h at 75% load.
- Convenient large 160 L fuel tank for extended autonomous operation.
- Reliable WIRMAN W6105 engine and automatic start.
If you need a reliable, powerful, and efficient diesel generator to ensure continuous operation of your facility, the Wirman 90 KVA (72 kW) is an excellent choice. Contact our specialists to select the optimal configuration and discuss delivery and installation terms.
