The UNIVERSAL UND-K 35 diesel generator from the Universal brand is a reliable and powerful solution for emergency and autonomous power supply to private, public, and commercial facilities. The unit generates a three-phase output voltage of 400 V, has a nominal power of 32 kVA / 26 kW, and a maximum power of 35 kVA / 28 kW, ensuring stable operation under various loads.

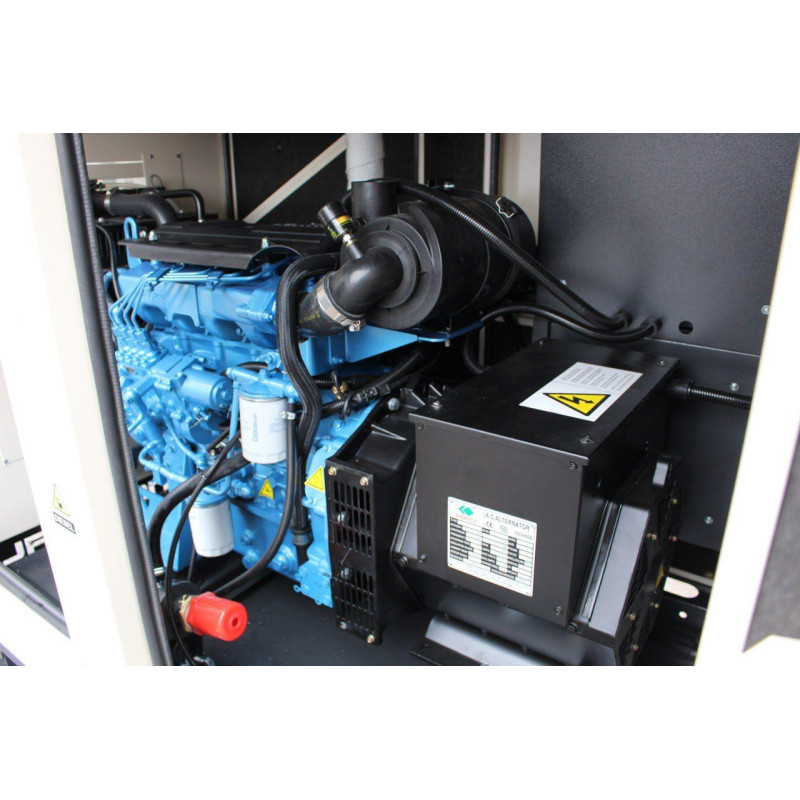

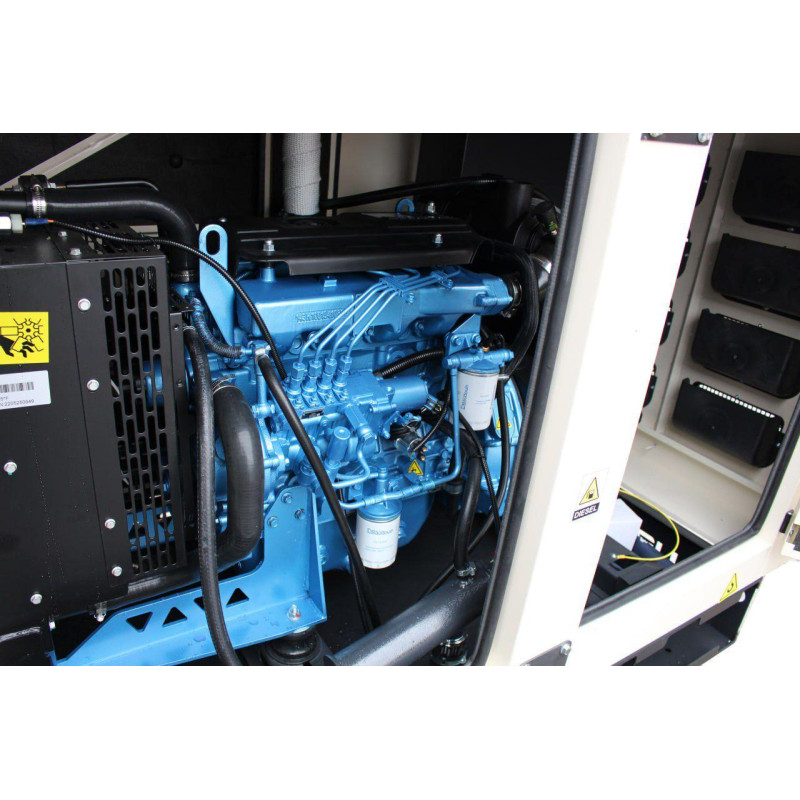

The UNIVERSAL UND-K 35 is equipped with a versatile KOFO generator engine, which combines high performance with moderate fuel consumption. The synchronous Surirella alternator with copper winding is sealed and protected from dust and moisture, guaranteeing high-quality electricity and resistance to overheating. Electric start is provided for quick and reliable ignition.

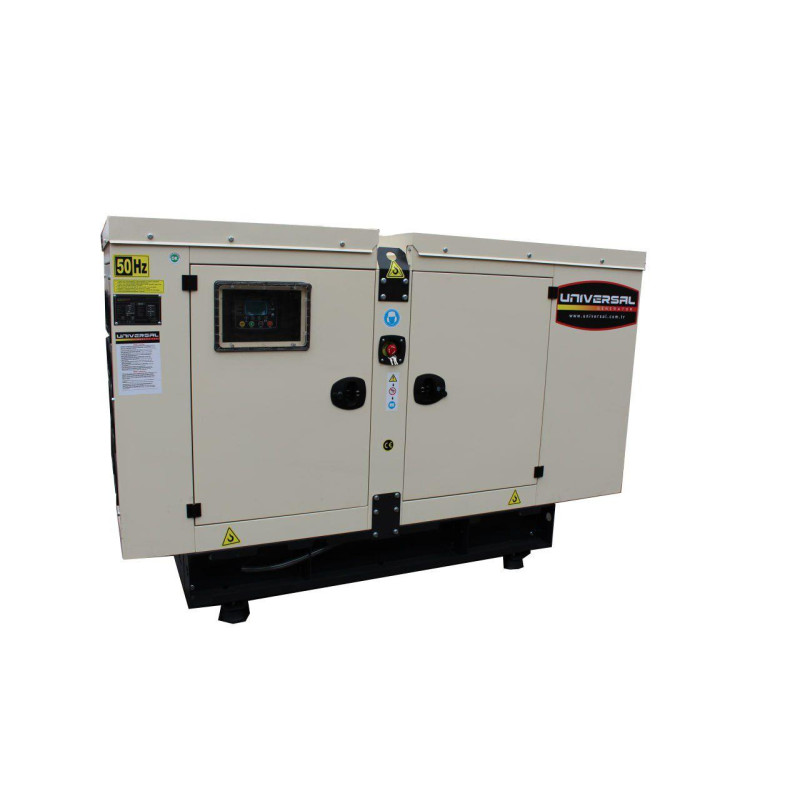

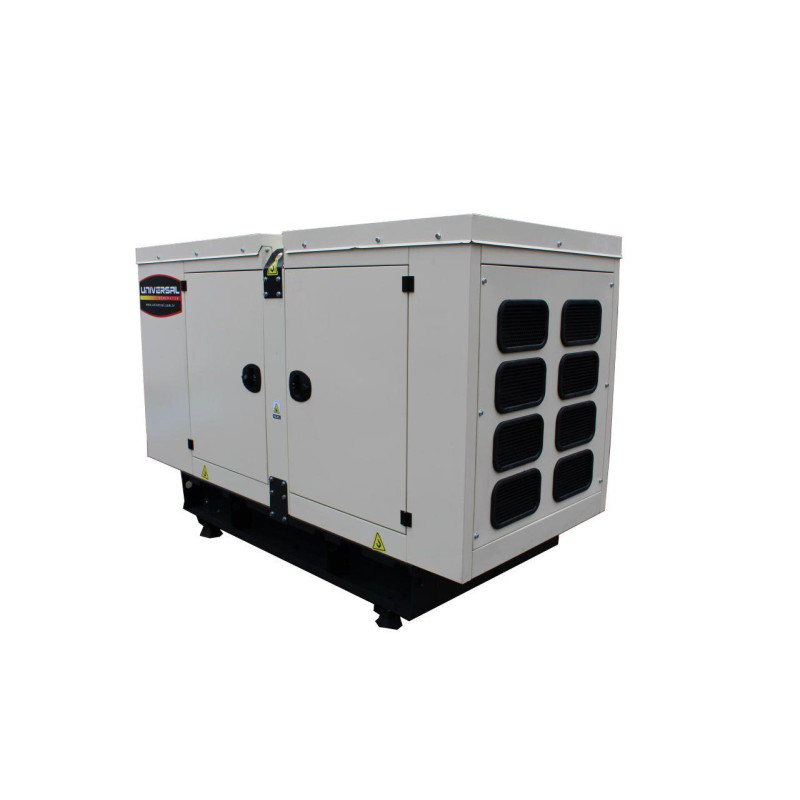

The housing design features a sound-absorbing all-weather casing with stiffening ribs: the casing is galvanized and covered with powder polyester paint, which prevents corrosion and moisture ingress; sound insulation made of special fiberglass layers ensures a low noise level, allowing the generator to be installed outdoors without additional shelters or covers.
Specifications and Features
- Nominal power: 32 kVA / 26 kW
- Maximum power: 35 kVA / 28 kW
- Output voltage type: three-phase, 400 V
- Engine: versatile KOFO
- Alternator: synchronous Surirella, copper winding
- Start: electric start
- Fuel consumption at 100% / 75% / 50% load: 9 / 7 / 5 l/h
- Sound-absorbing all-weather casing with stiffening ribs
- Galvanized casing with powder polyester coating
- Automatic coolant preheating function
- Monitoring and automatic battery charging
- DATAKOM control panel — convenient and intuitive
- Multilingual support
- Ability to monitor and adjust current operating parameters (optional)
- Programming via USB, RS-232, and GSM (optional)
Area of Application
Thanks to its operating characteristics and reliability, this generator is effectively used for backup and autonomous power supply to the following facilities:
- Private households
- Industrial enterprises
- Agricultural enterprises
- Offices
- Banking institutions
- Government and commercial institutions
Package Contents
The standard package of the UNIVERSAL UND-K 35 diesel generator includes:
- Coolant preheater
- Automatic charger
- Battery
- Automatic transfer switch (ATS) unit
Advantages and Disadvantages
| Pros | Cons |
|---|---|
| Quite high power | Engine designed for operation as a backup power source |
| High quality electricity | |
| Low noise level | |
| Can be installed outdoors without shelters or covers |
Operation and Maintenance
The generator must be operated in accordance with the technical documentation and manufacturer's recommendations. Installation and commissioning must be performed only by a qualified specialist. The first technical maintenance is recommended after 50 hours of operation, then every 150 hours or in case of malfunctions.
Safety Recommendations
When using the generator, strictly observe safety rules. Prohibited:
- Smoking and using open flames near the generator
- Adding fuel while the engine is running or before it has completely cooled down
- Mixing different types of oils and fuels
- Making unauthorized changes to the design and operating components of the generator
Additional Information

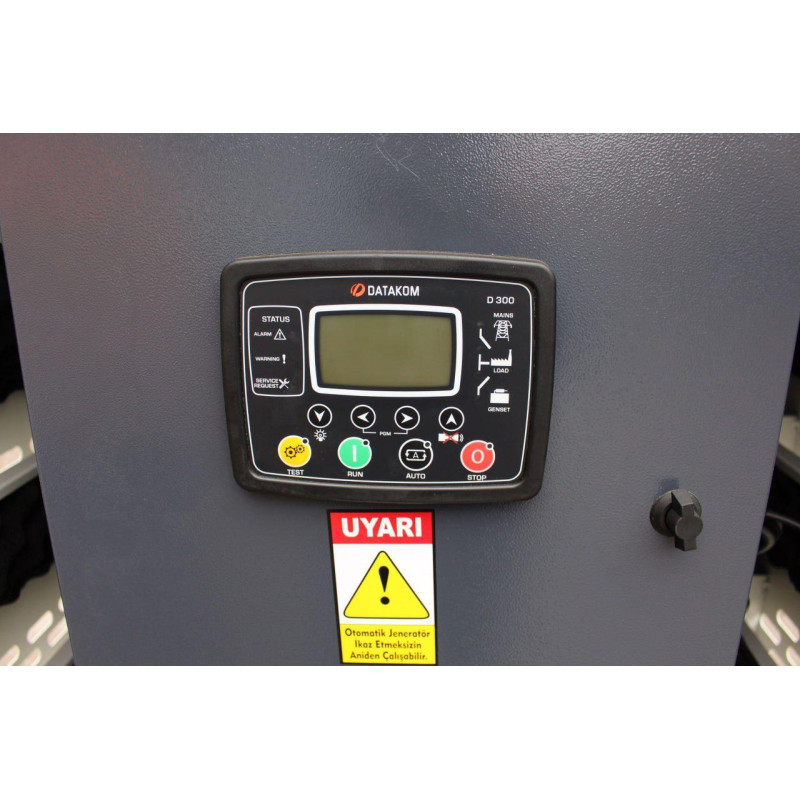

The DATAKOM control panel provides convenient control and display of parameters. Remote monitoring and programming options (USB, RS-232, GSM) allow the generator to be integrated into modern control systems. Status monitoring and automatic battery charging ensure the unit's readiness for operation even in frosty weather thanks to the automatic coolant preheating function. Industrial generators are supplied by KMA Ukraine directly from renowned global manufacturers, guaranteeing high quality and competitive prices.
Frequently Asked Questions
What power should an industrial generator have?
For industrial equipment, it is recommended to compile a list of devices planned for simultaneous connection and contact a manager for an individual power calculation.
What are the maximum and nominal power of a generator?
Nominal power is the power for which the generator is designed for continuous operation without the risk of overload. Maximum power is the peak value that the unit can provide for a short period.
How often should generator maintenance be performed?
The first maintenance is after 50 hours of operation, then approximately every 150 hours or as needed.
What is the warranty period for an industrial generator?
Industrial generators come with a 12-month warranty.
Can you help install and start the generator?
Yes, by arrangement, our specialists visit the client to perform commissioning works.
