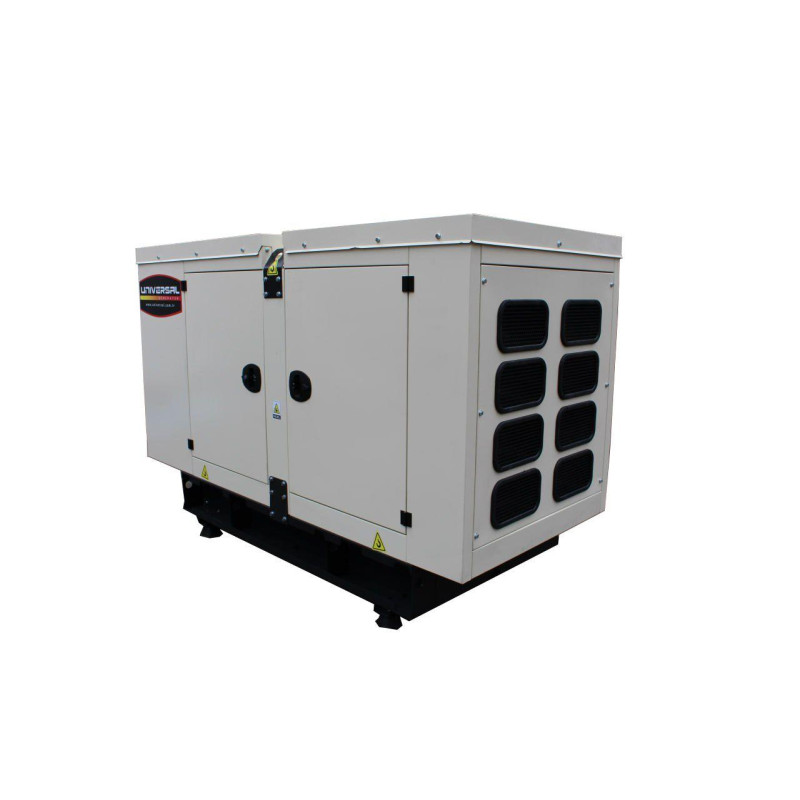

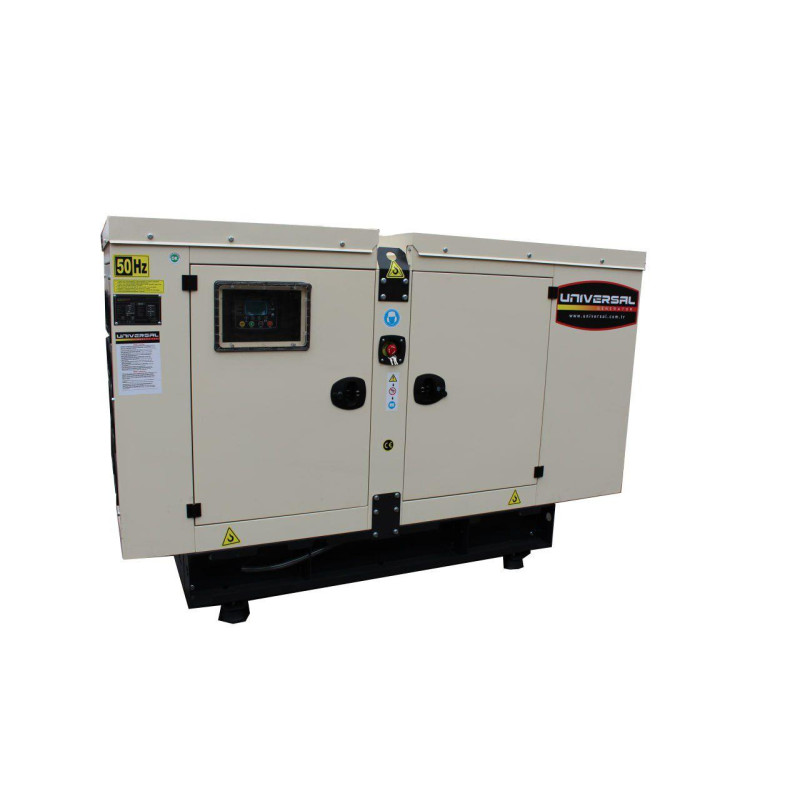

The UNIVERSAL UND-BD 25 diesel generator from the Universal brand is an industrial power plant for autonomous and emergency power supply to private, commercial, and government facilities. The device generates two types of output voltage: 220 V and 400 V, providing flexibility for connecting loads. The maximum power is 25 kVA/20 kW, and the nominal power is 23 kVA/18 kW, making the model suitable for a significant range of tasks from household to industrial.

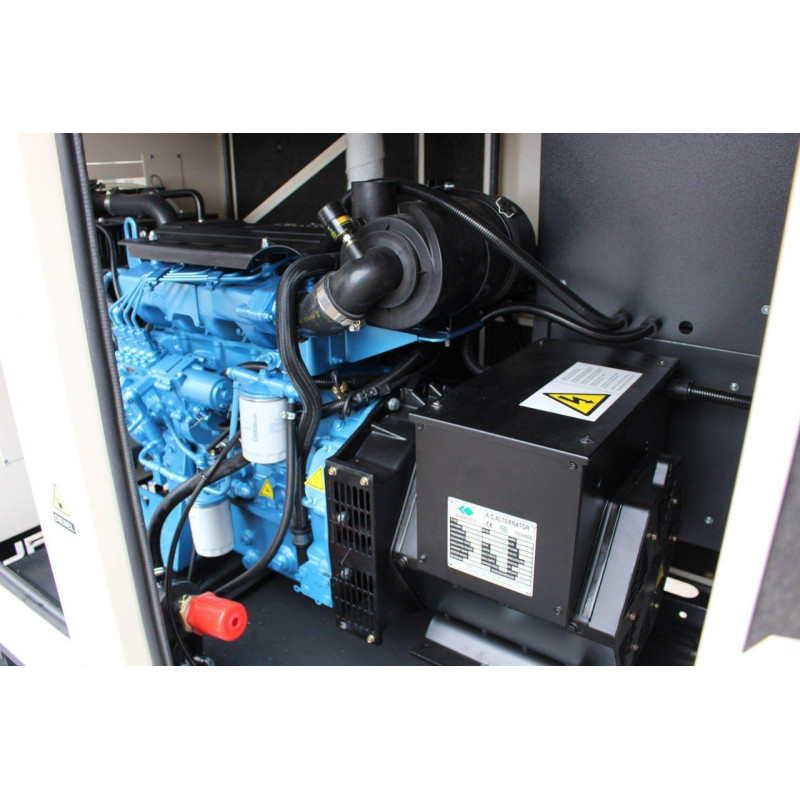

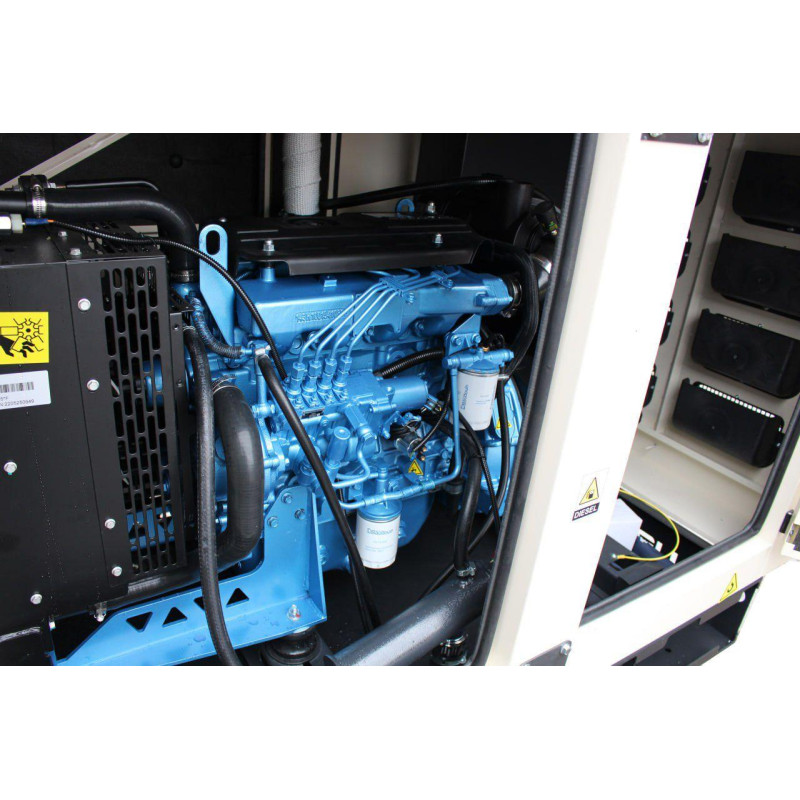

The versatile BAUDOUIN engine combined with a Surirella alternator guarantees high-quality electricity and stable voltage without surges or interruptions. The sound-absorbing, all-weather enclosure allows the generator to be installed outdoors without additional shelters; the enclosure is galvanized and coated with powder polyester paint for protection against corrosion and moisture. Sound insulation made of special fiberglass plates reduces noise levels during operation.

Key Features

• Two types of output voltage: 220 V and 400 V
• Maximum power 25 kVA/20 kW, nominal 23 kVA/18 kW
• BAUDOUIN engine — reliability and efficiency
• Surirella alternator for stable power quality
• All-weather enclosure, can be mounted outdoors
• Enclosure is galvanized and coated with powder polyester paint
• Sound insulation made of fiberglass plates
• Automatic coolant preheating
• Monitoring and automatic battery charging

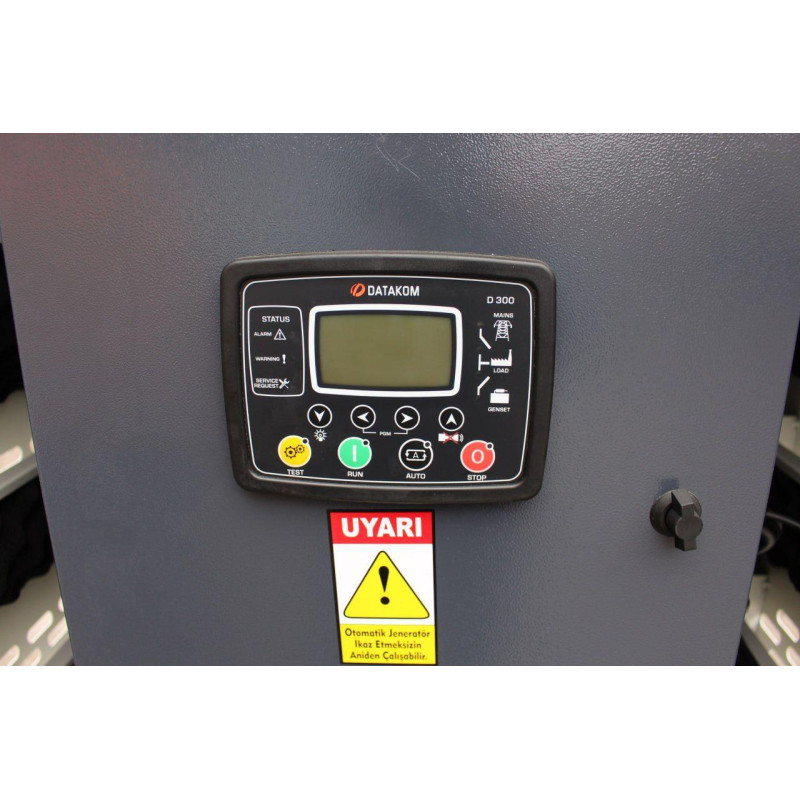

• Convenient DATAKOM control panel
• Programming via USB, RS-232, and optionally GSM

Certification

The generator is certified according to ISO 9001 and ISO 14001 standards, confirming production quality control and environmental compliance.

Application Area

The UNIVERSAL UND-BD 25 is suitable for backup and continuous power supply to various facilities, including:

• Private households
• Industrial and agricultural enterprises
• Banking institutions
• Government and municipal institutions
• Offices and commercial premises

Advantages and Disadvantages

Below are the main pros and cons of the model, which will help you make an informed decision when choosing:

Package Contents

The standard package includes the necessary equipment for startup and operation:

• Coolant heater
• Automatic charger
• Battery
• Automatic transfer switch (ATS) unit

Installation and Operation

Installation and connection of the generator must be performed by a qualified specialist in accordance with the manufacturer's technical documentation. For long-term and safe operation, adhere to scheduled maintenance and service recommendations.

Maintenance and Safety Tips

Strictly observe safety rules when working with generators. It is forbidden to:

• 1. Use open flames or smoke near a running generator.
• 2. Refuel while the engine is running or before it cools down.
• 3. Mix different types of oil and fuel.
• 4. Make changes to the design and mechanisms of the generator.

Frequently Asked Questions

How to choose a generator for an office?

Determine whether a single-phase or three-phase unit is needed, calculate the total power of the equipment that will operate simultaneously, and the installation location. With this information, contact our managers for individual selection.

Do you help with installation and startup?

Yes, by arrangement, we perform commissioning works and provide consultations on startup.

What is the power factor of a generator?

It is the ratio of actual (active) power in kW to apparent power in kVA. Apparent power includes active and reactive components, which is important when connecting motors and transformers.

Do you provide a warranty for generators?

The warranty period is 12 months or 500 operating hours, whichever comes first.

Who is the manufacturer of the presented generator?

It is a well-known Turkish brand specializing in generator equipment, renowned for its high quality and product efficiency.
