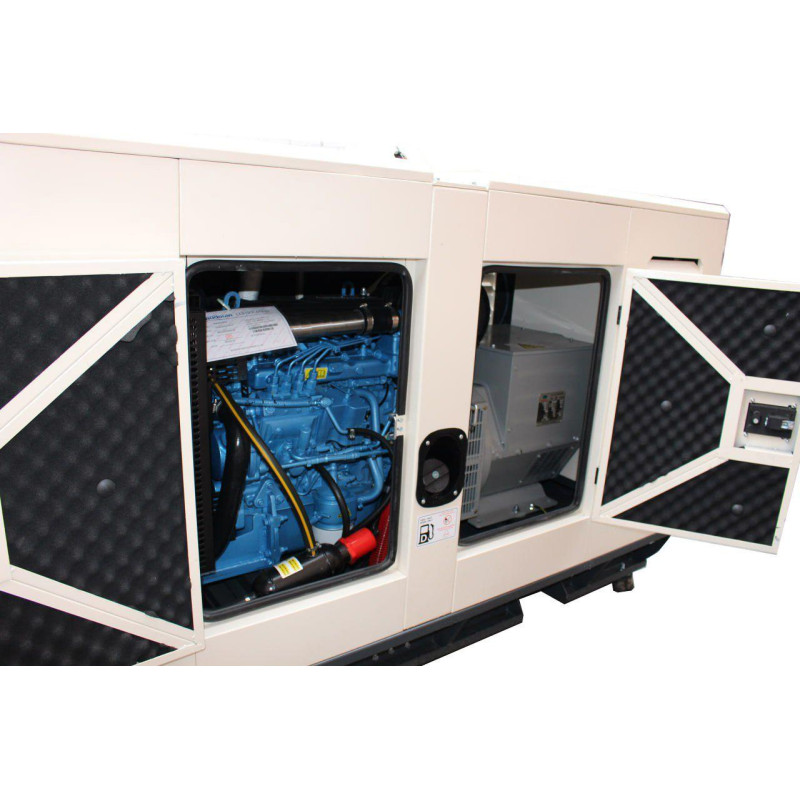

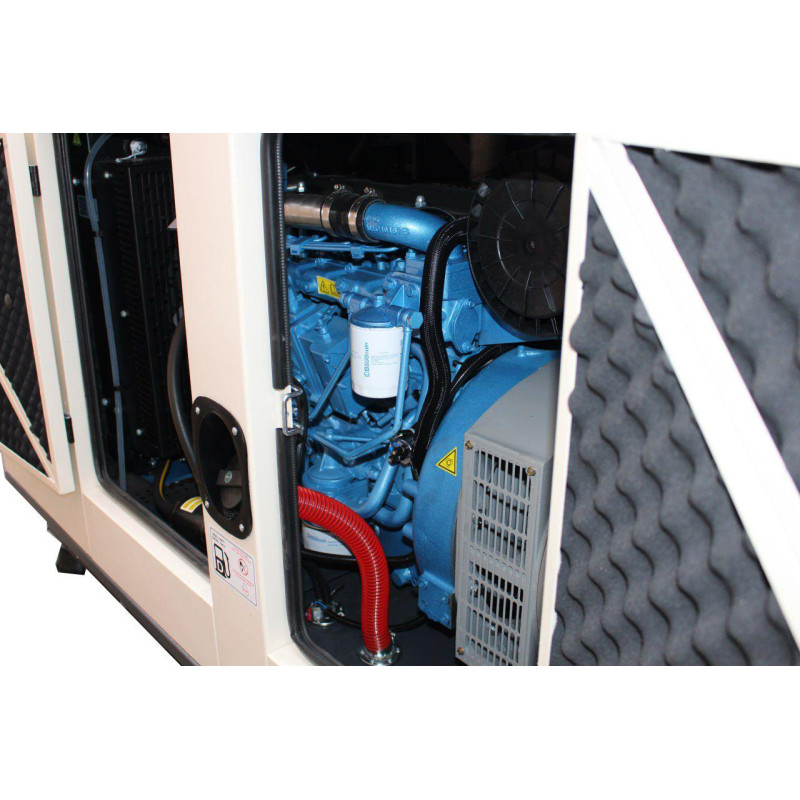

The SOYGEN SGB 70 KVA diesel generator from the Soygen brand is a powerful and reliable industrial power plant for backup and continuous power supply to private households, commercial facilities, and state and municipal institutions. This diesel generator is equipped with a versatile BAUDOUIN (France) generator engine, which guarantees high performance with economical fuel consumption, as well as stable and long-term operation thanks to its liquid cooling system.

The generator's nominal power is 63.6 kVA / 50.9 kW, and its maximum power is 70 kVA / 56 kW. The device produces a three-phase output voltage of 400 V, making it suitable for powering a wide range of three-phase equipment. A Surirella alternator with copper winding is used as the current generator, ensuring high-quality electricity and stable voltage under load.

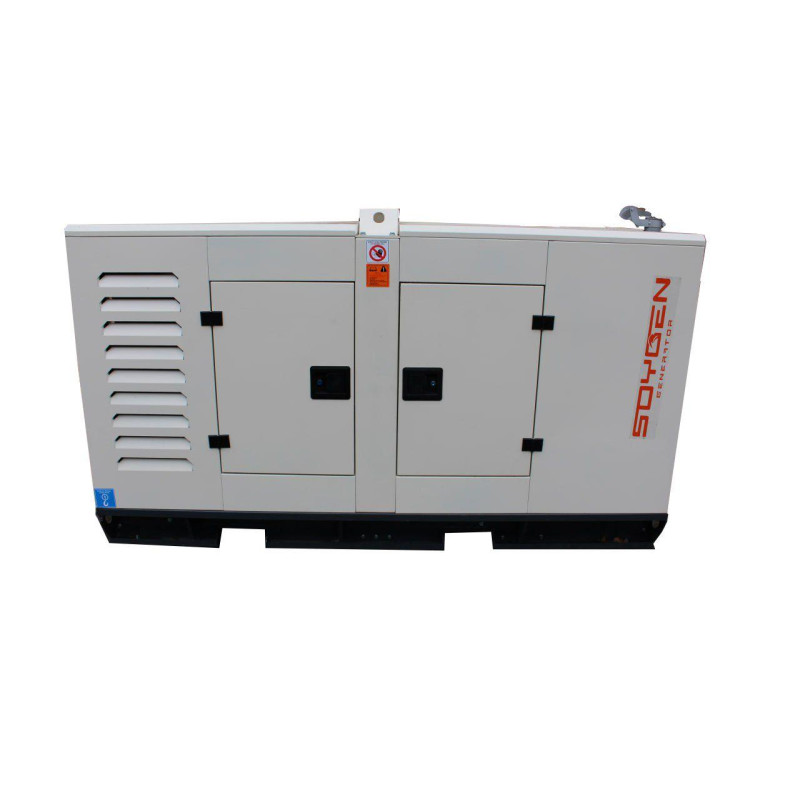

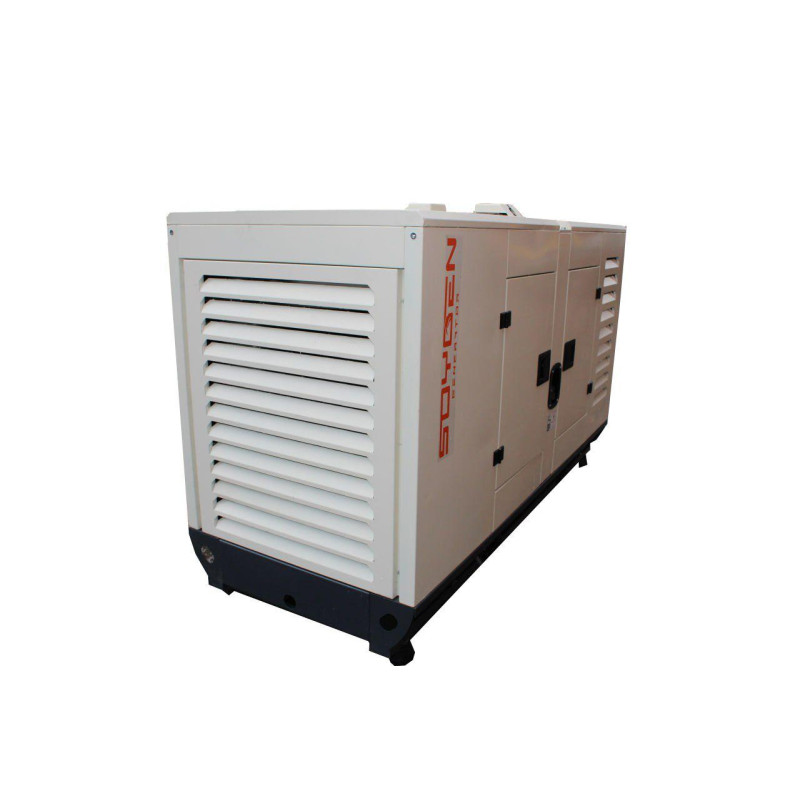

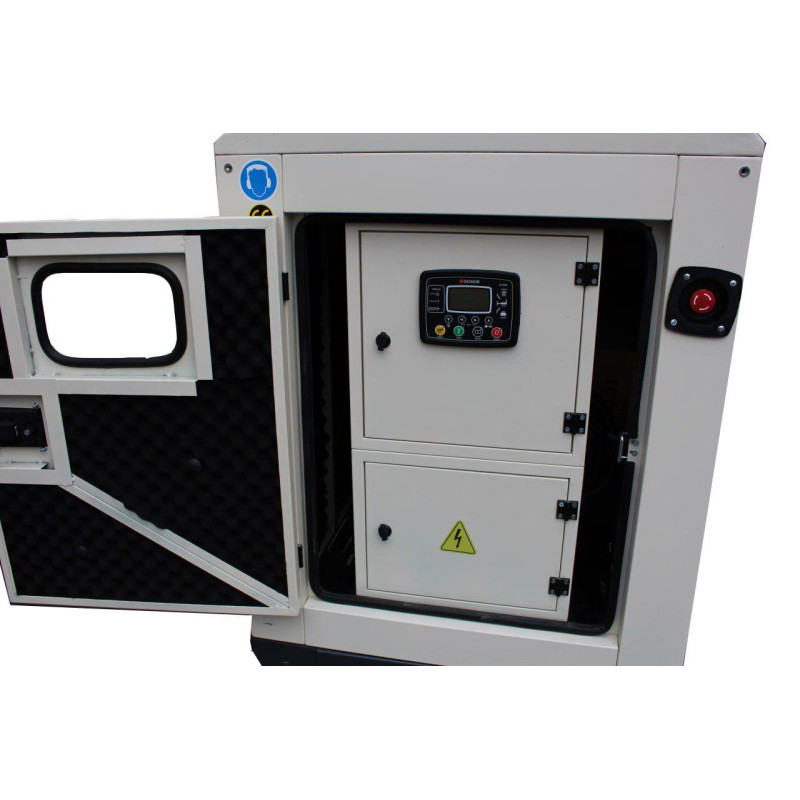

The generator's casing is all-weather, with sound insulation made of fiberglass panels and a powder polyester coating, featuring stiffening ribs for increased durability. Such a casing allows the power plant to be installed outdoors without additional covering, while ensuring a moderate noise level during operation. The DATAKOM control panel allows monitoring parameters and promptly responding to changes in generator operation.

Key advantages of SOYGEN SGB 70 KVA

• Nominal power: 63.6 kVA / 50.9 kW; maximum power: 70 kVA / 56 kW
• Three-phase output voltage 400 V
• BAUDOUIN generator engine (France)
• Electric starter for convenient startup
• Liquid cooling system for long continuous operation
• Surirella alternator with copper winding for high-quality electricity
• All-weather casing with powder polyester coating and stiffening ribs
• Casing sound insulation made of fiberglass panels
• Automatic coolant preheating and battery charging function for easy startup in cold weather
• Automatic battery charge monitoring

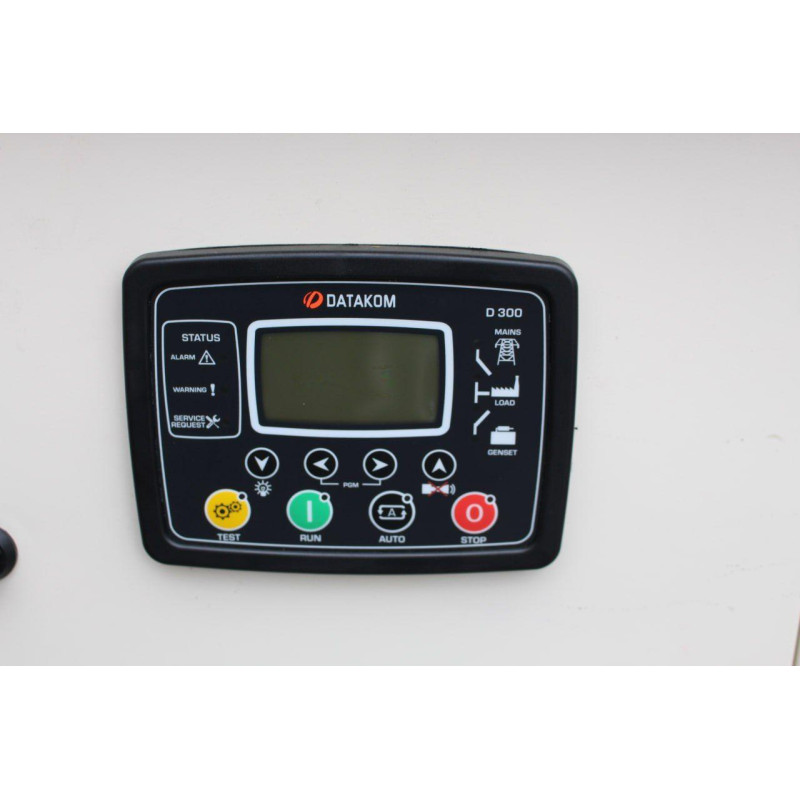

• Intuitive DATAKOM control panel

Package contents

The standard package of the SOYGEN SGB 70 KVA includes a complete set for operation and quick startup: an automatic transfer switch (ATS) unit, a coolant heater, a battery, an automatic charger, and a control system for the startup panel.

Areas of application

The SOYGEN SGB 70 KVA power plant is effectively used for backup and continuous power supply to private homes and households, offices, shops, restaurants, industrial enterprises, as well as state and municipal facilities. Thanks to its characteristics and protected casing, it is suitable for operation in various climatic conditions.

Questions and Answers

Which engine speed is better — 1500 rpm or 3000 rpm?

Generators with 3000 rpm engines have higher fuel consumption and shorter service life, so they are primarily used as backup power sources. For long-term continuous operation, it is better to choose units with a 1500 rpm engine.

What is the difference between air and liquid (water) cooling?

The difference lies in the duration and stability of operation: air-cooled generators can usually operate continuously for no more than approximately 10 hours, after which they require cooling; devices with a liquid cooling system are designed for longer continuous operation.

What are nominal and maximum power?

Nominal power is the power that the generator can deliver for a long time. Maximum power is maintained for a short period, for example, when starting devices with high inrush current.

How to correctly select the power of an industrial generator?

Selecting an industrial generator requires considering not only the total consumed power, but also inrush currents, load distribution across phases, and other factors. Our managers will help you calculate and suggest the optimal option.

Is a warranty provided?

All industrial generators come with a 12-month warranty.

The SOYGEN SGB 70 KVA diesel generator can be purchased on the official supplier's website with delivery across Ukraine. Product category: Energy Independence > Generators.
