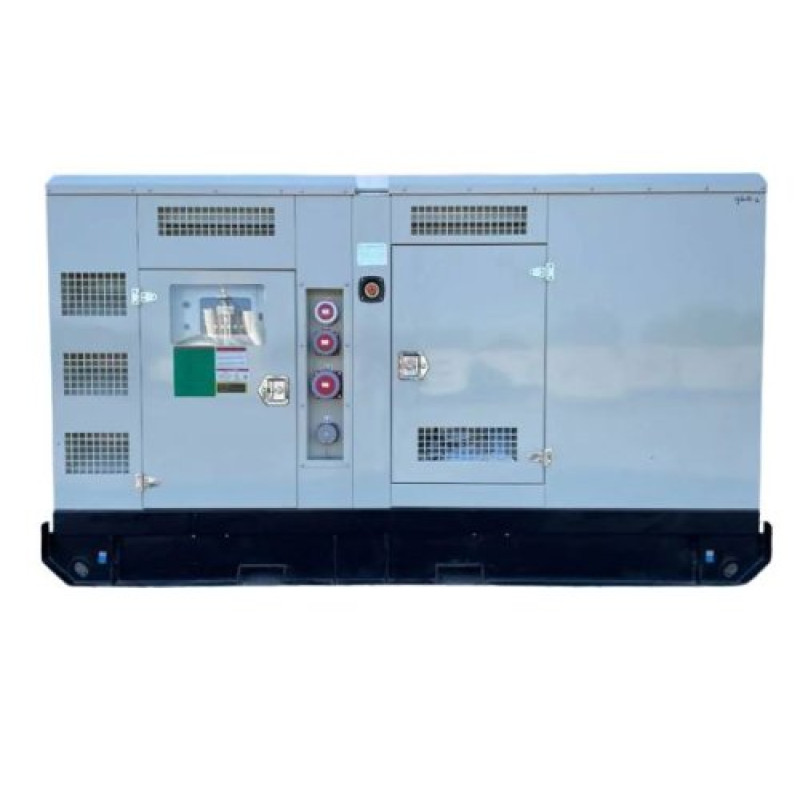

Perkins 1104C-44TAG2 Diesel Generator (88 kW)
Brief Description: The Perkins 1104C-44TAG2 diesel generator with an 88 kW (peak) output is a reliable solution for industrial, commercial, and emergency power supply systems. Manufactured under the Perkins brand, this unit combines a robust 4-cylinder, four-stroke, water-cooled, turbocharged diesel engine with a powerful Leroy Somer synchronous alternator and a modern Deepsea DSE 6120 controller for precise management and protection. The device is ideal for facilities requiring stable 400/230 V voltage and 50 Hz frequency.
Specifications:
| Voltage: | 400 / 230 V |
| Engine Type: | 4-cylinder, four-stroke, water-cooled, turbocharged |
| Engine Displacement: | 4400 cm3 |
| Starting System: | Electric |
| Fuel Tank Capacity: | 200 L |
| Peak Power: | 88 kW |
| Continuous Power: | 80 kW |
| Rated Current: | 144A |
| Frequency: | 50 Hz |
| Dimensions, LxWxH: | 2700x1050x1600 mm |
| Weight: | 1496 kg |
| Alternator: | Model - TAL-A44-H Alternator Brand - Leroy Somer Phase - 3 Voltage - 230/400V Connection Type - 12 wires Power Factor - 0.8 Voltage Regulation - ±0.5% Protection Class - IP 23 |
| Deepsea Controller: | Model DSE 6120 7 configurable digital inputs Built-in AVR regulator and control Base load function (kW export) Mains disconnection protection (utilities) Generator power monitoring (kW, kVA) Overload protection (kW and kVAr) Emergency stop Fail to start |
Advantages and Purpose: This unit provides stable continuous power of 80 kW with a peak reserve of up to 88 kW, making it suitable for powering production workshops, medical facilities, data centers, construction sites, and commercial properties. The electric start ensures quick and reliable startup, and the 200 L fuel tank capacity allows for extended autonomous operation without frequent refueling. The Leroy Somer synchronous alternator model TAL-A44-H with ±0.5% voltage regulation and IP23 protection class ensures precise output voltage stabilization and a long service life.
Control and Safety: The Deepsea DSE 6120 controller provides comprehensive operational control: configurable digital inputs, built-in AVR, power monitoring in kW and kVA, as well as overload protection, emergency stop, and fail-to-start. The mains disconnection protection function allows the generator to be used in automatic transfer switch (ATS) systems for emergency power.
Dimensions and Transport: The unit has dimensions of 2700x1050x1600 mm and a weight of 1496 kg, which should be considered when choosing an installation location and during transportation. The single-phase/three-phase connection scheme and rated current of 144 A at 50 Hz ensure compatibility with typical industrial equipment.
Brand and Classification: The engine manufacturer is Perkins, the alternator is based on Leroy Somer equipment, and control is provided by Deepsea DSE 6120. Product category: Energy Independence > Generators.
This diesel generator is an optimal choice for those who need power, reliability, and professional control of the unit's operation. It combines proven components and modern electronics for long-term operation in demanding conditions.
