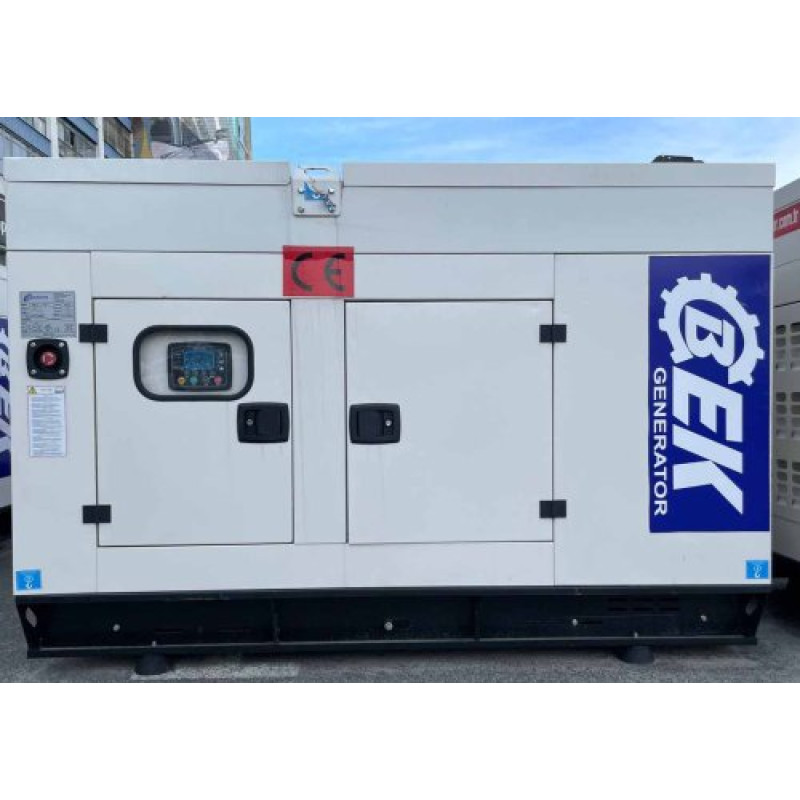

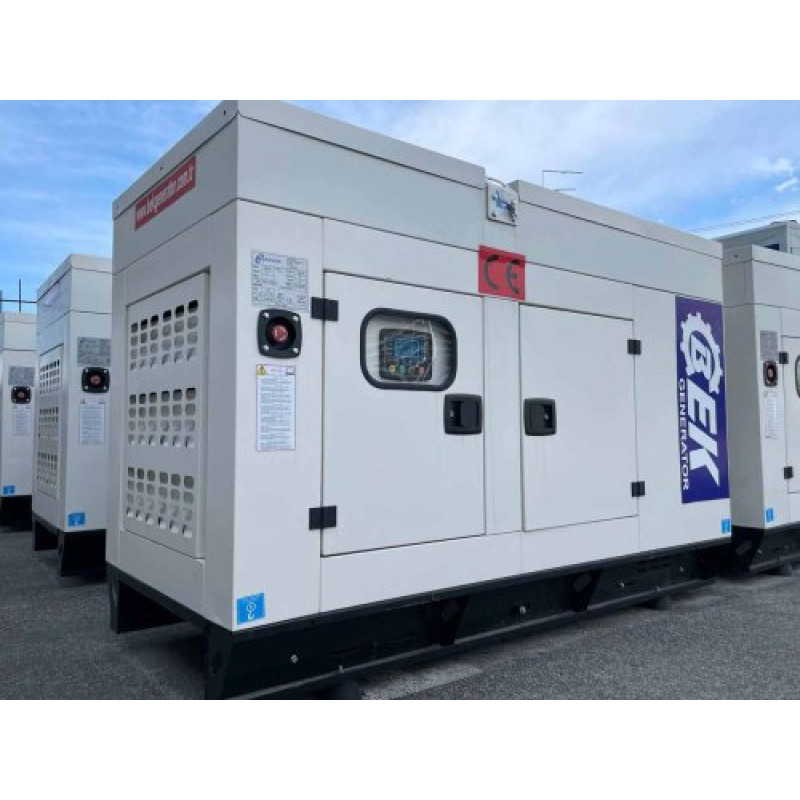

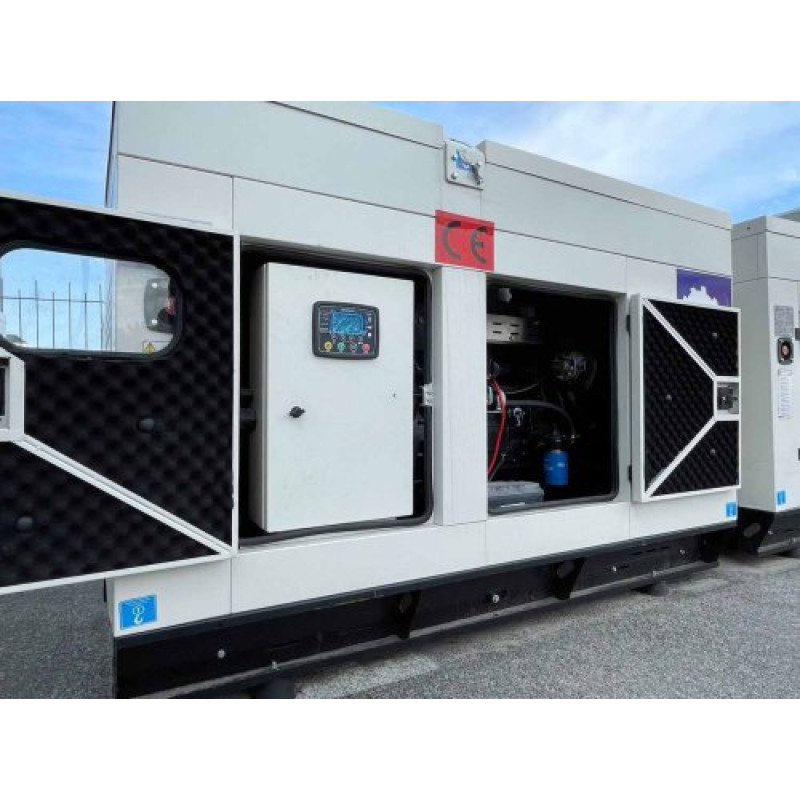

BEK MOTOR 44 Diesel Generator (33 kW)
Manufacturer: BEK. Category: Energy Independence > Generators. The BEK MOTOR 44 Diesel Generator (33 kW) is a powerful, economical, and reliable unit for providing uninterrupted power to commercial, industrial, and private facilities. The model combines high peak power with stable continuous operation, ensuring comfortable use even during prolonged power outages.

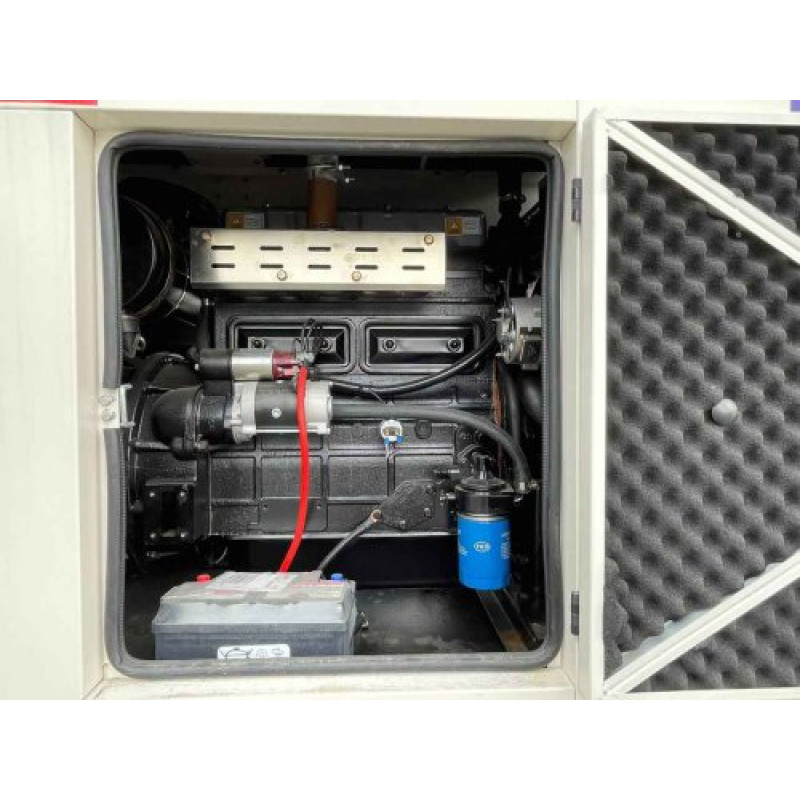

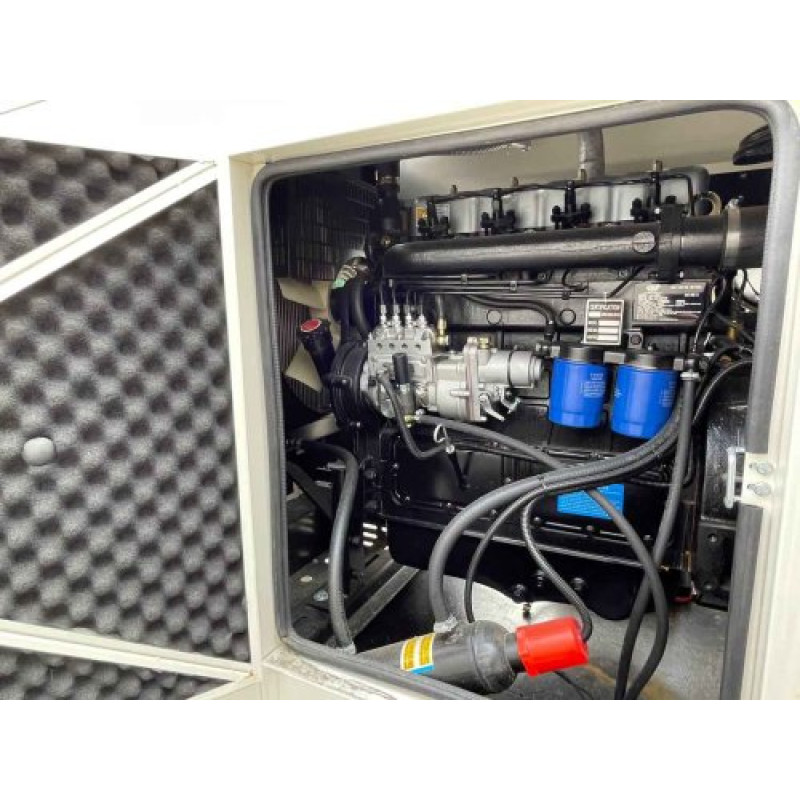

Briefly about the design and operating characteristics: the unit is equipped with a 4-cylinder, four-stroke YANGDONG 490D engine with a liquid cooling system, electric starter, and a spacious fuel tank for extended autonomous operation time.
| Voltage: | 400V/230V |
| Engine type: | 4-cylinder, four-stroke |
| Engine model: | YANGDONG 490D |
| Engine displacement: | 2210 cm3 |
| Bore and stroke: | 84x100 mm |
| Compression ratio: | 23.3:1 |
| Standby speed: | 1500 rpm |
| Cooling system: | Liquid |
| Total lubrication system capacity: | 10.6 L |
| Coolant capacity (without radiator): | 7 L |
| Fuel consumption at 100% load: | 5.9 L/h |
| Starting system: | Electric starter |
| Fuel tank capacity: | 65 L |
| Peak power: | 44 kVA / 33 kW |
| Continuous power: | 35.2 kVA / 31 kW |
| Power factor: | 0.8 |
| Number of wires: | 12 |
| Insulation class: | H |
| Protection level: | IP23 |
| Frequency: | 50 Hz |
| Noise level: | 78 dB |
| Dimensions, LxWxH: | 2000x800x1200 mm |
| Weight: | 800 kg |
Advantages of the BEK MOTOR 44 Generator (33 kW):
- High peak power of 44 kVA (33 kW) and reliable continuous power of 35.2 kVA (31 kW) will meet the needs for backup and primary power.
- Efficient YANGDONG 490D engine (4 cylinders, 2210 cm3, 84x100 mm, compression ratio 23.3:1) with liquid cooling ensures stability under various loads.
- Economical fuel consumption — 5.9 L/h at 100% load, combined with a 65 L tank, provides approximately 11 hours of operation at full load.
- Convenient electric starter, sufficient oil capacity of 10.6 L and coolant capacity of 7 L for long-term operation.
- Insulation class H and IP23 protection enhance reliability in standard outdoor conditions, while 12 wires and 50 Hz frequency meet typical connection requirements.
- Compact dimensions of 2000x800x1200 mm and a weight of 800 kg make the design robust and convenient for installation on stationary sites.
Recommended applications:
- Backup power for commercial and industrial facilities.
- Construction sites and remote facilities without grid access.
- Agricultural enterprises and agricultural machinery.
- Shops, offices, medical centers where maintaining power supply is critical.
Operational and service recommendations: Regular maintenance of the YANGDONG 490D engine and cooling system, monitoring oil level (total capacity 10.6 L) and coolant (7 L), using high-quality diesel fuel, as well as timely diagnostics of the electric starter and power system will ensure the generator's longevity and economical operation. The model is suitable for connection to 400V/230V networks, has a power factor of 0.8 and a noise level of 78 dB, which should be considered when choosing an installation location.
The BEK MOTOR 44 Diesel Generator (33 kW) is an optimal solution for those who need a powerful, economical, and reliable unit capable of providing autonomous power supply during outages or complete absence of grid power.
