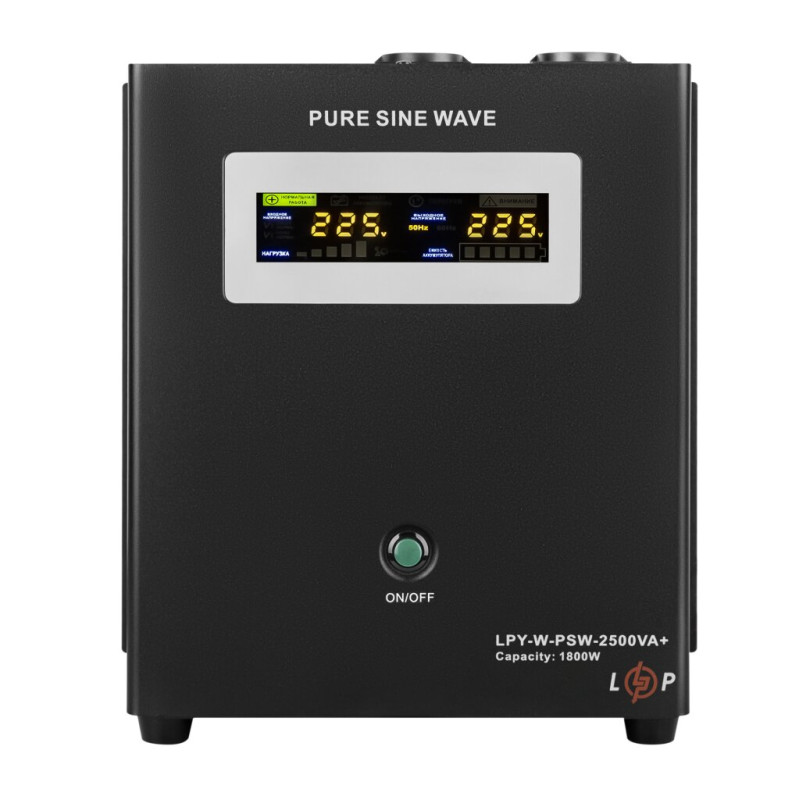

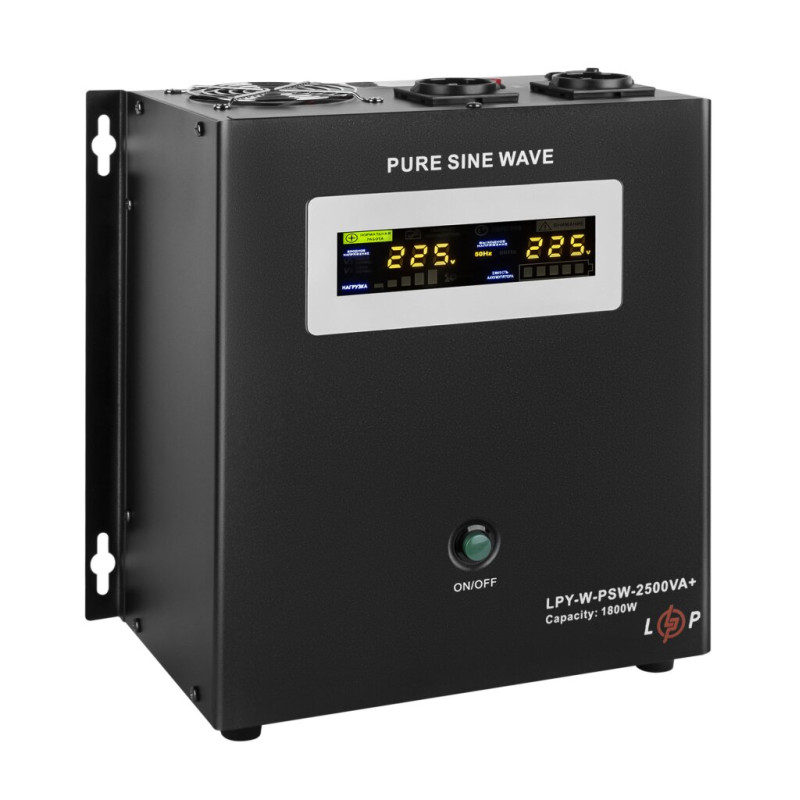

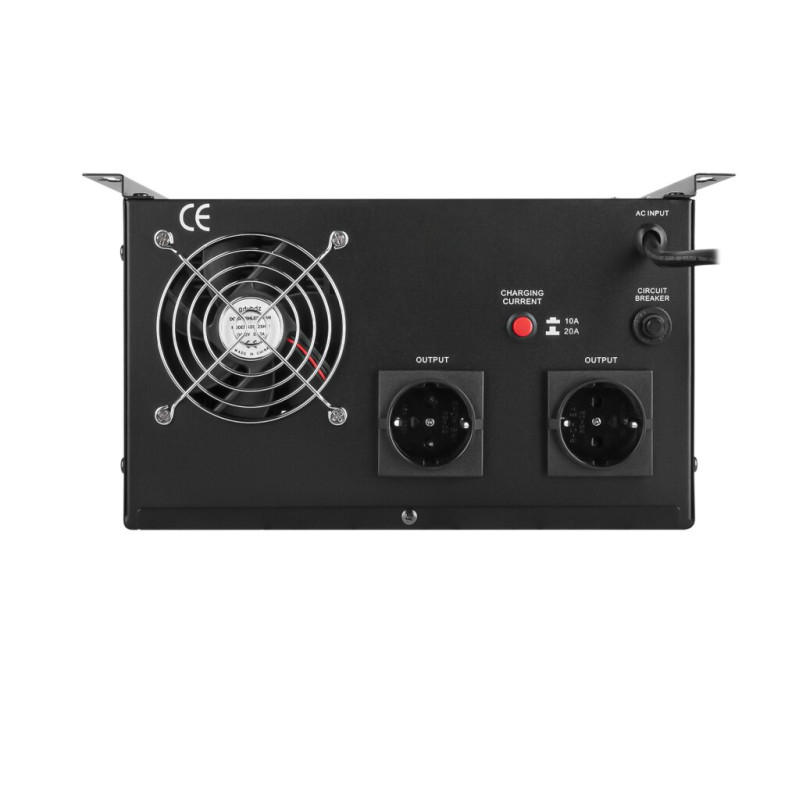

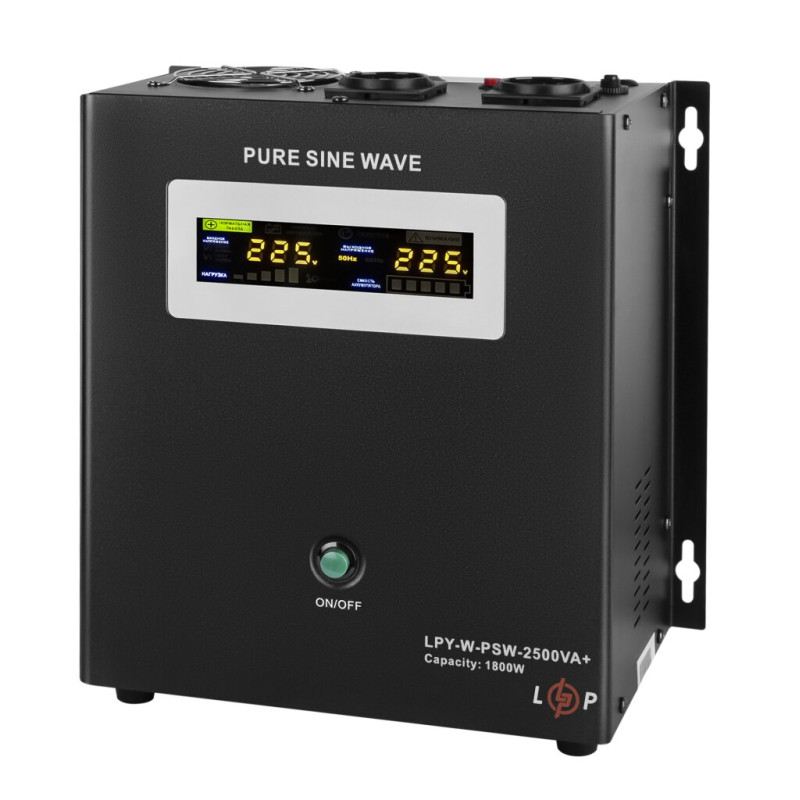

UPS with Pure Sine Wave LPY-W-PSW-2500VA+ (1800W) 10A/20A
Uninterruptible power supplies (UPS) with pure sine wave output provide autonomous operation of electrical equipment from a battery in case of power outage from the main grid.
The output voltage in the form of a pure sine wave allows the use of this type of UPS for electrical equipment:
- with transformer power supplies
- with large inductive coils
- with chokes
- with APFC (active power factor correction) power supplies, etc.
The LPY-W-PSW-2500VA+ (1800W) 10A/20A uninterruptible power supply has a built-in voltage stabilization function in the range from 140-275 V at the input to 220±10% at the output.
3 steps to connect the UPS:

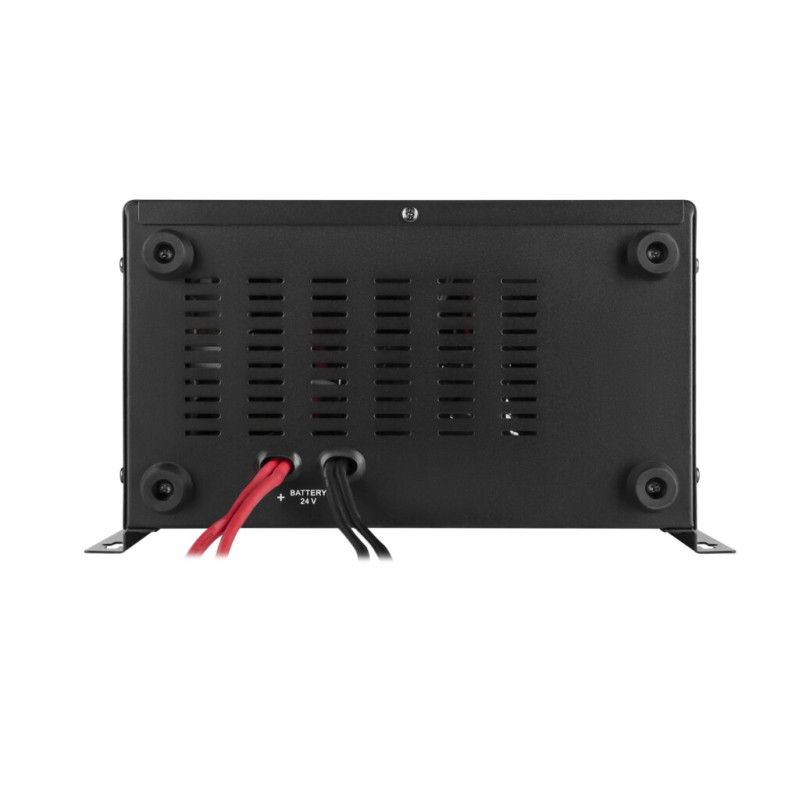

- Connect the battery observing polarity;
- Connect the UPS to the mains by plugging the UPS plug into a 220V socket;
- Wait for the self-diagnosis to complete and the UPS to turn on.
Attention! The UPS will turn on automatically! Do not press the power button or interrupt self-diagnosis!
UPS with pure sine wave and external battery are used:
- as uninterruptible power supplies for gas or solid fuel heating boilers
- UPS for emergency lighting
- to provide backup power for server stations and telecommunications equipment, thanks to the hot-swap battery function
- UPS with pure sine wave for circulation pumps
- as a voltage stabilizer with a backup power source for powerful and high-speed computers
How to choose a UPS for heating boilers and emergency lighting systems?
Before buying a UPS with a pure sine wave, you need to consider the following technical characteristics:
Total power of electrical appliances that will be connected to the UPS. This parameter can be found in the technical documentation of each piece of equipment.
Starting power – the amount of electricity consumed by the device when it is turned on. To connect a UPS to equipment with high inrush currents, you need to choose a more powerful UPS model.
Required time for autonomous operation from the battery. Determined by the individual needs of the consumer. For long-term autonomous operation, you should choose a UPS with a pure sine wave output to which an external battery can be connected.
The UPS with pure sine wave LPY-W-PSW-2500VA+ (1800W) 10A/20A has a power of 2500/1800 W.
Types of external batteries that can be connected to the UPS:
- Lead-acid AGM. Service life - up to 400 charge/discharge cycles
- AGM (multi-gel). Service life - up to 800 charge/discharge cycles
- Gel battery. Service life - up to 1200 charge/discharge cycles
- Lithium iron phosphate battery. Service life up to 7000 charge/discharge cycles
How to calculate the required battery capacity for an inverter (UPS) with a pure sine wave?
To calculate the battery capacity and UPS runtime, use the online calculator.
If you need to extend the cables connecting the battery to the UPS, contact technical support for advice.
Where can I buy an inexpensive and high-quality uninterruptible power supply with a pure sine wave in Ukraine?
LogicPower company – a leading manufacturer of electrical equipment in Ukraine!
