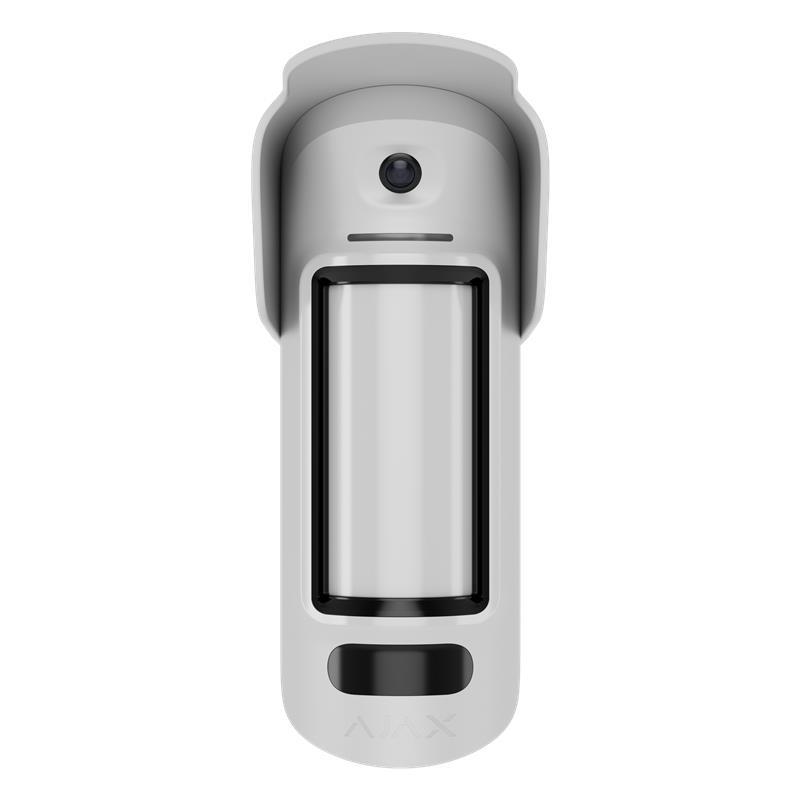

MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless infrared outdoor motion detector that detects motion and takes photos in case of an alarm, according to a scenario, or upon user request. It operates at a height of 2-4 meters and provides reliable sabotage protection thanks to block encryption with a floating key and Jeweller technology for signal transmission.
The detector supports photo verification of events, allowing you to receive series of photos when motion is detected. It is equipped with multiple sensitivity levels that can be configured in the Ajax app, as well as a false alarm protection system.
Features:
- Photo verification of events.
- Wide range up to 1700 m.
- Protection against sabotage and masking attempts.
- Support for automation scenarios.
- Additional power from an external source (8-24 V).
Specifications table:
| Characteristic | Value |
|---|---|
| Communication technology | Jeweller, Wings |
| Frequency range | 8660–8665 MHz, 8680–8686 MHz, others |
| Range | up to 1700 m |
| Motion detection range | up to 15 m |
| Motion detection angle | 90° horizontal |
| Sensitivity | 3 levels, configurable in Ajax |
| Camera | 320 × 240 pixels (default), 640 × 480 |
| Camera viewing angles | 115° horizontal, 84° vertical |
| IR illumination | For photos in low light conditions |
| Sabotage protection | Tamper, magnetometer, anti-masking |
| Power supply | 6 × CR123A, operating time up to 3 years |
| Operating temperature | from −25 °C to +60 °C |
| Humidity | up to 95% |
| Dimensions | 234 × 98 × 137 mm (without bracket) |
| Weight | 620 g (without bracket) |
| Protection class | IP55 |
| Warranty | 24 months |
