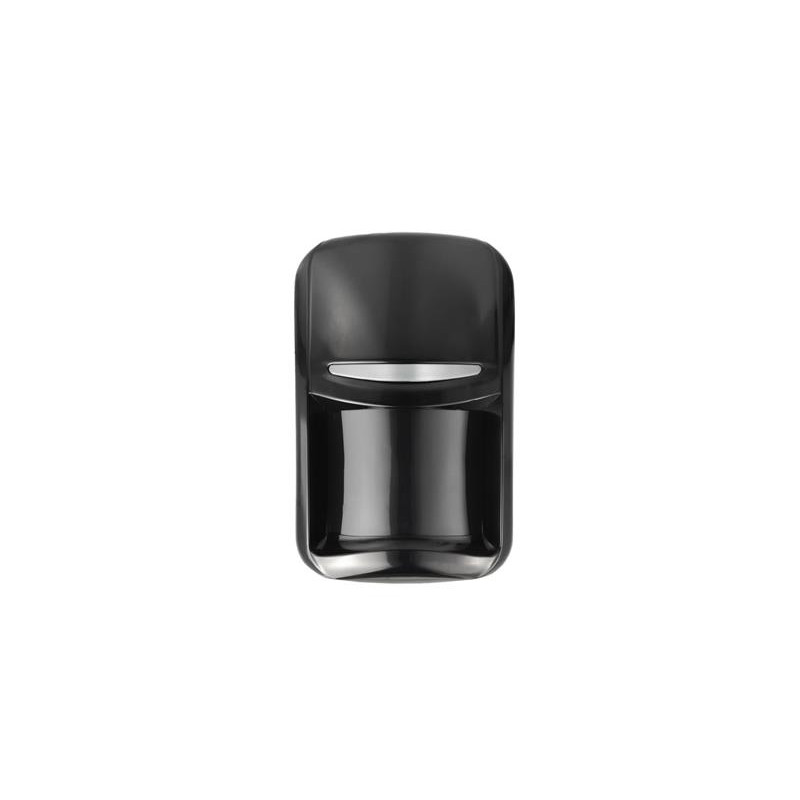

U?Prox PIR VB is a wireless passive infrared motion detector with a "vertical curtain" lens, which creates a narrow horizontal beam to protect the perimeter inside premises. Ideal for monitoring entrances, windows, and passages in apartments, offices, and warehouses.
Equipped with an efficient PIR sensor, digital signal processing, and temperature compensation. Light immunity of over 6500 Lux prevents false alarms in bright light. Detection range is up to 10 m, viewing angle is 7.5°.
Operates at 868–868.6 MHz, supports two-way secure communication with 256-bit encryption. Range is up to 4800 m. Firmware updates are OTA. Powered by one CR123A battery, with a service life of up to 5 years. Mounting is flat or corner (both brackets included). Operating temperature range: –10…+55?°C.
?? Specifications (no color)
| Characteristic | Value |
|---|---|
| Device type | Wireless IR motion detector with curtain lens |
| Detection range | up to 10 m |
| Viewing angle | 7.5° |
| Object speed | 0.3–3 m/s |
| Light immunity | >6500 Lux |
| Radio frequency | 868–868.6 MHz |
| Communication range | up to 4800 m |
| Encryption | Two-way, 256-bit |
| Power supply | 1×CR123A (3 V) |
| Battery life | up to 5 years |
| OTA updates | Yes |
| Operating temperature | –10…+55 °C |
| Humidity | up to 75 % |
| Protection class | II, EN 50131?1, Grade 2 |
| Dimensions | 90×60×34.35 mm |
| Dimensions with bracket | 90×60×41.6 mm |
| Weight | 150 g |
| Package contents | Detector, battery, 2 brackets, mounting kit, manual |
| Warranty | 2 years (excluding battery) |
