Accurate detection through steam, dust, and time

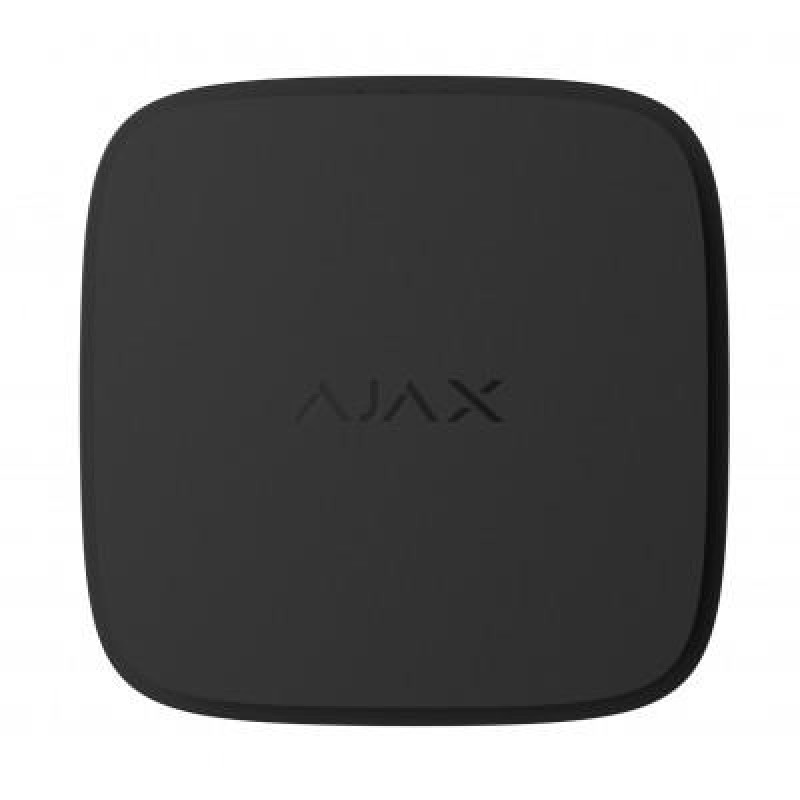

FireProtect 2 is a new generation device for instant fire detection. The unique smoke chamber does not require regular cleaning, the dual-spectrum sensor distinguishes smoke from steam, the thermistor quickly reacts to the combustion of synthetic materials, and smart software algorithms minimize the probability of false alarms. All this complies with modern fire safety standards. Thanks to its thoughtful design, installation, and in-app configuration, the sensor is installed simply and quickly.

Operating principle

Smoke detection: FireProtect 2 detects smoke and does not react to water vapor thanks to a bispectral optical sensor with blue and infrared LEDs. The LEDs emit light of different wavelengths, allowing the sensor to determine the size of volatile particles and react only to smoke. The sensor's smoke chamber is protected from dust, dirt, and insects. Even if dust gets in and settles in the smoke chamber, it does not threaten detection or impair its performance. The optical system is designed so that non-volatile particles or insects cannot simultaneously appear in two beams and trigger a false alarm.

Rapid temperature rise detection

Two built-in thermistors are responsible for reacting to temperature increases. The thermistors are located outside the sensor for faster threat detection. If the room temperature exceeds 64°C or rises at a rate of 10°C per minute or more, the sensor recognizes this as a rapid temperature rise and triggers an alarm. A temperature alarm can be triggered even if there is no smoke in the room.

Synchronized fire alarm for fire detectors

The sensor supports synchronized fire alarms. This function activates the built-in sirens of all Ajax fire detectors in the system when at least one of them is triggered. In case of fire, this allows as many people as possible on the premises to be notified. FireProtect 2 detectors have an improved synchronized alarm algorithm that activates the sirens of all fire detectors within 20 seconds. The function only works when the detectors are operating with a hub.

Operation without a hub

FireProtect 2 detectors can be used without connecting to an Ajax hub. In this case, the detector signals fire alarms with its built-in siren and LED indication but does not send notifications to the user's smartphone, Ajax Translator, or PRO Desktop.

Manual and automatic testing

FireProtect 2 regularly checks the status of batteries and sensors. If a malfunction is detected, the hub will instantly send a notification to users and the monitoring station. The detector itself will activate the corresponding light and sound notification with its built-in siren and LEDs. All sensor statuses can be checked at any time in the Ajax applications. The detector supports test mode. The mode is activated by pressing the front panel of the detector. The front panel is equipped with a mechanical button, so it can be pressed both by hand and with a mop. During the test, the built-in siren is activated, and the sensors are tested. This allows the installation engineer to test the device at any time, as well as demonstrate the sensor's light and sound indication to the client for different
types of alarms.

Jeweller communication technology

Jeweller is a radio protocol for fast and reliable two-way communication between the hub and connected devices. The protocol provides a wireless communication range with FireProtect 2 of up to 1700 meters. Such a communication range allows detectors to be installed even on very large objects. Jeweller is responsible for transmitting alarms and events. The radio protocol also ensures the activation of synchronized fire detector alarms within 20 seconds in a system with any number of FireProtect 2 devices. Thanks to Jeweller, users and the monitoring station can always see the current status of the detectors in Ajax applications.

Quick installation and connection

To install FireProtect 2, there is no need to disassemble the detector casing. Replaceable or non-replaceable batteries are installed, and the SmartBracket mount is removed from the detector without tools. The SmartBracket mounting panel has 90° of freedom. This allows the installation engineer to align the detector's position after installation. The detector connects to the Ajax security system in less than a minute. Simply open the Ajax application, scan the QR code, and add the device to a room and security group.

Specifications

• Manufacturer: Ajax

• Brand: Ajax

• Sensor type: Wireless

• Detector type: Combined detector

• Model: FireProtect 2 RB (Heat/Smoke)

• Connection method to control panel: Wireless

• Wireless signal transmission range: 1700 m

• Gas detected: No

• Compatibility: Hub Plus, Hub 2 (2G), Hub 2 (4G), Hub 2 Plus, Hub Hybrid (2G), Hub Hybrid (4G), ReX, ReX 2

• Communication

  Jeweller communication technology - Proprietary wireless technology for transmitting alarm and event signals.

  Functions:

  - Two-way communication.
  - Device spoofing protection.
  - Block encryption with a floating key.
  - Instant notifications.
  - Remote configuration via Ajax.
  Radio frequency bands: 866.0 – 866.5 MHz
  Maximum effective radiated power (ERP): up to 20 mW. Automatic power adjustment to reduce energy consumption and radio interference.

  Radio signal modulation: GFSK

  Radio communication range: up to 1700 m. Between the detector and the hub (or radio signal repeater) in the absence of obstacles.

  Radio communication encryption: All stored and transmitted data are protected by block encryption with a floating key.

  Radio frequency hopping: To prevent radio interference and jamming.

• Sensitive elements: Smoke sensor, Temperature sensor

• Smoke detection

  Sensitive element - optical dual-spectrum sensor. Recognizes smoke by particle size in the air.

  False alarm protection: Does not react to water vapor.

  Patented smoke chamber: Protects the smoke sensor from dust, dirt, and insects.

• Hazardous temperature detection

  Sensitive element - according to the requirements for Class A1 temperature sensors. Requirements of EN 54-5 and BS 5446-2 standards.

  Temperature level alarm: at temperatures above 64°C

  Rapid temperature rise alarm: when the temperature rises by more than 10°C in 1 minute (or faster)

• Sabotage protection

  Tamper against opening: Notifies of attempts to detach the sensor from the surface or remove it from the mounting panel.
  Protection against floor: Device authentication

  Communication loss detection: within 15 minutes. The time to detect communication loss depends on the settings for the number of undelivered data packets (specified in Jeweller or Jeweller/Fibra settings). The polling period is fixed — 300 seconds.

• Additional features

  Built-in siren: Volume 85 dB at a distance of 3 meters. Audible alarm notification. Active until the cause of the trigger is eliminated or until the user disables the notification.

  Synchronized fire alarm for fire detectors: Fire detectors in the system activate their built-in sirens as soon as at least one of the detectors registers an alarm. The synchronized alarm is activated within one "hub — detector" polling interval, but no later than 20 seconds.

  LED indication

  Green — power indication. The LED indicator on the device body flashes once every 56 seconds. The indication complies with the requirements of the EN 50291 standard.

  Yellow — malfunction indication. The LED indicator on the device body flashes when malfunctions are detected. For example, in case of battery discharge, smoke chamber contamination, or end of service life.

  Red — fire alarm indication. The LED indicator on the device body flashes when the sensor detects a fire alarm.

  Button on the front panel of the sensor: In normal mode, pressing it starts the smoke chamber test. During an alarm or malfunction, pressing it turns off the sensor's audible notification.

• Operating temperature range: 0 ° C - +50 ° C

• Operating humidity: Not more than 80%

• Protection class: IP20

• Power supply: 2 x CR123A (Battery AJAX CR123A 3V (000015276); Panasonic lithium battery CR123 blister, 1 pc. (CR-123AL/1BP); Philips lithium battery CR123A blister, 1 pc (CR123A/01B); VARTA lithium battery CR123 blister, 1 pc. (06205301401) )

• Dimensions: 123.7 × 123.7 × 44.7 mm

• Weight: 197 g
