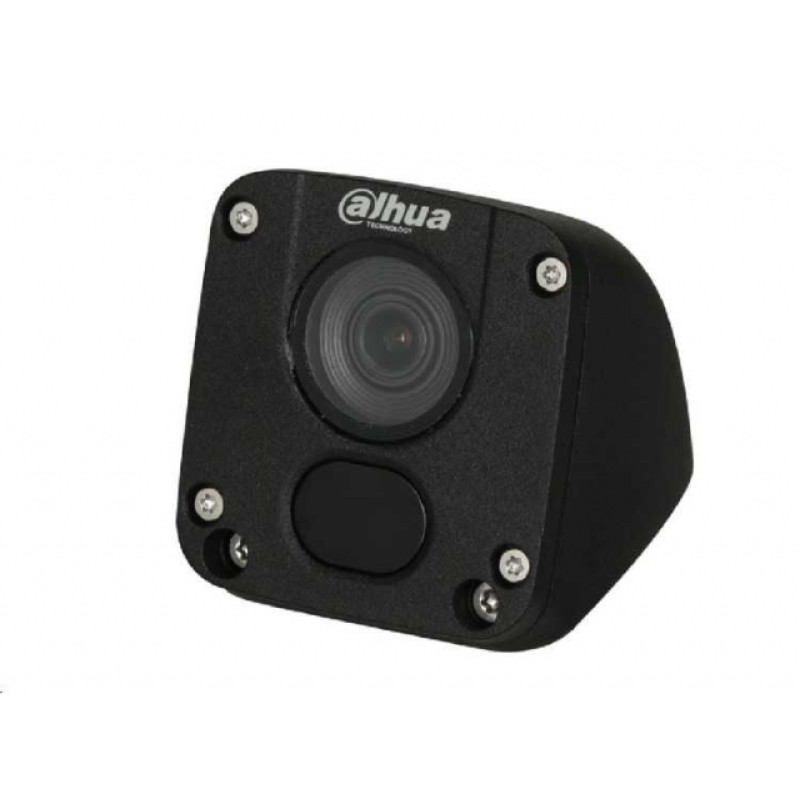

Dahua DH-IPC-MW1230DP-HM12. 2MP Mobile IP Camera

Dahua DH-IPC-MW1230DP-HM12 — 2MP Mobile IP Video Camera

Manufacturer: Dahua. This compact 2MP mobile IP video camera is designed for reliable video surveillance in various operating conditions: outdoors, indoors, and on mobile objects. The DH-IPC-MW1230DP-HM12 model combines high image quality, effective night vision, and dust and moisture protection standards, making it a versatile solution for video surveillance systems.

Key Features and Benefits

The camera is equipped with a 1/2.7" progressive scan CMOS sensor, providing a clear image at 2 MP resolution. Modern video codecs H.265+/H.265/H.264+/H.264 are supported to reduce network load and save storage space. Infrared illumination allows for footage in complete darkness (0 Lux with IR), while sensitivity of 0.02 Lux/F2.1 (Color, 1/3s, 30IRE) and 0.2 Lux/F2.1 (Color, 1/30s, 30IRE) ensures an acceptable image in low-light conditions.

• Resolution: 2 MP (Full HD)
• Sensor: 1/2.7" progressive scan CMOS
• Codecs: H.265+/H.265/H.264+/H.264
• Stream and Frame Rate: 1080p/720p — 25 fps
• Lens: 2.8 mm (optional 3.6 mm, 6 mm)
• Light Sensitivity: 0.02 Lux/F2.1 (Color,1/3s,30IRE); 0.2 Lux/F2.1 (Color,1/30s,30IRE); 0 Lux with IR
• IR Illumination: Yes, for operation in complete darkness
• Image Functions: DWDR, 3DNR, AWB, AGC, BLC
• Protection: IP67, IP6K9K
• Operating Temperature Range: -30 °C to +60 °C
• Dimensions: 80.2 x 65.8 x 59.2 mm
• Weight: 280 g

The DH-IPC-MW1230DP-HM12 model supports several lens options — a basic 2.8 mm, as well as optional 3.6 mm and 6 mm, allowing you to choose the optimal viewing angle for your project. The camera transmits video stream in 1080p or 720p quality at 25 fps, which is sufficient for recognizing outlines and movement at medium distances. Thanks to H.265+ support, the recording volume is significantly reduced while maintaining quality, saving archive space and network bandwidth.

Built-in image processing algorithms — DWDR for extended dynamic range, 3DNR for noise reduction in night footage, AWB for automatic white balance, AGC for automatic gain control, and BLC for backlight compensation — ensure high-quality video stream in challenging lighting conditions.

The device's practicality is highlighted by high protection ratings IP67 and IP6K9K, allowing the camera to be operated in aggressive environments, as well as a wide temperature range from -30 °C to +60 °C. Compact dimensions of 80.2 x 65.8 x 59.2 mm and a low weight of 280 g facilitate mounting on various types of brackets and mobile platforms.

This model is ideal for applications in video surveillance systems for enterprises, vehicles, retail premises, and facilities with increased protection requirements. If you need a reliable solution with high-quality image transmission and economical archiving — the Dahua DH-IPC-MW1230DP-HM12 meets these requirements.
