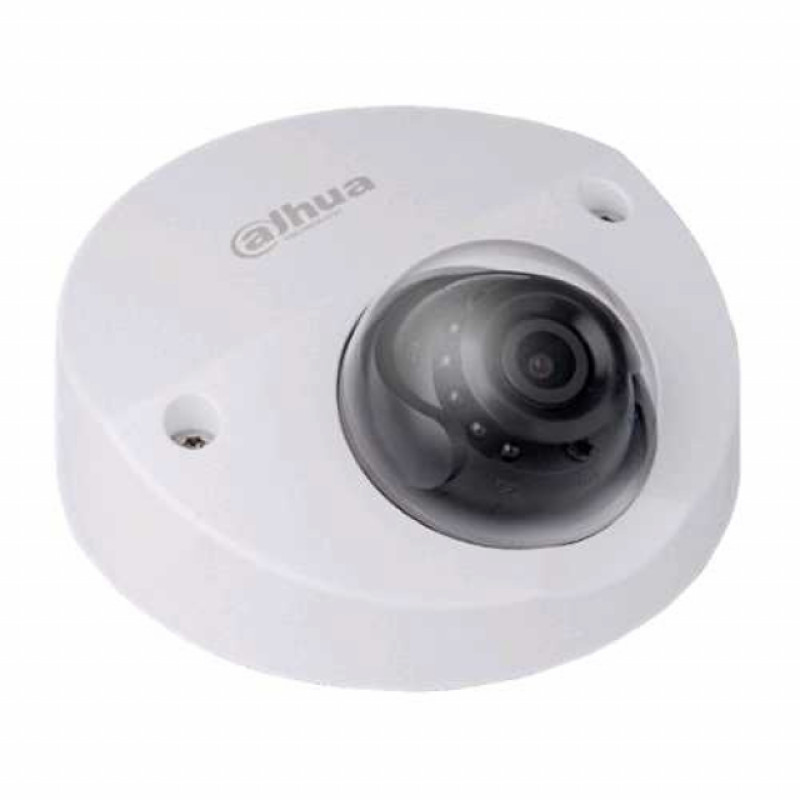

Dahua DH-IPC-HDBW4220FP-AS (2.8 mm) — 2 MP Dome IP Camera
The professional 2 MP (1080p) dome IP camera Dahua DH-IPC-HDBW4220FP-AS is designed for reliable 24/7 video surveillance. It features a 1/2.8” progressive scan CMOS sensor, supports day/night mode with ICR, and provides high-quality images using H.264/H.264B/H.264H and MJPEG codecs. The camera is ideal for video surveillance systems in offices, stores, warehouses, and facilities requiring enhanced protection.
Key advantages: compact dome design, wide 106° viewing angle at a 2.8 mm focal length, high sensitivity of 0.01 Lux at F2.0 (color mode), infrared illumination up to 20 m for quality night vision, and IP66 and IK10 rated housing protection for operation in harsh conditions.
Main Features and Functions
- Brand: Dahua
- Model: DH-IPC-HDBW4220FP-AS
- Resolution: 2 MP (1080p), 1080p/720p stream at 25 fps
- Sensor: 1/2.8” progressive scan CMOS
- Lens: f=2.8 mm, 106° viewing angle
- Codecs: H.264/H.264B/H.264H/MJPEG
- Sensitivity: 0.01 Lux/F2.0 (color)
- IR illumination: up to 20 m
- Audio: 1 input / 1 output
- Alarm: 1 input / 1 output
- Smart functions: built-in intelligent video analytics functions
- Housing protection: IP66 (vandal-proof and dust/water protection), IK10
- Power: DC12V, 5 W; PoE support (802.3af)
- Operating temperature: -40°С to +60°С
- Dimensions: Ø106 x 50 mm
- Weight: 350 g
- Category: Electronics > Video Surveillance > Video Cameras
| Parameter | Value |
|---|---|
| Type | Dome IP Camera |
| Resolution | 2 MP (1080p) |
| Sensor | 1/2.8” progressive scan CMOS |
| Lens | f=2.8 mm (106° viewing angle) |
| Night Vision | IR up to 20 m |
| Protection | IP66, IK10 |
| Power | DC12V/5W, PoE (802.3af) |
| Operating Temperature | -40°С to +60°С |
| Dimensions / Weight | Ø106 x 50 mm / 350 g |
This Dahua camera combines a stable hardware foundation with a wide range of features for modern video surveillance systems: multiple video codecs for traffic and storage optimization, audio support, alarm signals, and smart analytics. Thanks to its IP66 protected housing and IK10 impact resistance, the device withstands outdoor conditions and vandalism, making it a reliable choice for both outdoor and indoor use. PoE support simplifies installation by allowing power transmission over the network cable.
Order the Dahua DH-IPC-HDBW4220FP-AS if you need a compact yet functional 2 MP camera with a wide viewing angle, good night vision, and a high degree of housing protection.
