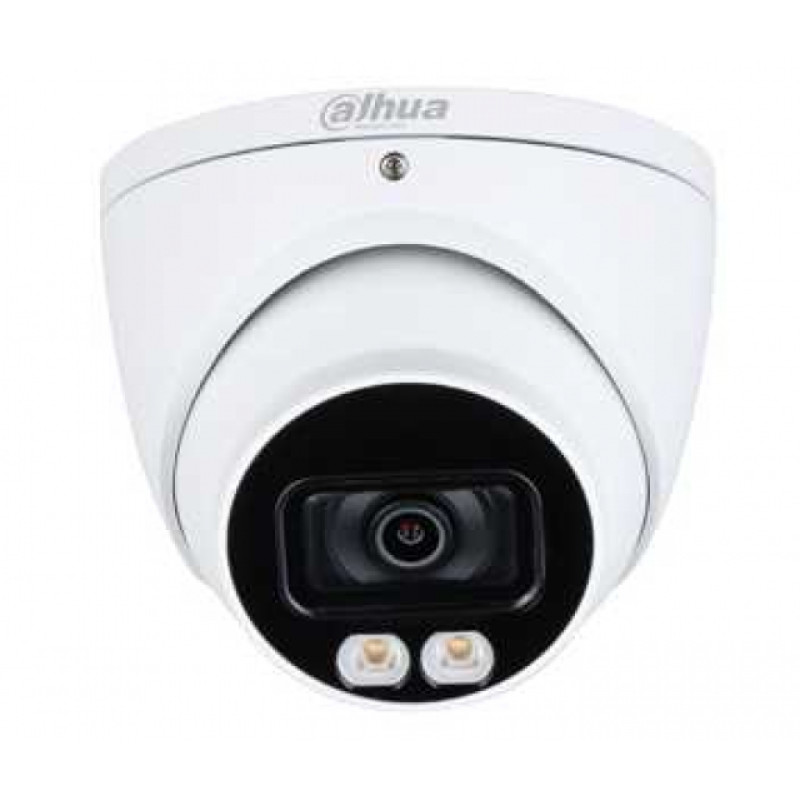

Dahua DH-HAC-HDW1509TP-A-LED (3.6 mm). 5MP HDCVI Eyeball Camera with LED Light
Dahua DH-HAC-HDW1509TP-A-LED (3.6 mm) Review — 5MP HDCVI Video Camera with Illumination
Brand: Dahua. Model: DH-HAC-HDW1509TP-A-LED (3.6 mm). This multi-format HDCVI video camera is designed for reliable video surveillance in both residential and commercial projects where clear detail and additional illumination in the dark are required.
Key Features
The camera is equipped with a 1/2.7" CMOS sensor, allowing for high-quality images with 5MP resolution. Thanks to the fixed 3.6 mm lens, the viewing angle is approximately 83°. The frame rate for 5MP mode is up to 20 frames per second, ensuring smooth motion capture when objects are detected.
- Type: Multi-format HDCVI video camera
- Resolution: 5 MP
- Sensor: 1/2.7" CMOS
- Lens: Fixed 3.6 mm (viewing angle ≈ 83°)
- Frame rate: 5MP — 20 fps
- Built-in microphone for audio recording
- IR illumination for night vision up to 40 m
- Housing protection: IP67
- Power supply: DC 12V, consumption 3.1 W
- Dimensions: 97x97x86 mm, weight: 220 g
Image Functionality
The camera supports a set of useful functions to improve video quality: DWDR for extended dynamic range, day/night (ICR) mode for automatic mode switching based on lighting, 2D-DNR for digital noise reduction, AGC (automatic gain control), BLC (backlight compensation), and HLC for suppressing bright glare. These technologies ensure clear and high-contrast video in challenging lighting conditions.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Dahua DH-HAC-HDW1509TP-A-LED (3.6 mm) |
| Type | Multi-format HDCVI |
| Sensor | 1/2.7" CMOS |
| Resolution | 5 MP |
| Lens | 3.6 mm, viewing angle 83° |
| Frame rate | 5MP — 20 fps |
| Night vision | IR illumination up to 40 m |
| Audio | Built-in microphone |
| Functions | DWDR, day/night (ICR), 2D-DNR, AGC, BLC, HLC |
| Protection | IP67 |
| Power supply | DC 12V, 3.1 W |
| Dimensions | 97x97x86 mm |
| Weight | 220 g |
This camera is an excellent choice for those who need high-quality video surveillance with long-range night vision and robust protection against moisture and dust. Its compact dimensions and moderate power consumption make it convenient for installation on building facades, in retail spaces, and warehouses. Thanks to HDCVI standard support, it easily integrates into existing Dahua video surveillance systems.
The specified technical parameters and functionalities fully correspond to the manufacturer's description and will help you make an informed decision when choosing a camera for specific control and security tasks.
