Dahua DH-IPC-HDW2230TP-AS-S2 (2.8 mm). 2 MP IP camera with built-in microphone
Dahua DH-IPC-HDW2230TP-AS-S2 (2.8 mm). 2 MP IP camera with built-in microphone

Dahua DH-IPC-HDW2230TP-AS-S2 (2.8 mm). 2 MP IP camera with built-in microphone

0 Leave a review
Product Code: FA58-46971-58
3 858 грн.
Buy this product in 1 click:
Main specifications
Model: DH-IPC-HDW2230TP-AS-S2 (2.8 mm)
All specifications
We will deliver this product:
Payment
Description

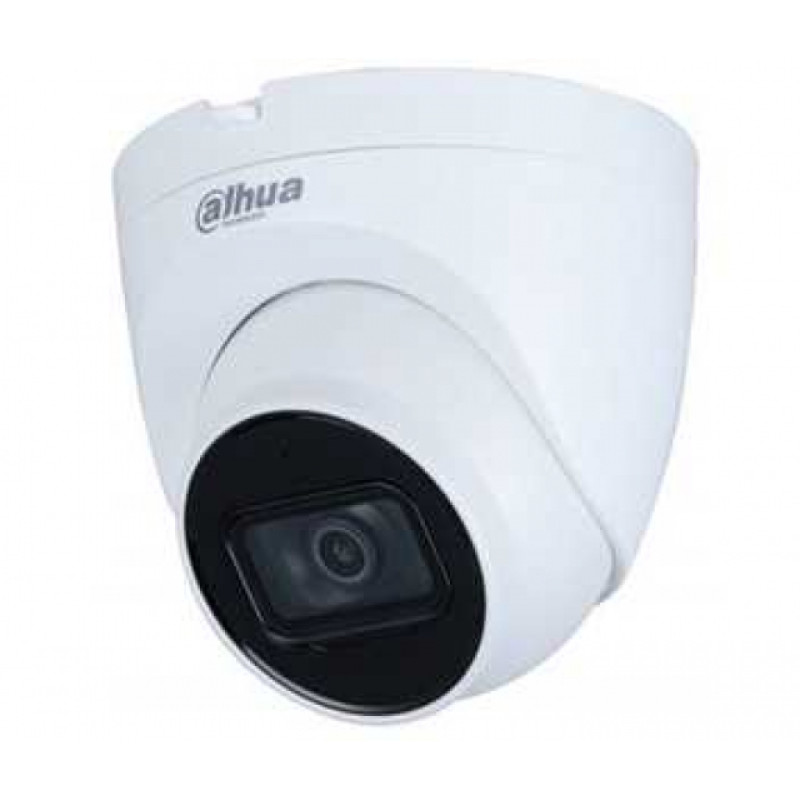

Dahua DH-IPC-HDW2230TP-AS-S2 (2.8 mm) — 2 MP IP video camera with built-in microphone

A professional video camera from the Dahua brand in the Electronics > Video Surveillance > Video Cameras category. The DH-IPC-HDW2230TP-AS-S2 model is designed for reliable 24/7 surveillance in offices, stores, and outdoors, where a high-quality two-megapixel (2 MP) image and Full HD recording are required.

This camera is equipped with a 1/2.7" Progressive CMOS sensor, which provides a clear image under varying lighting conditions. Modern video compression formats are supported: H.265, H.264, H.264B, MJPEG, allowing for efficient archive storage and network bandwidth optimization. The lens is fixed with a focal length of f = 2.8 mm and a viewing angle of approximately 110°, which allows monitoring a wide area from a single point.

The camera's sensitivity is 0.005 Lux/F1.6 (color), ensuring operation in low light, and at night, a mechanical IR filter (ICR) and infrared illumination with a range of up to 30 meters are activated. Recording is possible in a stable mode of 25 fps @ 1080p.

Key features and benefits

  • DWDR (Digital Wide Dynamic Range) — better detail in high-contrast scenes;
  • 3D-DNR (3D Digital Noise Reduction) — cleaner frames in poor lighting;
  • BLC (Backlight Compensation) — improved visibility of objects against bright light;
  • Day/Night (ICR) — automatic mode switching for optimal quality;
  • IP67 rated housing protection — withstands dust and precipitation, suitable for outdoor use;
  • Power: DC 12V / 5W or PoE (802.3af) — convenient connection and installation.

Technical specifications

ParameterValue
ModelDahua DH-IPC-HDW2230TP-AS-S2
Resolution2 MP (1080p)
Sensor1/2.7" Progressive CMOS
CompressionH.265, H.264, H.264B, MJPEG
LensFixed f = 2.8 mm (angle ~110°)
Sensitivity0.005 Lux / F1.6 (color)
Recording25 fps @ 1080p
FunctionsDWDR, 3D-DNR, BLC, Day/Night (ICR)
IR illuminationUp to 30 m
ProtectionIP67
PowerDC 12V / 5W, PoE (802.3af)
DimensionsФ 100.9 x 109.9 mm
Weight390 g

This is a versatile solution for those looking for a reliable outdoor or indoor camera with good image quality, infrared illumination, and weather protection. The Dahua model combines ease of installation (PoE support), energy efficiency, and an extended set of software features to enhance video surveillance quality.
