Arsenal Patriota Level 4 Lightweight Armor Plate BZ (50007Armox)

Brand: Specprom
Category: Military Gear > Armor Plates > Level 4 Protection

The "Lightweight BZ (50007Armox)" model is a light and reliable armor plate designed for active field operations: the plate weighs only 3.1 kg, providing an optimal balance between mobility and protection. It is made from world-class materials and is certified according to DSTU 8782:2018 in Level 4, with corresponding test protocols.

Materials and Construction

The primary armor steel is Swedish SSAB Armox Advance steel with a hardness of 58–63 HRC and a nominal thickness of 5 mm. Such steel, combined with proper heat treatment, provides high resistance to armor-piercing hits: the plate withstands at least one shot from an AKM 7.62×39 with a 57-BZ-231 bullet in laboratory conditions.

Anti-fragmentation and Damping Solutions

The front surface of the plate is covered with Ukrainian-made ballistic felt, laminated with a PVC layer for moisture protection. The felt is precisely cut to the plate's dimensions and pressed for several hours to ensure reliable adhesion and prevent delamination after multiple impacts. The side edging is made with a density of 800 kg/m³ and pressed with the plate to minimize lateral core exit when hit at the plate's edge. Behind the plate, an 8 mm thick EVA damper with a density of 80 kg/m³ is installed, which hardly deforms over time and significantly reduces the risk of behind-armor blunt trauma compared to standard dampers made of foamed polyethylene or rubber (30–35 kg/m³).

Dimensions and Shape

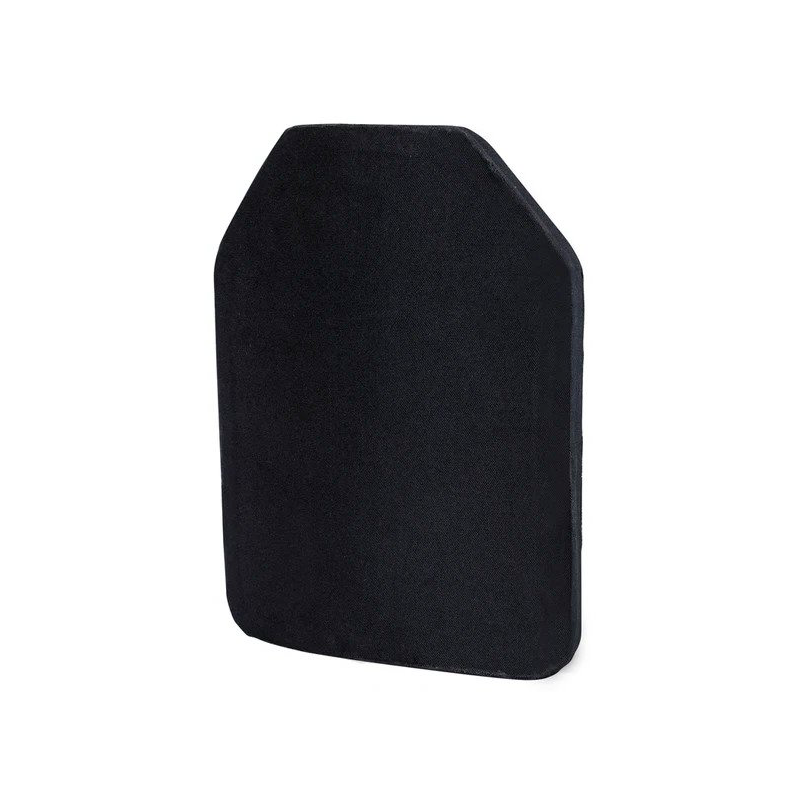

The standard size of the armor plate is 25×30 cm with an anatomical curve across the width, conforming to the shape of the chest. Cut corners ensure freedom of movement and convenience when using firearms. The total thickness of the plate with full coverage is 21 mm.

Certification and Testing

Each armor plate has a unique serial number and production date. Batches undergo testing in a certified laboratory for compliance with DSTU 8782:2018 under normal conditions. Based on the results, a batch certificate valid for 6 months from the issue date and a test protocol are issued, which can be found on the product page.

Resistance Indicators According to DSTU Level 4 Protection

• SVD rifle, 7.62-mm cartridge 57-N-323s (LPS), bullet speed — 850±15 m/s.
• AK-74 assault rifle, 5.45 mm cartridge, 7N10s (PP) bullet, bullet speed — 910±15 m/s.

Note: Since 1989, the cartridge with the ST-M2 bullet (core hardness 65 HRC) has been produced instead of LPS, which is an analogue of the B-32 bullet for Level 6 protection.

Additionally Withstands

• AKM 7.62×39, 57-BZ-231 bullet (armor-piercing incendiary).
• AK-74 assault rifle, 5.45 mm cartridge, 7N6M bullet.

Advantages over Ceramic Plates

Unlike ceramics, which are often single-use and require replacement after the first hit, an armor steel plate can withstand multiple shots and does not require immediate replacement. Armor steel distributes bullet energy across its surface, reducing localized behind-armor deformation, which helps lower the risk of rib fractures and internal organ damage. This plate is particularly suitable for those seeking reliable protection with moderate weight and high operational durability.

The "Lightweight BZ (50007Armox)" armor plate from Specprom — the choice for professionals and those who need a combination of mobility and a high level of protection, made from SSAB Armox materials and certified according to Ukrainian standards.
