UPS+Battery Backup Power Kit for Electrical Equipment and Emergency Lighting with External Battery

The LogicPower UPS 15000W + Lithium (LiFePO4) Battery 48384 Wh backup power kit has been developed and put into operation to provide uninterrupted power supply for electric gas boilers, video surveillance systems, computer equipment, and other devices operating 24/7/365. The kit can be used as an uninterruptible power supply for a bomb shelter.

The pure sine wave uninterruptible power supply with a power of [Мощность, VA/W] VA/W performs 2 main functions: voltage stabilization (input - [Диапазон входного напряжения, V]V, output - 220 / 380; 230 / 400V) and conversion of DC from the battery to an AC voltage source of 220V. The UPS uninterruptible power system is microprocessor-controlled. The battery provides power in backup mode.

The uninterruptible power system for an apartment - the UPS+Battery kit - is equipped with a multi-gel AGM battery.

Connection Diagram for the UPS + Battery Backup Power Kit

220V power grid – uninterruptible power supply with external battery – power consumer.

• UPS connection to the grid – standard Euro plug
• Battery connection type – terminals
• Power consumer connection type – standard Euro socket

The backup power kit is installed and connected permanently. All functions, from voltage stabilization to battery charging, are performed automatically.

ATTENTION! If your connection scheme includes equipment with high inrush currents, the power load reserve factor will increase.

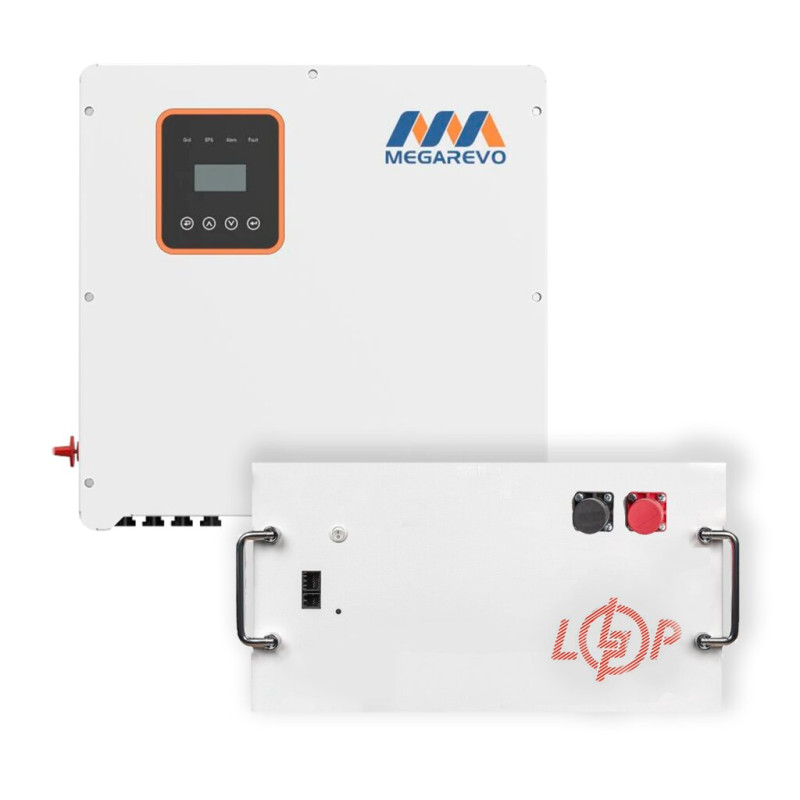

The kit includes:

• Hybrid three-phase inverter Megarevo for LP R15KH3 (15 kW, 150-550 V) - 1 pc.

• Battery LP LiFePO4 Battery HVM 153.6V 315Ah (48384 Wh) BMS 125A AB Lrack white
