Product Code: FA94-39946-94
106 920 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Active up to 5A
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 14336
Cell connection diagram: 16S1P
All specifications
We will deliver this product:
Payment
Description

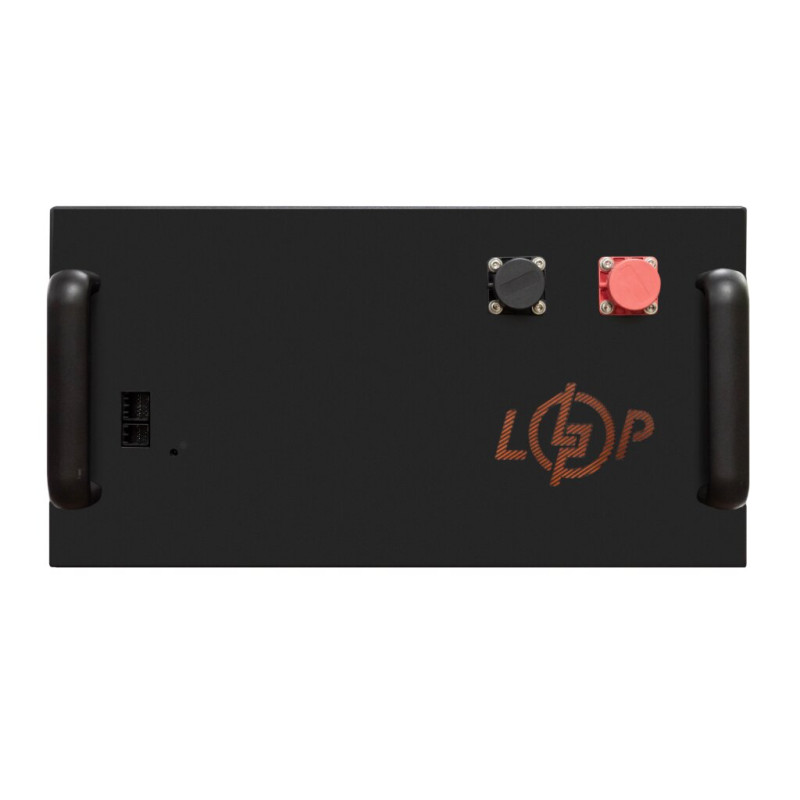

High-voltage batteries, rack-mounted. Parallel connection with other similar units is possible to increase the total system capacity.

Where are high-voltage battery packs used?

In solar power plants - for accumulating and storing energy generated by solar panels. Installing these batteries for solar panels minimizes dependence on the central grid and reduces electricity costs. Compatible with most inverters and charge controllers.

In backup and autonomous power supply systems, they provide uninterrupted power to critical facilities in case of power outages. Used in private homes, medical institutions, and telecommunication systems. High switching speed ensures continuous equipment operation.

In server rooms and data centers (DPCs), they protect equipment from power grid interruptions, preventing data loss and downtime. Supports long-term UPS operation under high load.

In industrial and commercial energy storage systems for smoothing peak loads and reducing electricity costs. Suitable for use in manufacturing, shopping centers, and office buildings. Ensures stable operation of energy-intensive equipment.

Advantages of LiFePO4 LogicPower:

  • Ukrainian production - reliability and quality control.
  • Durability - up to 7000 charge/discharge cycles (80% residual capacity).
  • 60-month warranty - confidence in long-term operation.
  • Fast charging - high operational efficiency and the ability to use without waiting for a full charge.
  • Safety - resistance to overheating and complete fire safety.
  • Wide temperature range - stable operation in various conditions.

An effective solution for modern powerful energy systems with high reliability requirements!

Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Active up to 5A
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 14336
Cell connection diagram 16S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 54.4
Discharge operating temperature, °C -4 ~ +140
Full charge voltage, V 58.4
Height, mm ** 232
Housing material metal
Length, mm ** 682
Maximum charge current, A 140
Maximum discharge current, A 160
Minimum voltage, V 43.2
Mounting type 19" Rack
Network Connection and Remote Monitoring LAN/RS485/CAN
Nominal capacity, Ah 280
Nominal charging current, A 125
Nominal discharge current, A 140
Nominal voltage, V 51.2
Number of battery packs 1
Number of cycles 7000
Overall dimensions (LxWxH), mm * 725*445*230
Protection level IP20
Recommended low voltage cutoff, V 44.8
Reconnecting charge voltage, V 56
Reconnection discharge voltage, V 49.6
Terminal type T11 (for M8 bolt)
Type LiFePO4
Warranty, months 60
Weight, kg 111.5
Width, mm ** 442
