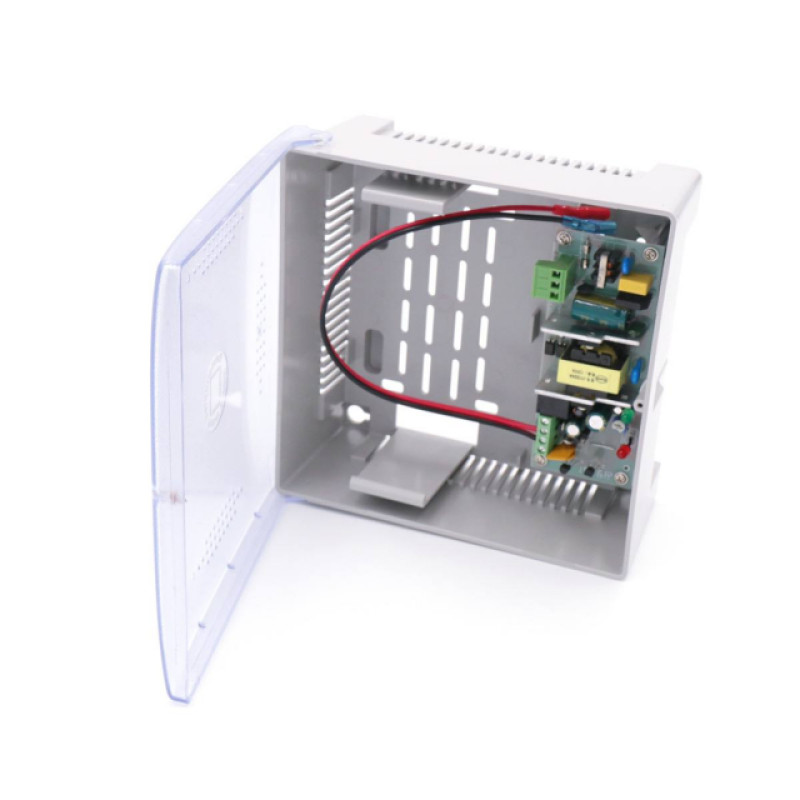

U-tex 1205A-FZ power uninterruptible power supply unit is a pulsed stabilized 12V 5A UPS in a plastic enclosure from the U-tex brand. The name indicates a charge current of 0.9A; however, the technical specifications state a maximum battery charge current of 0.6A — these figures are provided according to manufacturer data and technical documentation.

The device's enclosure allows for the installation of a sealed, maintenance-free battery with a capacity of up to 7 Ah (12V battery purchased separately). The device provides continuous power to 12V nominal voltage consumers such as CCTV cameras, DVR and NVR video recorders, network equipment, security alarms, electronic locks, and other equipment with similar power requirements.

Key Features of U-Tex ZTU 1205A-FZ Power 12V 5A 60W

The device automatically switches to backup power from the connected battery when the mains power is disconnected, ensures optimal battery charging when mains voltage is present, and protects the battery from deep discharge. The enclosure provides space for a 12V 7Ah battery; the enclosure is made of plastic with dimensions of 190 x 185 x 85 mm and supports wall mounting. The device comes with a 12-month warranty.

Technical Specifications

• Input voltage: 100 - 240 V AC (AC 100 - 240V);
• Number of outputs: 1;
• Output voltage regulation (built-in potentiometer): 12.5 V ~ 13.8 V (DC 12.5V - 13.8V);
• Output current: 5 A;
• Power: 60 W (U-Tex ZTU 1205A-FZ);
• Terminal connection for consumers and battery;
• Short-circuit protection;
• Automatic switch to backup power from the battery (АКБ) when mains power is disconnected;
• Protection against deep discharge of the battery and optimal battery charging when mains voltage is present;
• Maximum battery charge current: 0.6 A (in technical specifications);
• Product name indicates charge current: 0.9 A;
• Electronic output overcurrent protection with automatic recovery after overload is cleared;
• Output protection against impulse overvoltages caused by lightning discharges and network switching;
• Automatic restoration of output voltage after the cause of the short circuit is cleared;
• Light indication of operating modes (LEDs): mains voltage presence, output voltage presence;
• Space for 12V 7Ah battery;
• Enclosure material: plastic; enclosure dimensions: 190 x 185 x 85 mm;
• Wall mounting capability;
• Warranty: 12 months.

Package Contents

• U-Tex ZTU 1205A-FZ Power UPS — 1 pc.;
• Cable set — 1 pc.;

This uninterruptible power supply is suitable for ensuring stable operation of 12V equipment in unstable network conditions or during power outages. When purchasing, please note that a 12V 7Ah battery must be purchased separately; it is recommended to use sealed, maintenance-free batteries of appropriate capacity.
