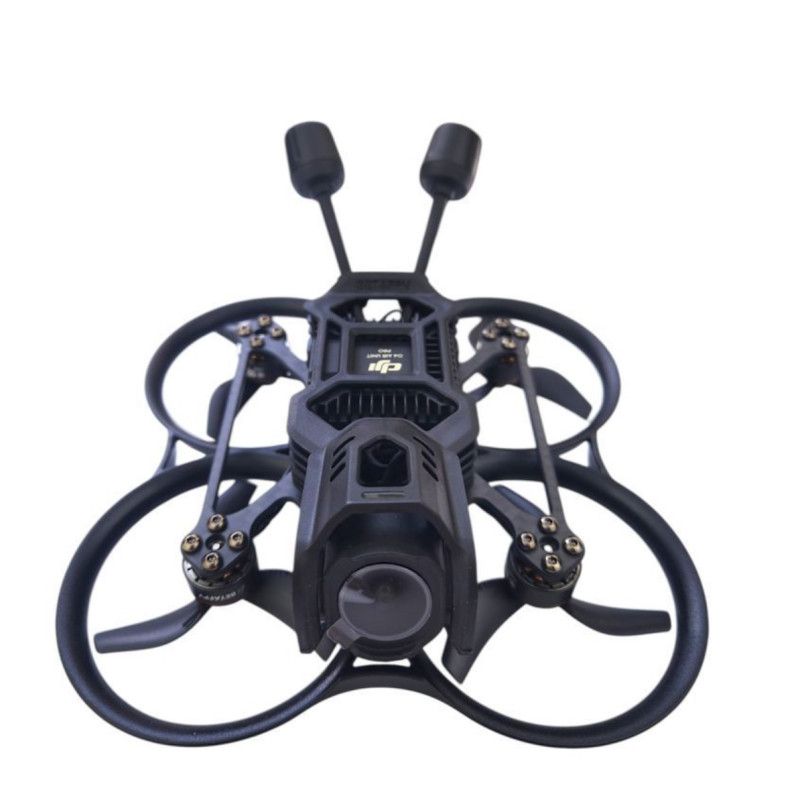

Pavo20 Pro — is a lightweight yet powerful cinewhoop, adapted for the DJI O4 Air Unit Pro. It combines high stability with a clear video image, ND filter support, and quick, solder-free HD module installation. With a weight of only 100g, a thrust-to-weight ratio of >5:1, and a long flight time of up to 6 min 40 s, this drone is suitable for FPV video shooting even in challenging conditions.
The Pavo20 Pro O4 Pro is a cinewhoop that needs no introduction: just take off and shoot. It will withstand aggressive freestyle, deliver stable 4K footage, all while weighing under 150 grams.
Camera: Wide Angle and Stable Image
The Pavo20 Pro is equipped with the DJI O4 Air Unit Pro — the latest generation digital HD system with a camera capable of shooting video at up to 4K resolution at 60 frames per second. Thanks to its wide-angle lens, it covers more space in the frame, and the narrow tilt angle is fixed using a dual mount with smooth adjustment (0–40°).
The signal is transmitted with low latency and high stability due to optimized antenna placement at a 30° angle, which reduces the likelihood of losing connection even during maneuvers.
Frame and Construction
The Pavo20 Pro frame is made of impact-resistant plastic (PA12). The wheelbase is 93.7 mm, fully prepared for installation: it has copper inserts, and HD VTX mounting requires no additional modifications. The aerodynamic shape and thick ducted channels provide up to an 11% thrust increase.
To protect against vibrations and image shake, the camera is installed via a special O4 Pro mount with four rubber dampers, which reduces the impact of high-frequency oscillations on the built-in gyroscope. This design minimizes "jello" effect and distortions even during sharp turns or crashes. In addition, the mount allows for quick changing of ND filters without additional tools — convenient for adjusting to lighting conditions on location.
Electronics
Flight controller — F4 2–3S 20A AIO FC V1. It has an integrated 9V 2A BEC for stable power to the DJI module even when the battery sags. Peak ESC current — up to 25A. A black box (16MB), GPS support, and external receivers (ELRS, SBUS) are provided. Updated pads and a Type-C connector simplify maintenance.
Motors
The power plant is built on LAVA 1104 7200KV motors, which, together with Gemfan 2218 (2.2") 3-blade propellers, provide linear thrust with quick response — for freestyle. Powered by a 3S 550mAh battery, it achieves a thrust-to-weight ratio of over 5:1 and a flight duration of up to 6 min 40 s. Designed for dynamic turns and quick altitude recovery.
Key Advantages:
- Full compatibility with DJI O4 Pro without soldering: everything connects via a 6-pin cable and is secured in the standard mount.
- Ready to fly after binding and minimal Betaflight setup.
- Quiet, stable camera operation: rubber dampers, properly spaced mounts, no "jello" effect.
- Large current and BEC reserve — protection against overheating or power sag under load.
- Optimized for light filtering: supports ND/UV filters for O4 Pro right out of the box.
- Improved aerodynamics: thrust boost up to 11% compared to predecessors.
1 × Pavo20 Pro
1 × LED Strip
4 × Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
1 × SH1.0 6Pin 100mm Cable
1 × 4Pin Adapter Cable
1 × Type-C Adapter Board
