RTK ArduSimple Lightweight helical GNSS Tripleband + L-band Antenna (IP67)
Lightweight helical GNSS Tripleband + L-band Antenna (IP67)

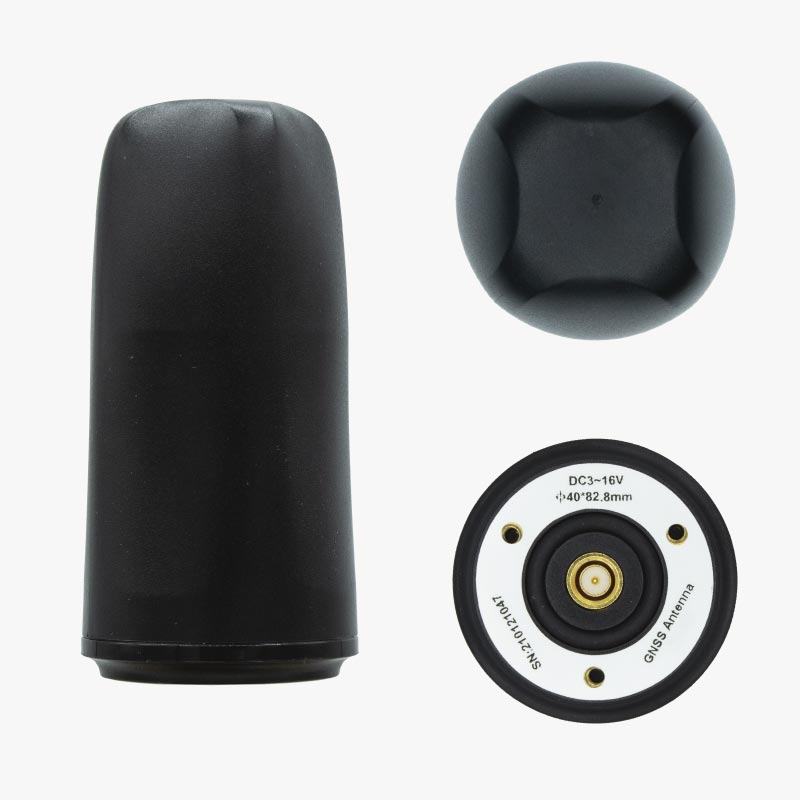

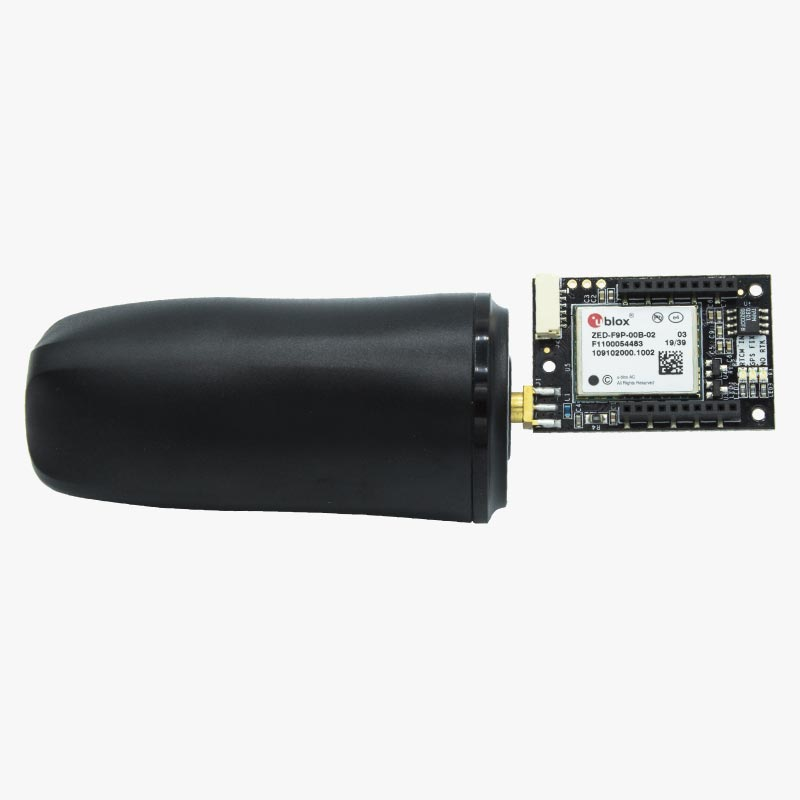

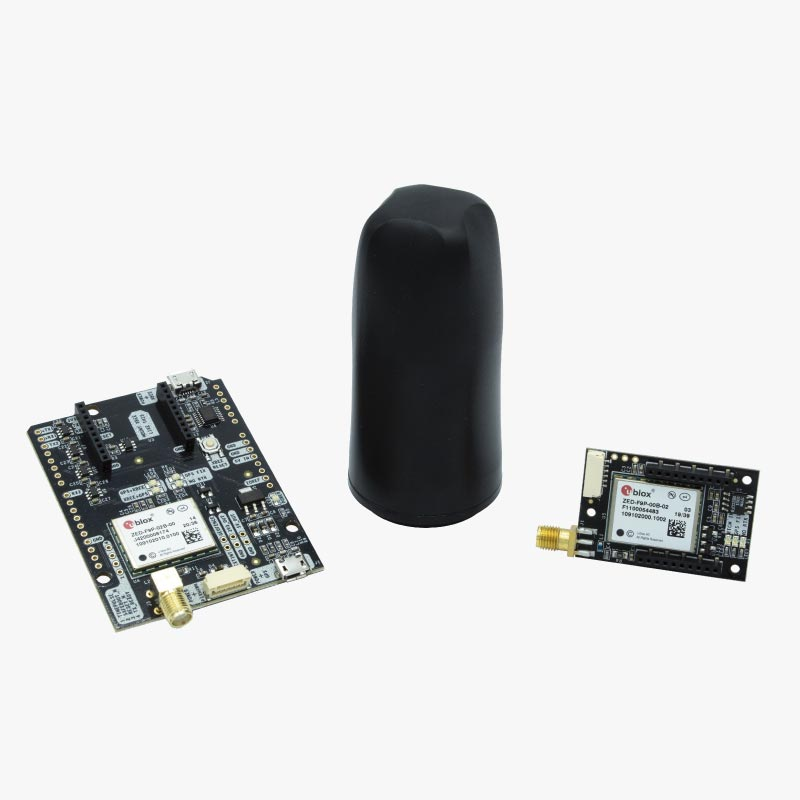

Introducing the high-sensitivity external helical GNSS antenna from ArduSimple, supporting Tripleband L1/L2/L5 and L-band (L6). This antenna is ideal for lightweight applications such as drones, quadcopters, and portable devices, as it boasts low weight and compact dimensions while ensuring reliable RTK reception. The antenna is compatible with all simpleRTK3B boards, as well as any other multi-band GNSS receivers on the market.
Supported Positional Signals
- GPS: L1, L2, L5
- GLONASS: G1, G2, G3
- BeiDou: B1, B2, B3
- Galileo: E1, E5, E6
- QZSS: L1, L2, L5, L6
- NavIC: L5
- L-band: L6
- SBAS: WAAS, EGNOS, MSAS, and GAGAN
Key Technical Specifications
- Polarization: RHCP (Right-Hand Circular)
- Peak Gain: 2 dBi
- Axial Ratio at Zenith: Drone Accessories
This antenna is an excellent choice for engineers, UAV operators, and enthusiasts looking for a lightweight, dust and water-protected (IP67) multi-band GNSS antenna with L-band support for improved positioning accuracy.
Other products in this category here Drone Accessories
