Product Code: FA103-17586-103
473 грн.
This product has a minimum quantity of 6
Buy this product in 1 click:
Main specifications
Polarization:
RHCP
Weight (depends on size):
11.5 g
Frequency range:
4.9-6 GHz
Enhancements:
2.65 -2.68 dBi
Size:
175 mm
All specifications
We will deliver this product:
Payment
Description
*** Minimum order - 3000 UAH! Shipping from a remote warehouse. Shipping times 2-5 days.

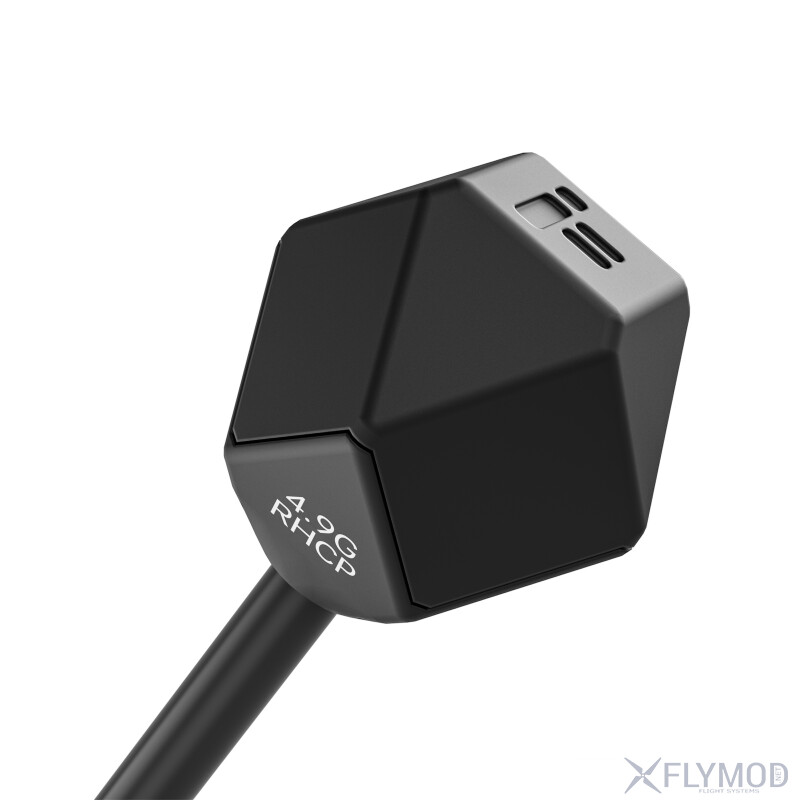

The new improved iFlight Albatross V2 antenna is lighter, stronger, and more reliable thanks to updated manufacturing technology. Antennas with 4.9GHz and 5.8GHz frequency ranges ensure compatibility with a wide range of transmitters and receivers used in FPV systems.
Features
- Antennas available in two frequencies: 4.9GHz and 5.8GHz
- Improved antenna gain enhances device performance and stability
- Made from durable and reliable material
Specifications
- Frequency range:
- for 4.9GHz: 4.9GHz-5.2GHz
- for 5.8GHz: 5.3GHz-6GHz
- MAX gain:
- for 4.9GHz: 2.68dBi (5050MHz)
- for 5.8GHz: 2.65dBi (5695MHz)
- MIN gain:
- for 4.9GHz: 2.12dBi (5200MHz)
- for 5.8GHz: 2.06dBi (5362MHz)
- MAX VSWR:
- for 4.9GHz: 1.3606 (5170MHz)
- for 5.8GHz: 1.76 (5917MHz）
- MIN VSWR:
- for 4.9GHz: 1.1728 (5020MHz)
- for 5.8GHz: 1.46 (5621MHz）
- MAX radiation efficiency:
- for 4.9GHz: 88% (5080MHz)
- for 5.8GHz: 86% (5436MHz）
- MIN radiation efficiency:
- for 4.9GHz: 79% (5200MHz)
- for 5.8GHz: 76% (5917MHz）
- Cross-polarization suppression: -25 dB
- Axial ratio: ≤ 3
- Polarization: RHCP (see option)
- Connector type: option selection
- Cable: RG141
- Dimensions:
- total length: 175 mm,
- cable length: 150 mm
- Weight: 11.5 g
Package contents
- 1 x iFlight Albatross V2 antenna
Specifications
Polarization
RHCP
Weight (depends on size)
11.5 g
Size
175 mm
Antennas
Frequency range
4.9-6 GHz
Enhancements
2.65 -2.68 dBi
