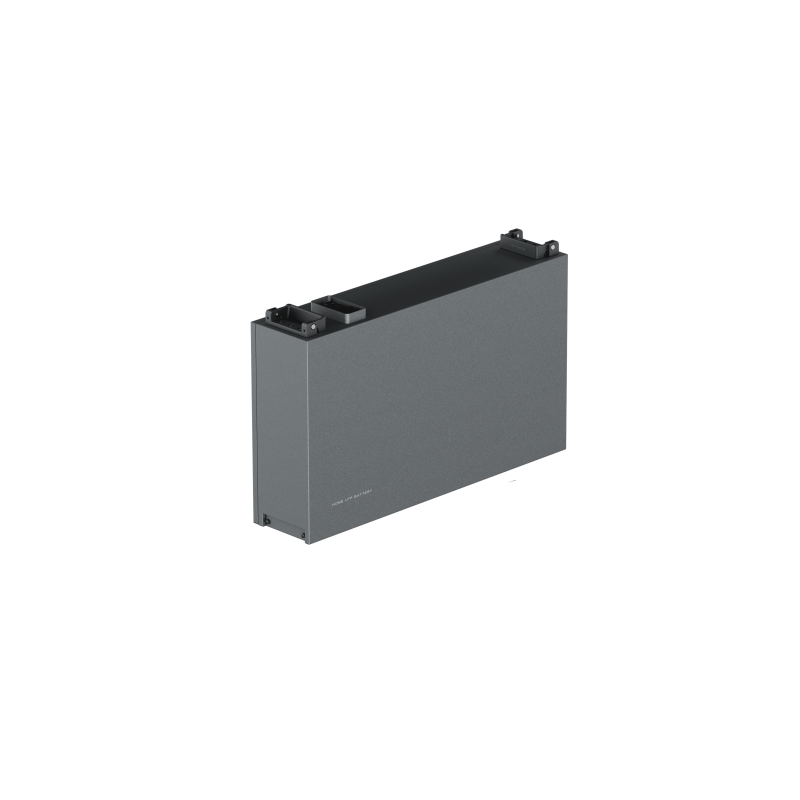

EcoFlow Power Ocean 5 kWh Battery — Reliable Modular Solution for Energy Independence
EcoFlow Power Ocean 5 kWh — a high-voltage LFP battery from the EcoFlow brand, designed for creating hybrid 3-phase power supply systems in homes, commercial facilities, or microgrids. A single unit has a nominal capacity of 5 kWh and serves as a base unit for scaling the system up to 45 kWh, providing flexibility in design and operation.
Features and Benefits
- High operating voltage — up to 800 V thanks to a built-in DC-DC converter in each module, which allows independent voltage conversion between 48 V and 800 V.
- Modular architecture — the initial unit allows starting a 3-phase system, and connecting units in parallel ensures capacity expansion up to 45 kWh.
- Enhanced safety — each module operates autonomously with an integrated BMS and converter, so a malfunction in one unit does not affect other system elements.
- Automotive-grade BMS with TI chip — ensures precise battery status control and longer operation.
- Cloud BMS support — remote monitoring, analytics, and intelligent risk management via cloud services.
- Active aerosol fire suppression module with thermal sensor — activates when the temperature exceeds 270 °C for increased safety.
- Protection and operation in harsh climatic conditions — automatic heating for operation in freezing temperatures and an IP65-rated enclosure.
- Compact and thoughtful design — a durable matte metal casing approximately 180 mm thick allows the unit to be installed in a basement or garage; a hinged flap on the inverter and control box is provided for neat cable concealment.
Technical Specifications
| Parameter | Value |
|---|---|
| Number of Battery Units | LFP Battery x 1 |
| Battery Module Capacity | 5 kWh |
| Max. Output Power | 3.3 kW |
| Max. Input Power | 2.5 kW |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 40 ~ 57.6 V |
| Battery Type | LFP |
| Compliance Certificates | IEC/EN62477, IEC/EN62619 (EN ISO 13849), UN 38.3 |
| Size (W*D*H) | 675.6 × 182.7 × 593.6 mm |
| Power Module Weight | 54 kg |
| Mounting | Floor Stand |
| Operating Temperature | -20 °C ~ 50 °C |
| Max. Operating Altitude | 3000 m |
| Cooling Method | Natural Convection |
| Noise Level | ≤ 30 dB |
| Relative Humidity | 10 ~ 100% RH |
| Protection Level | IP65 |
Compatibility and Application: The EcoFlow Power Ocean 5 kWh is compatible with the EcoFlow 3-phase hybrid inverter and is suitable for residential, commercial, and microgrid applications. Thanks to the built-in DC-DC converter, automotive BMS, and modular design, each unit operates as an independent entity, simplifying installation, maintenance, and enhancing system reliability.
Safety and Reliability: The comprehensive safety measures include an active aerosol fire suppression module with a thermal sensor (>270 °C), cloud BMS monitoring, automatic heating for low temperatures, and international standard certifications, ensuring a high level of equipment operation protection.
Manufacturer's Note: The manufacturer reserves the right to change the composition, configuration, color scheme of the product, warranty period, technical specifications, etc., without prior notice. Product description, technical specifications, and configuration may vary.
