Product Code: FA94-20331-94
104 063 грн.
Buy this product in 1 click:
Main specifications
Battery storage temperature, °C: -20 ~ +40
BMS: 48V 16S Dis 200A Ch 200A
Charge operating temperature, °C: 0 ~ +45
Charging voltage (buffer mode), V: 58.4
Charging voltage (cyclic mode), V: 58.4
All specifications
We will deliver this product:
Payment
Description

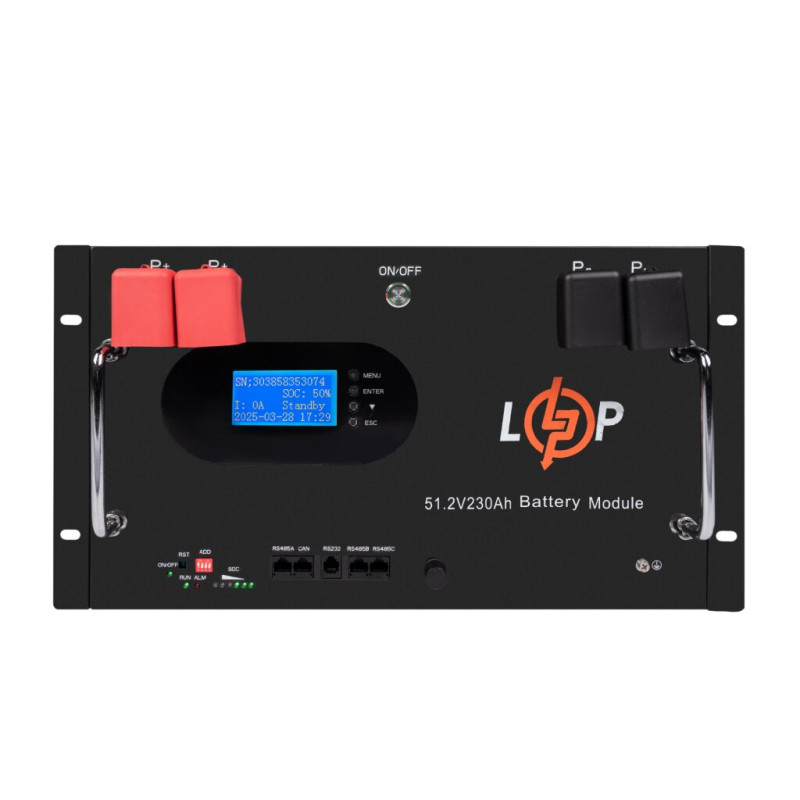

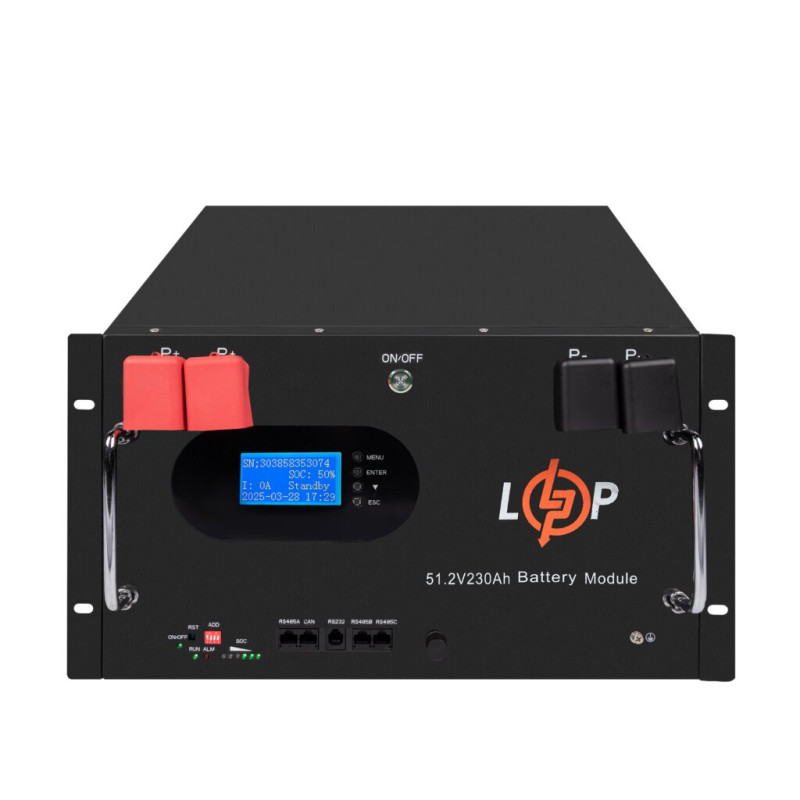

LiFePO4 SMART BMS Bluetooth Battery

New generation Lithium Iron Phosphate (LiFePO4) batteries with a unique BMS board are the most efficient and safest batteries for domestic and industrial uninterruptible power supply systems.

The intelligent BMS board is a programmable management system for Lithium Iron Phosphate (LiFePO4) batteries.

Buy a Smart LiFePO4 battery in Ukraine: where can they be used?

  • Electric forklifts, floor scrubbers, lawnmowers, and other special equipment
  • Backup and uninterruptible power supply systems for homes, offices, warehouses, production facilities, etc.
  • Solar power plants and other alternative energy sources
  • Portable charging stations for mobile phones, laptops, drones, etc.

BMS intelligent protection board, active balancer, Bluetooth: how does it help increase efficiency and extend the service life of lithium batteries?

SMART BMS Bluetooth boards can be used in lithium batteries with various chemical properties: lithium iron phosphate, lithium-ion, lithium polymer, etc.

Dual-layer hardware and software protection provides high protective potential during battery charging and discharging:

  • overcharge
  • low charge protection
  • high or low temperature protection
  • overcurrent protection
  • short circuit protection, etc.

Active balance function for efficient automatic battery charging and maintaining uniform voltage across each cell.

The battery can be used as part of a UPS, as well as with any load-compatible device.

The internal temperature sensor provides triple control of the battery's operating temperature.

Bluetooth - always current and timely information about the battery status:

  • battery charge level control
  • battery operating status control
  • battery capacity control
Specifications
Battery storage temperature, °C -20 ~ +40
BMS 48V 16S Dis 200A Ch 200A
Charge operating temperature, °C 0 ~ +45
Charging voltage (buffer mode), V 58.4
Charging voltage (cyclic mode), V 58.4
Discharge operating temperature, °C -4 ~ +140
Full charge voltage, V 58.4
Height, mm 256
Housing material metal
Internal resistance, mOm less than 50
Length, mm 425
Maximum charge current, A 200
Maximum discharge current, A 200
Minimum voltage, V 40
Nominal capacity, Ah 230
Nominal capacity, mAh 230000
Nominal values of elements 230
Nominal voltage, V 48 (51.2)
Number of cycles 7000
Number of elements in group S 16
Number of items in group R 1
Peak discharge current (100 ms), A 300
Stored energy, Wh 11776

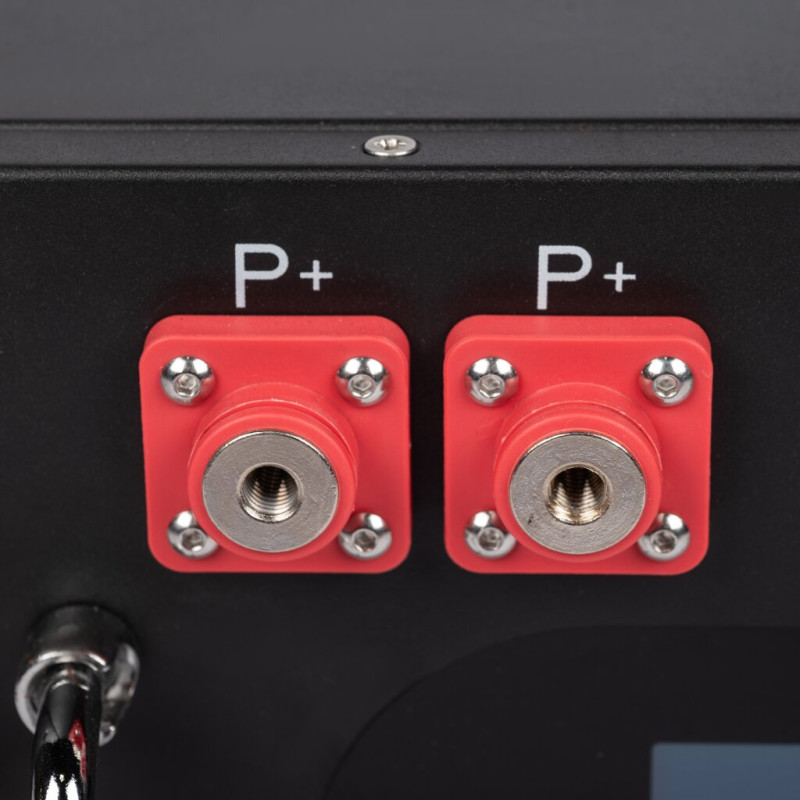

Terminal type T11 (for M8 bolt)
Type LiFePO4
Volume, m³ 0.189
Warranty, months 60
Weight, kg 87
Width, mm 610
