Product Code: FA94-37477-94
18 281 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: Active up to 0.6A
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 1280
Cell connection diagram: 8S1P
All specifications
We will deliver this product:
Payment
Description

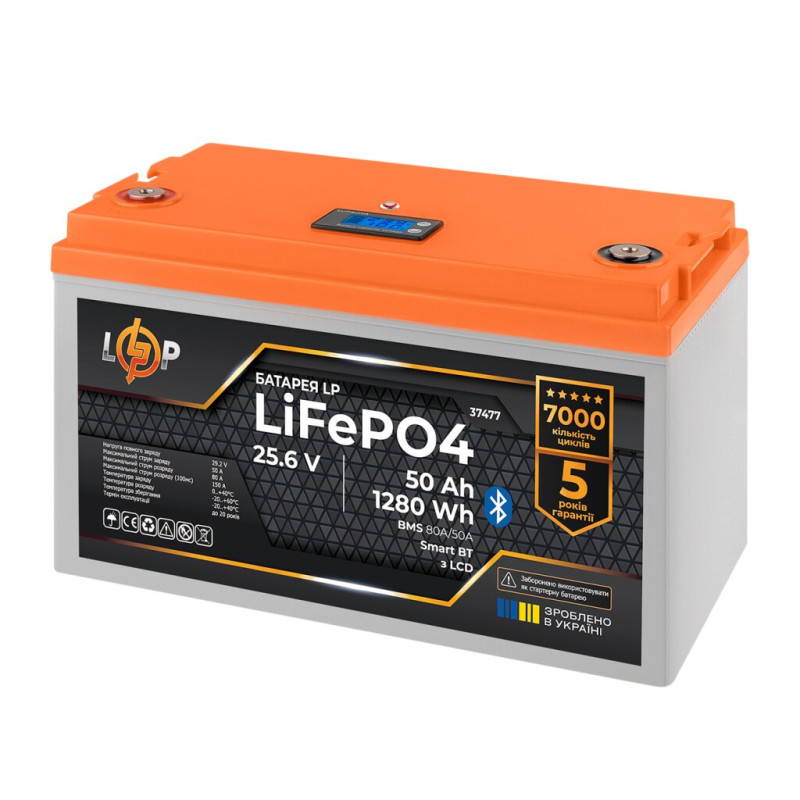

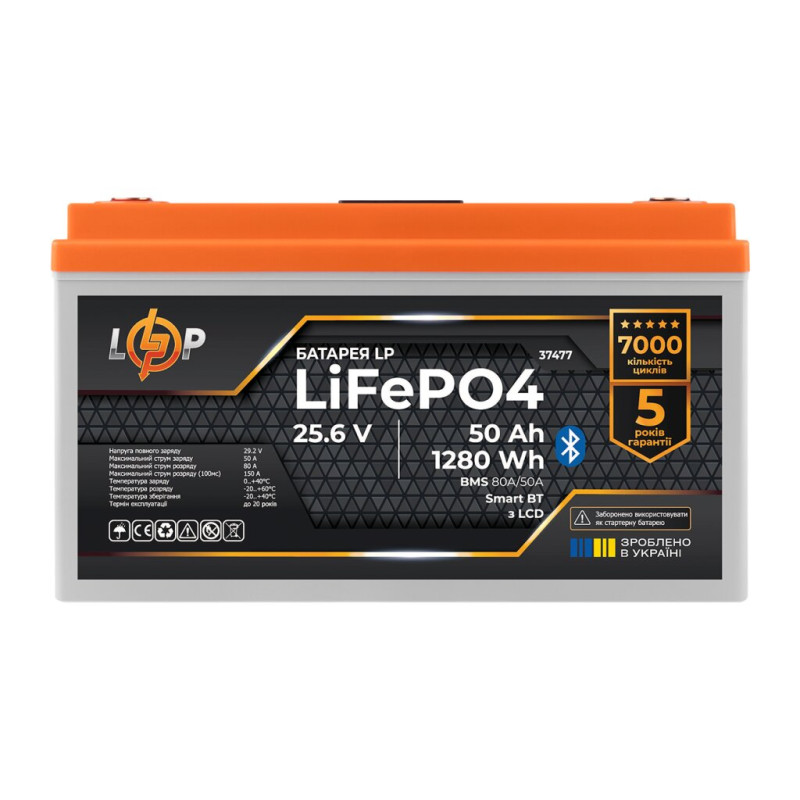

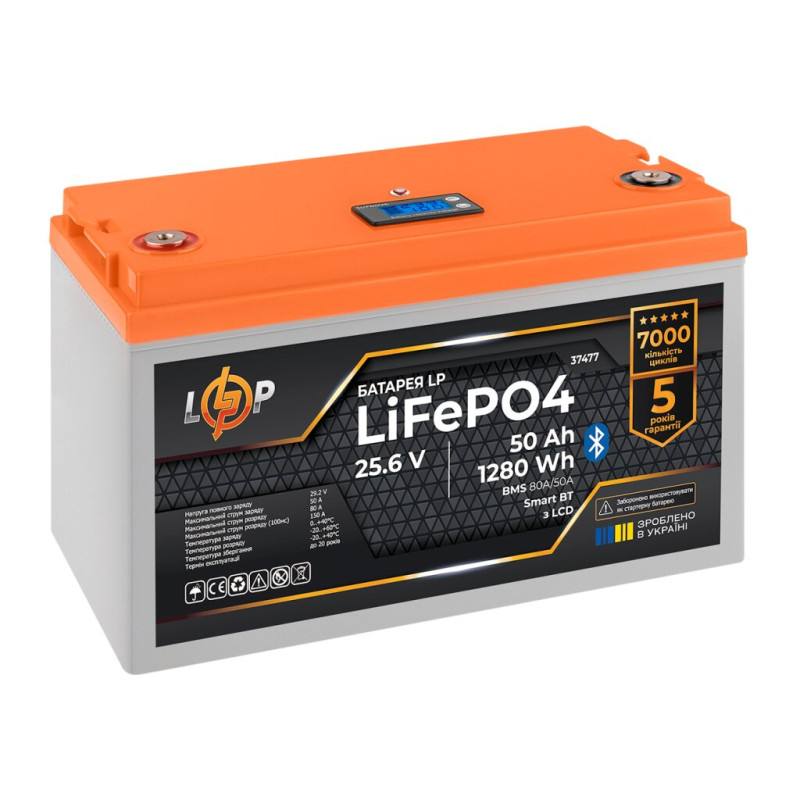

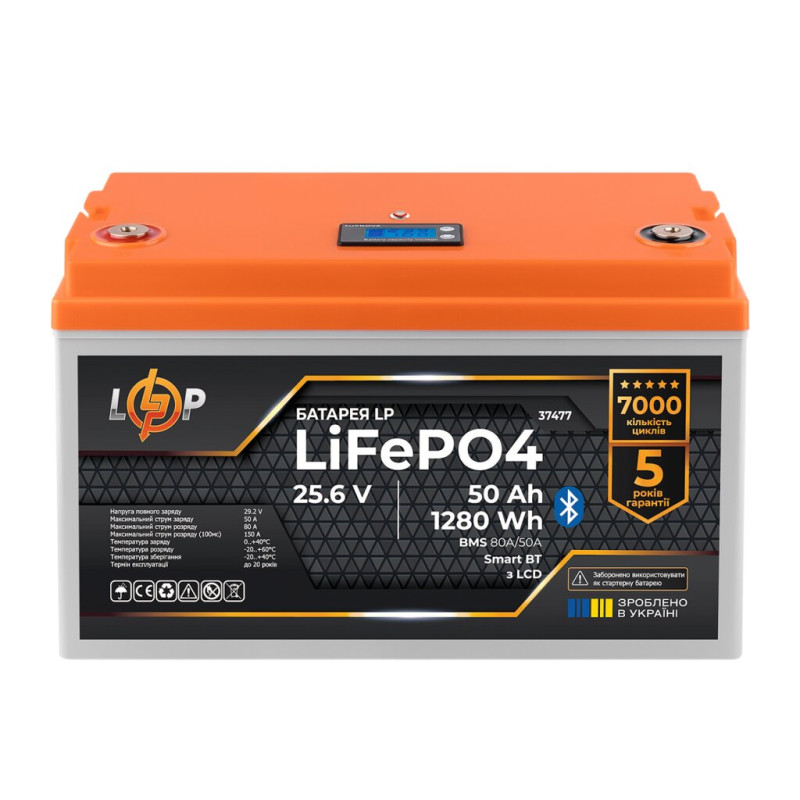

LiFePO4 SMART BMS Bluetooth Battery

New generation Lithium Iron Phosphate (LiFePO4) batteries with a unique BMS board are the most efficient and safest batteries for household and industrial uninterruptible power supply systems.

The intelligent BMS board is a programmable management system for Lithium Iron Phosphate (LiFePO4) batteries.

Buy a Smart LiFePO4 battery in Ukraine: where can they be used?

  • Electric forklifts, floor scrubbers, lawnmowers, and other special equipment
  • Backup and uninterruptible power supply systems for homes, offices, warehouses, production facilities, etc.
  • Solar power plants and other alternative energy sources
  • Portable charging stations for mobile phones, laptops, drones, etc.

BMS intelligent protection board, active balancer, Bluetooth: how does it help increase efficiency and extend the service life of lithium batteries?

SMART BMS Bluetooth boards can be used in lithium batteries with different chemical properties: lithium iron phosphate, lithium-ion, lithium polymer, etc.

Dual-layer hardware and software protection ensures high protective potential during battery charging and discharging:

  • overcharge
  • low charge protection
  • high or low temperature protection
  • overcurrent protection
  • short circuit protection, etc.

Active balance function for efficient automatic battery charging and maintaining uniform voltage across each cell.

The battery can be used both as part of a UPS and with any load-compatible device.

An internal temperature sensor provides triple control of the battery's operating temperature.

Bluetooth - always current and timely information about the battery status:

  • battery charge level control
  • battery operating status control
  • battery capacity control
Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type Active up to 0.6A
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 1280
Cell connection diagram 8S1P
Cell type Prismatic
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 27.2
Charging voltage (cyclic mode), V 29.2
Communication interface Bluetooth (RS485 Optional)
Discharge operating temperature, °C -4 ~ +140
Housing material Plastic
Maximum charge current, A 50
Maximum discharge current, A 50
Minimum voltage, V 21
Nominal capacity, Ah 50
Nominal charging current, A 25
Nominal values of elements 50
Nominal voltage, V 25.6
Number of cycles 7000
Peak discharge current (100 ms), A 150
Peak Discharge Current, A 150 (100ms)
Protection level IP54
Recommended low voltage cutoff, V 22.4
Reconnecting charge voltage, V 28.4
Reconnection discharge voltage, V 21.2
Short-circuit current, A 150
Starting current, A 150
Terminal type T11 (for M8 bolt)
Type LiFePO4
Warranty, months 60
Weight, kg 10.57
