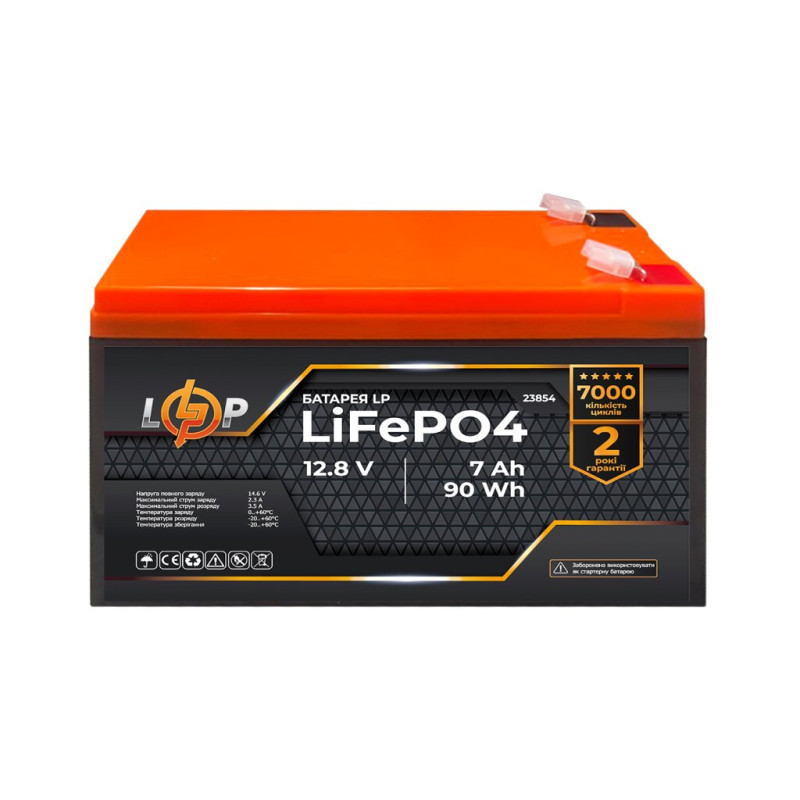

Product Code: FA94-23854-94
1 277 грн.
Buy this product in 1 click:
Main specifications
Battery storage temperature, °C: -15 ~ +50
BMS: is
Charge operating temperature, °C: 0 ~ +40
Charging voltage (buffer mode), V: 13.8
Charging voltage (cyclic mode), V: 14.6
All specifications
We will deliver this product:
Payment
Description

New generation LiFePO4 batteries have high efficiency (up to 94%) and a wide operating temperature range (-15 ~ +60°C).

LiFePO4 batteries charge quickly and have compact dimensions.

As an energy storage system, a lithium battery is highly environmentally friendly and has a wide range of applications.

Compared to lead-acid batteries, LiFePO4 batteries have a longer service life (25 times longer), while being 2 times lighter than lead-acid batteries and having a high current output. This type of battery is non-flammable and non-toxic.

LiFePO4 batteries have a very low self-discharge, 20% of capacity, when stored for over 10 years.

If you need a battery and don't know which one is best, choose lithium iron phosphate batteries from LogicPower.

Specifications
Battery storage temperature, °C -15 ~ +50
BMS is
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 13.8
Charging voltage (cyclic mode), V 14.6
Discharge operating temperature, °C -15 ~ +60
Height, mm 94
Housing material Plastic
Internal resistance, mOm 21
Length, mm 151
Maximum charge current, A 2.3
Maximum discharge current, A 3.5
Minimum voltage, V 10.5
Nominal capacity, Ah 7
Nominal capacity, mAh 7 000
Nominal voltage, V 12 (12.8)
Number of cycles 7000
Stored energy, Wh 89.6
Terminal type T2/F2
Type LiFePO4
Warranty, months 24
Weight, kg 0.95
Width, mm 65
