Product Code: FA94-29807-94
In Stock
4 089 грн.
Buy this product in 1 click:
Main specifications
Ambient humidity, %(RH): 10~80%
Balancer Type: External
Battery storage temperature, °C: -20 ~ +40
Capacity, Wh: 279.7
Cell connection diagram: 6S3P
All specifications
We will deliver this product:
Payment
Description

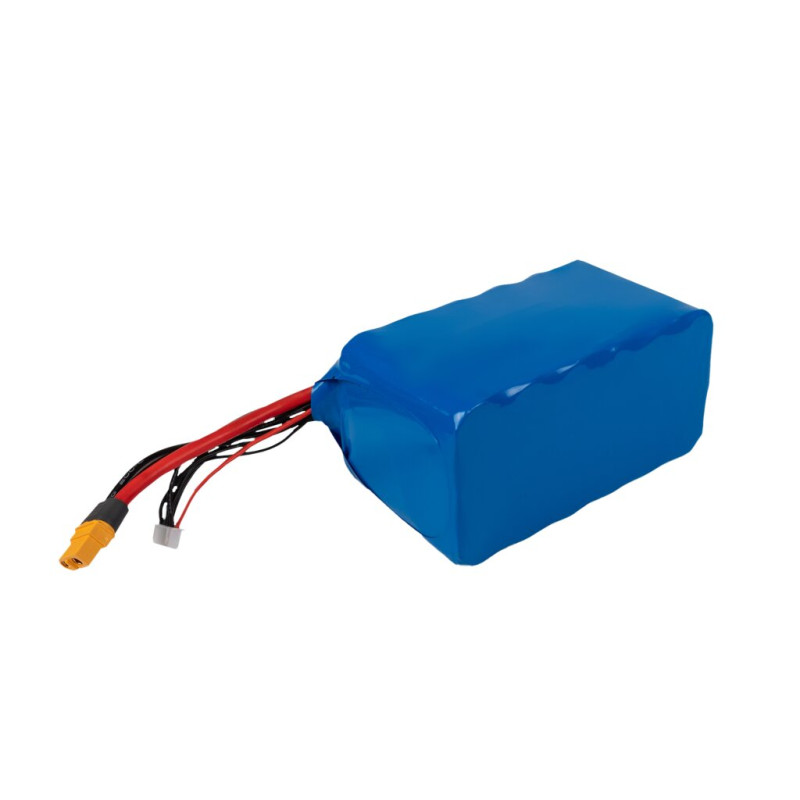

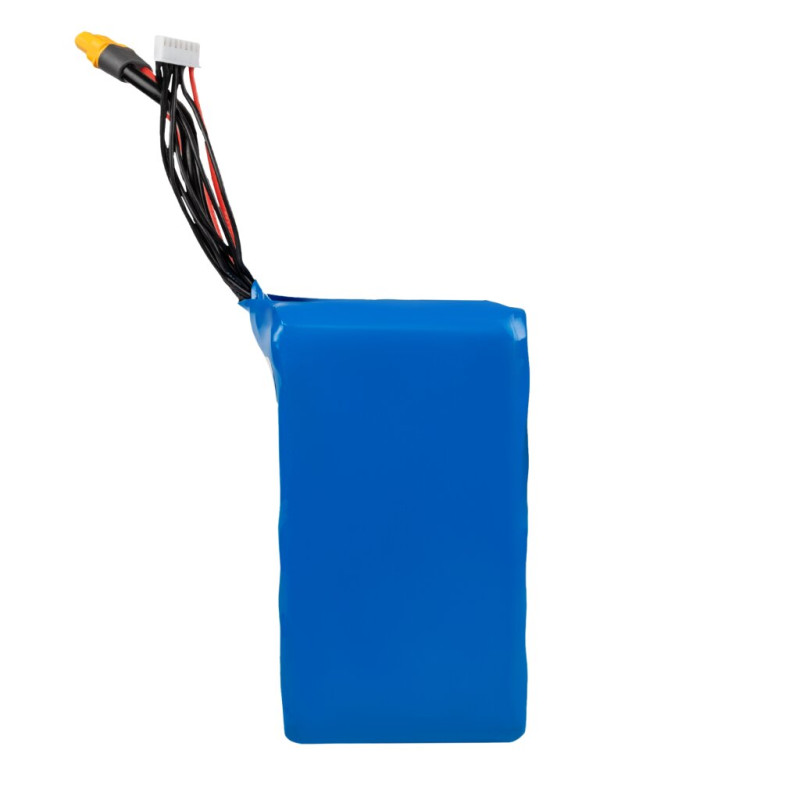

Li-ion Battery 22.2V 12600 mAh (279.7Wh) 135A Molicel High-Current 6S3P — a high-quality and reliable power source that ensures stable and long-lasting operation of your devices.

It has a nominal voltage of 22.2V and a capacity of 12600 mAh (279.7 Wh), built with Molicel INR-21700-P42A cells.

The type of welding plate connecting the battery sections is made of copper, which reduces contact resistance and energy loss compared to using nickel conductors.

Application: This battery is ideal for use in various applications, such as:

  • Electric transport (e-bikes, e-scooters, skateboards).
  • Drones and RC models.
  • Professional and household power tools.
  • Solar and backup power systems.
  • DIY devices.

Recommendations for using the battery pack:

Use only with compatible chargers.

Avoid complete discharge and overcharge of the battery.

Store in a dry and cool place, away from direct sunlight.

Specifications
Ambient humidity, %(RH) 10~80%
Balancer Type External
Battery storage temperature, °C -20 ~ +40
Capacity, Wh 279.7
Cell connection diagram 6S3P
Cell type Cylindrical
Charge operating temperature, °C 0 ~ +40
Charging voltage (buffer mode), V 24
Charging voltage (cyclic mode), V 25.2
Communication interface out of stock
Discharge operating temperature, °C -4 ~ +140
Housing material Heat shrink film
Maximum charge current, A 12
Maximum discharge current, A 60
Minimum voltage, V 16.8
Nominal capacity, Ah 12.6
Nominal charging current, A 6
Nominal values of elements 4.2
Nominal voltage, V 22.2
Peak Discharge Current, A 135
Protection level IP40
Self-discharge, %/month <3%

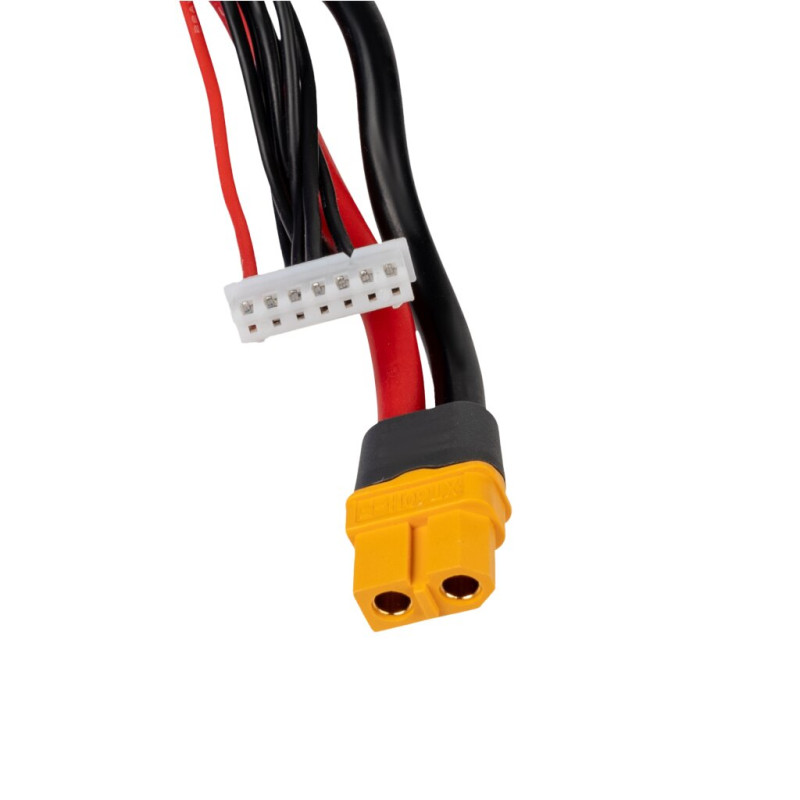

Terminal type XT60
Type Li-ion
Warranty, months 24
Weight, kg 1.27
