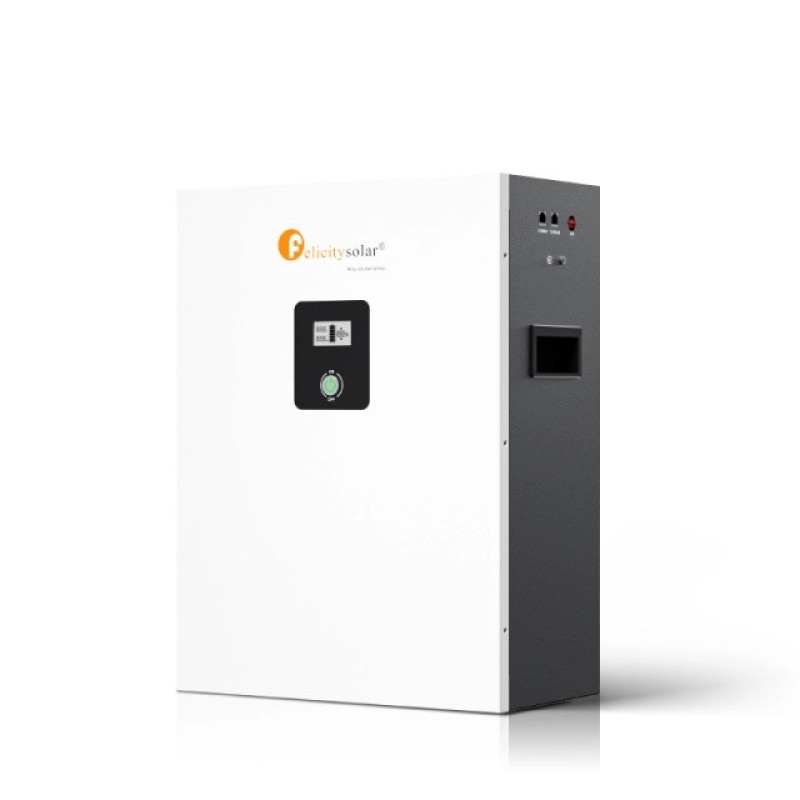

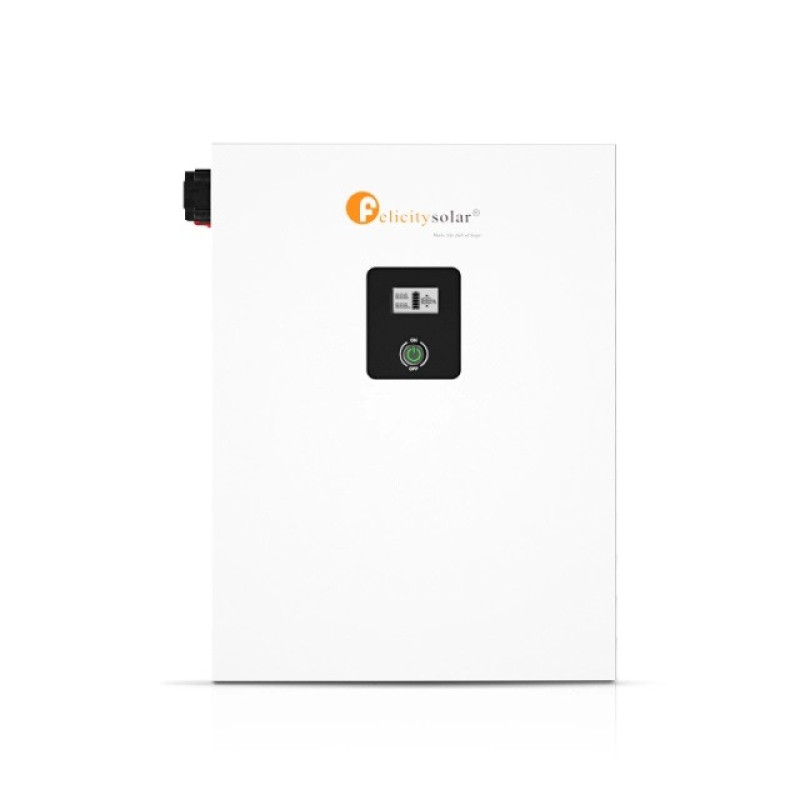

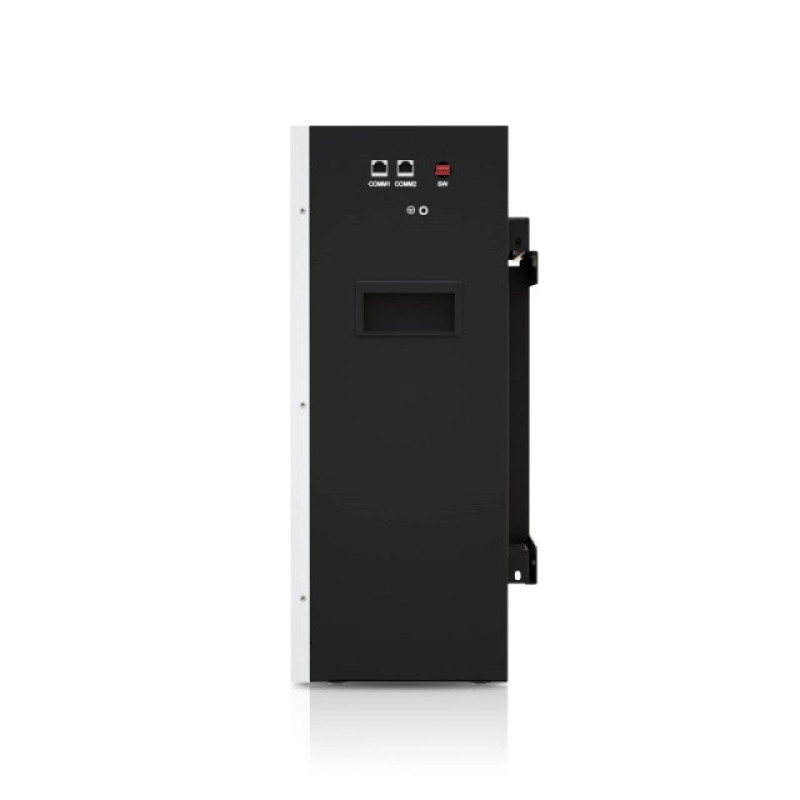

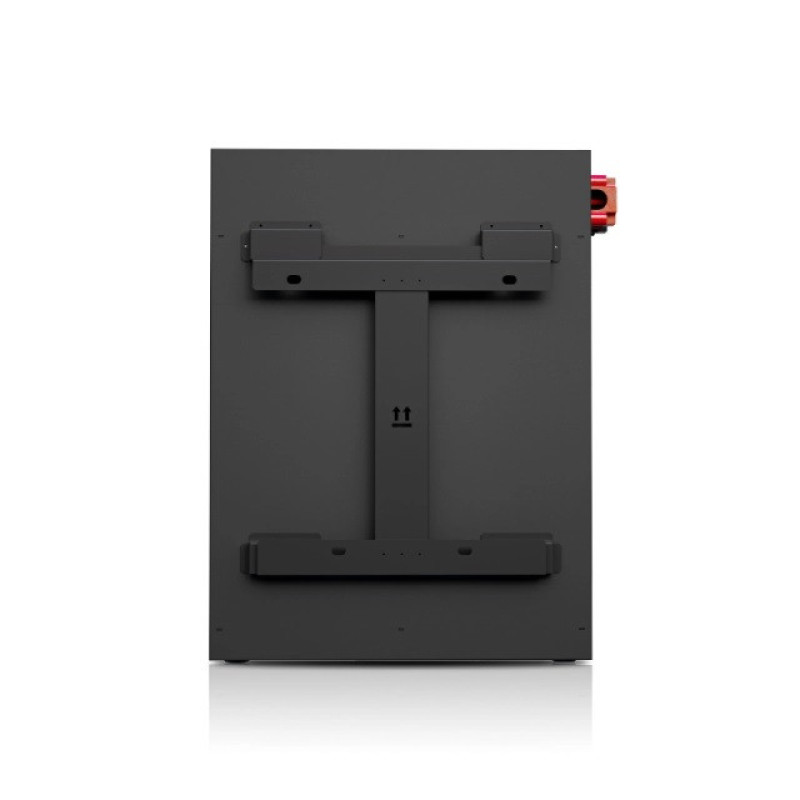

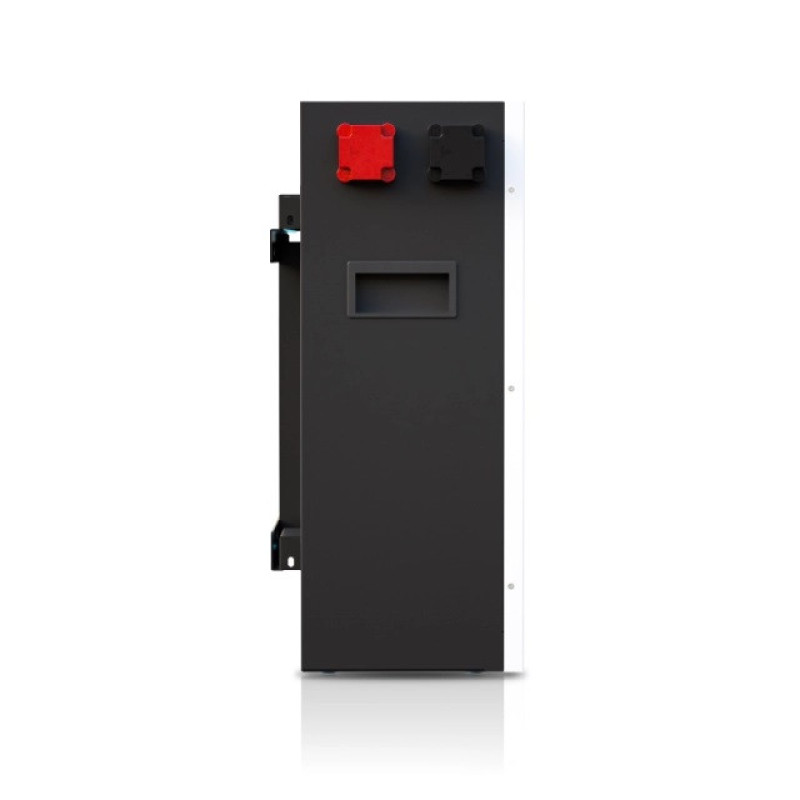

The Felicity LPBF48100-H battery is a high-tech lithium iron phosphate (LiFePO4) battery designed to provide reliable and efficient energy storage in various applications. Thanks to its outstanding characteristics, this battery is an ideal choice for solar power plants, backup power systems, electric vehicles, and other applications where a stable and durable power source is required.
LiFePO4 Technology: Safety, Durability, and Efficiency
At the core of the Felicity LPBF48100-H battery is lithium iron phosphate (LiFePO4) technology, which offers several important advantages:
- High Safety: LiFePO4 chemistry is one of the safest among lithium batteries. It has a low risk of thermal runaway and ignition, ensuring safe operation.
- Long Service Life: LiFePO4 batteries have a significantly longer service life than traditional lead-acid batteries. They can withstand over 6000 charge-discharge cycles at 80% depth of discharge, ensuring long-term and cost-effective operation.
- Stable Operation: LiFePO4 batteries demonstrate stable voltage throughout the discharge cycle, ensuring efficient operation of connected equipment.
- Wide Operating Temperature Range: LiFePO4 batteries can operate in a wide temperature range, making them suitable for use in various climatic conditions.
- Environmental Friendliness: LiFePO4 batteries do not contain toxic heavy metals such as lead or cadmium, making them more environmentally friendly.
Felicity LPBF48100-H Technical Specifications
| Characteristic | Value |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 48 V (51.2 V) |
| Nominal Capacity | 100·Ah |
| Energy Capacity | 5 kWh (5 kWh) |
| Internal Resistance | ≤0.5 mOhm |
| BMS (Battery Management System) | Built-in, with protection and balancing functions |
| Charge Input Voltage Range | 54.75±0.15V |
| Maximum Charge Current | 100 A |
| Maximum Discharge Current | 100 A (continuous), 200 A (pulse, 10 sec) |
| Depth of Discharge (DOD) | 80% (recommended for maximum service life) |
| Number of Charge/Discharge Cycles | >6000 (at 25°C and DOD 80%) |
| Terminals | M8 |
| Operating Temperature Range | Discharge: -20°C ~ +60°C; Charge: 0°C ~ +45°C |
| Storage Temperature | -20°C ~ +45°C |
| Storage Humidity | ≤85% (non-condensing) |
| Weight (approx.) | 63 kg |
| Dimensions (approx.) | 575x430x258 kg |
BMS Functions
The built-in Battery Management System (BMS) provides comprehensive protection and control of battery parameters:
- Overcharge Protection: prevents battery damage due to excessive charging.
- Deep Discharge Protection: prevents battery damage due to complete discharge.
- Overcurrent Protection: protects the battery from excessive discharge current.
- Short Circuit Protection: instantly disconnects the battery in case of a short circuit.
- Cell Balancing: ensures uniform charging and discharging of all battery cells, extending its service life.
- Thermal Control: protection against overheating and overcooling.
- Status Monitoring: tracking of voltage, current, temperature, and other battery parameters.
Battery Application
- Autonomous and hybrid solar power plants.
- Uninterruptible Power Supply (UPS) systems for home, office, and industry.
- Electric vehicles (electric cars, golf carts, scooters).
- Energy storage systems for telecommunications and other critical applications.
Advantages of Felicity LPBF48100-H
- High safety and reliability.
- Long service life (over 6000 cycles).
- Stable operation and high efficiency.
- Wide operating temperature range.
- Built-in BMS with a full set of protective functions.
- Environmental friendliness.
Package Contents
- Felicity LPBF48100-H battery.
- User manual.
- Warranty card (may vary depending on supplier).
- Connection cables (may be optional, check with seller).
Packaging of Felicity LPBF48100-H battery
The Felicity LPBF48100-H battery is supplied in a sturdy cardboard box that provides protection against mechanical damage during transportation. Inside the box, the battery is further secured with foam or other cushioning materials. The packaging is marked with product information, manufacturer details, and warnings regarding transportation and storage rules.
If you are looking for a reliable and efficient energy storage solution, the Felicity LPBF48100-H battery will be an excellent choice. Contact us for a consultation and to purchase this modern battery that will meet your energy independence needs.
