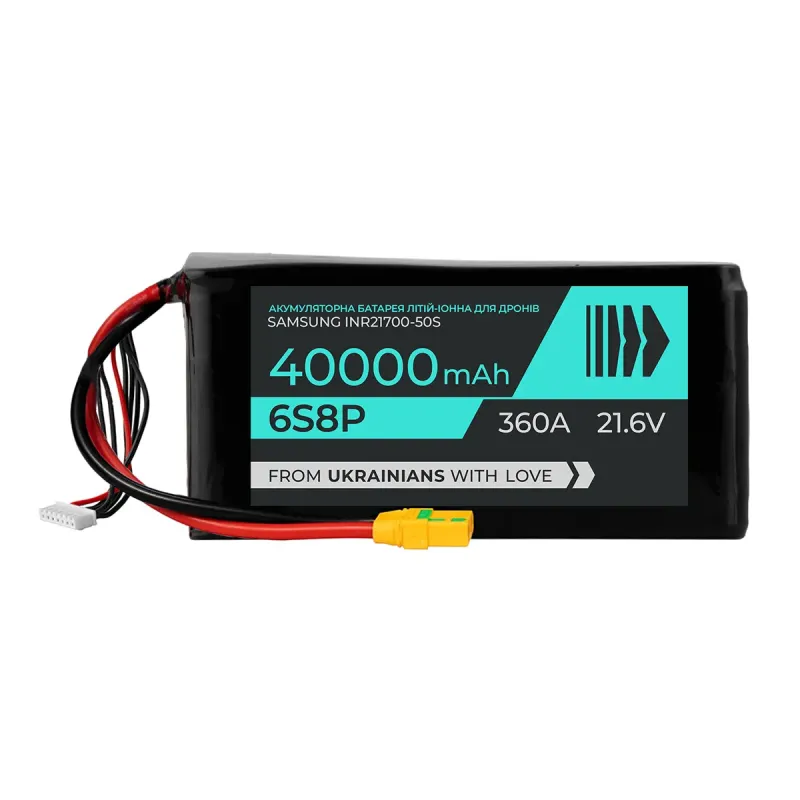

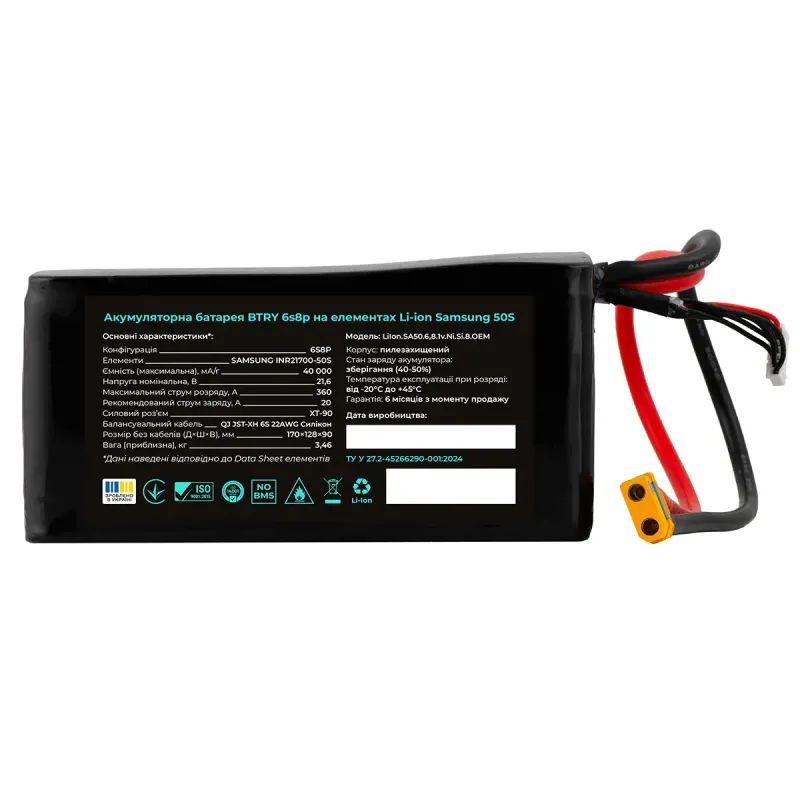

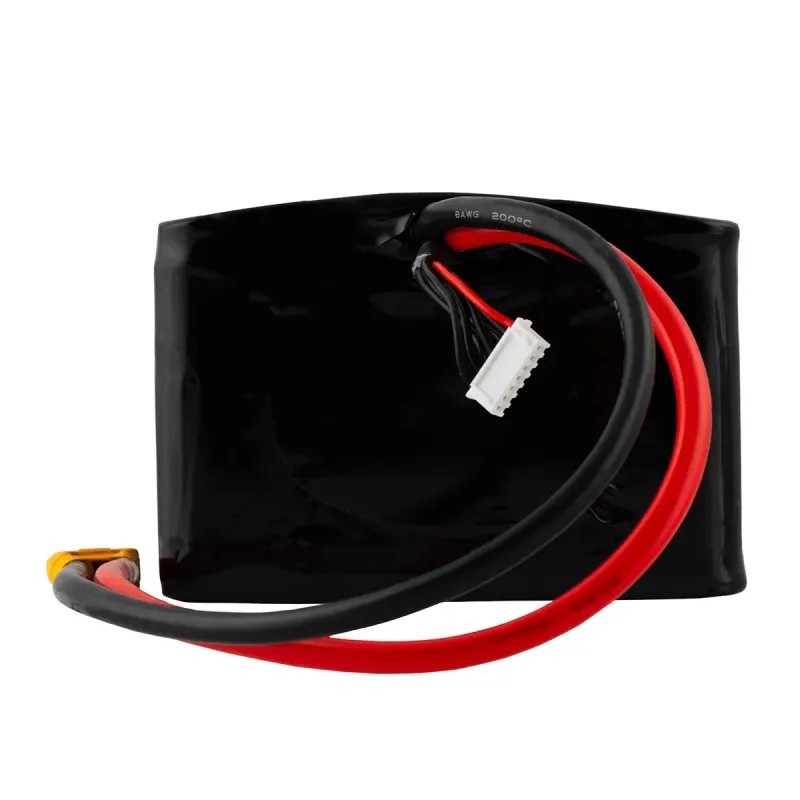

Multicopter/aircraft batteryBTRY 6s8p Samsung(INR21700-50S)

What is a 6s8p configuration?

A 6s8p configuration means that the battery consists of 6 cells connected in series (6s) and eight parallel branches (8p). This provides a nominal voltage of about 21.6 V and an increased capacity of up to 40000 mAh and a maximum discharge current of up to 360 A. This format is a real energy monster, which is chosen for large copters, cargo UAVs, where maximum autonomy and endurance under load are important.

For which platforms?

The 6s8p configuration opens up new possibilities for powerful copters, cargo drones and aircraft-type UAVs that perform long-range missions or carry a significant payload. Such a battery provides a stable power supply, high endurance and maximum reserve capacity, which is critical for long-term missions, aerial photography, logistics or technical monitoring. Unlike FPV solutions, where maneuverability and weight are important, the 6s8p format battery is about reserve, autonomy and reliability.

Connectors and connections

The XT-90 connector is used to connect the battery assembly — a reliable solution for systems with increased power consumption. The XT-90 operates stably under loads of up to 90 amps, withstands high peak currents without overheating, and provides the tight electrical contact critical for high-powered platforms.

Originality and reliability

Only new, original elements from well-known manufacturers are used in these assemblies. You can choose from such elements as: Molicel, Lishen, Samsung, EVE, etc.

All of them have proven themselves well in the UAV segment thanks to stable current output, reliable capacity and endurance during flights. These are proven elements that have been tested in real combat conditions and have shown high reliability.

Technical specifications

Tags: BTRY.ENERGY Batteries for Drones, 1XT90, 6S (22.2V) Drone Batteries, Li-ion Batteries for Drones
