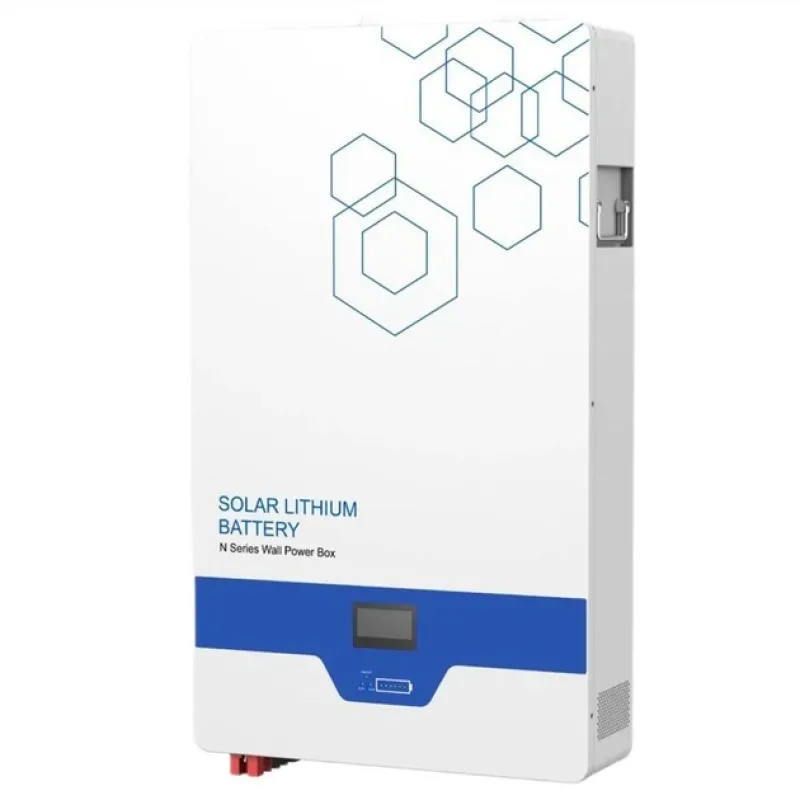

The Anern AN-LPB-N-48200 Npro series battery is an advanced energy storage solution that combines a high capacity of 10.24 kWh with the reliability of LiFePO4 technology. With its wall-mounted design and modern aesthetic, this battery seamlessly integrates into home and commercial solar power systems, providing stable power and a long service life of over 8 years.
Purpose
-
Storing energy from solar panels for use in the evening or during grid outages.
-
Providing uninterrupted power for private homes, offices, and industrial facilities.
-
Use in off-grid and hybrid power supply systems.
-
Optimizing self-consumption of electricity and reducing dependence on the main grid.
Specifications
| Parameter | Value |
| Model | AN-LPB-N-48200 (Npro) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2 V |
| Nominal Capacity | 200 Ah |
| Energy Storage | 10.24 kWh |
| Operating Voltage Range | 44.8 V - 58.4 V |
| Maximum Discharge Current | 200 A |
| Standard Charge Current | 100 A |
| Fast Charge Current | 200 A |
| Cycle Life | 6000 cycles (at 80% DoD) |
| Communication Ports | RS485, RS232, CAN |
| Protection Rating | IP54 |
| Weight | 89.5 kg |
| Dimensions (WxHxD) | 796×485×180 mm |
Materials and Construction
-
Durable metal casing with anti-corrosion coating for wall mounting.
-
Modular architecture ensuring compactness and simplifying installation.
-
High-quality lithium iron phosphate cells from leading global manufacturers.
-

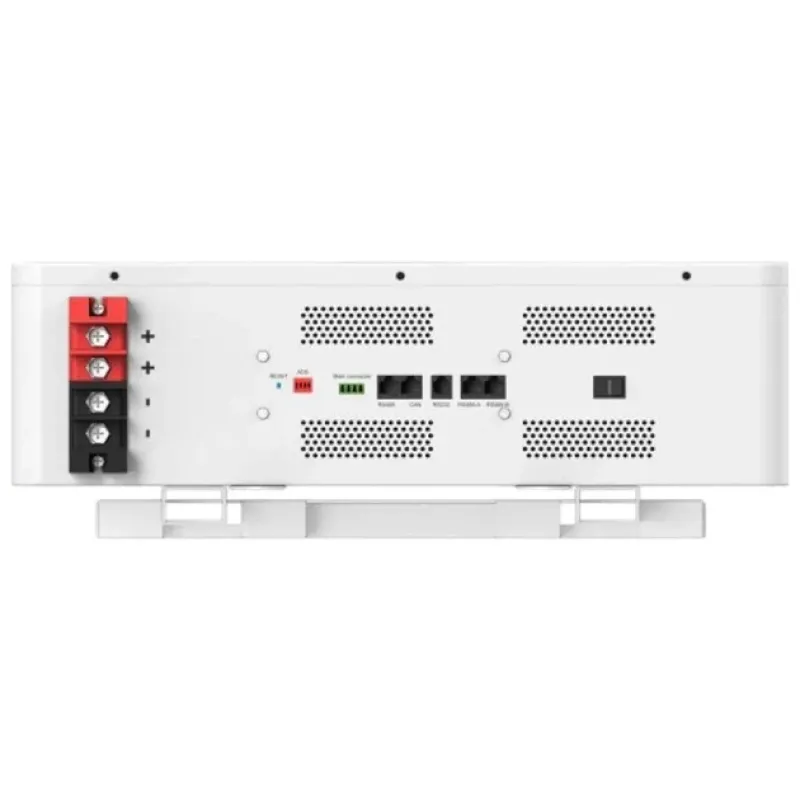

Frontal placement of ports and wires for convenient maintenance and connection.
-
Built-in on/off button for quick system control.
Functions and Features
The system is equipped with an intelligent BMS that supports multi-level power management. The ability to connect multiple modules in parallel allows for scaling system capacity, while automatic address acquisition simplifies setup without manual intervention. Built-in protection covers all critical parameters: overheating, overcurrent, short circuit, overcharge, and deep discharge.
Floor-standing Design Implementation
Thanks to its floor-standing design, installation is simple, allowing for easy relocation if needed.
Square Lithium Phosphate Battery with Innovative Design
The battery uses a modern square lithium iron phosphate cell, ensuring a service life of over 6000 cycles.
Advanced Battery Management System (BMS) Implemented
Our advanced BMS ensures unparalleled stability and extends battery life. Equipped with RS485, RS232, and CAN interfaces, it works seamlessly with leading inverter brands.
Parallel Battery Connection Enabled
To meet the flexible requirements of various application scenarios, the battery's capacity and output power can be increased as needed.
Compatibility
-
Full compatibility with Anern inverters for creating a seamless system.
-
Support for communication protocols of most well-known global inverter brands.
-
Ability to integrate into existing photovoltaic systems via CAN/RS485.
Advantages
-
Extremely long service life — over 6000 operating cycles.
-
High degree of safety due to stable LiFePO4 chemistry and built-in BMS.
-
Support for high charge and discharge currents for rapid energy recovery.
-
Natural cooling without noisy fans.
-
Compact wall-mounted design, saving space indoors.
Package Contents
-
Anern AN-LPB-N-48200 Battery (1 pc.)
-
Connection Cable Set (1 pc.)
-
Wall Mounting Bracket Set (1 pc.)
-
Communication Cable (1 pc.)
-
User Manual (1 pc.)
-
Warranty Card (1 pc.)
Packaging
-
Protective wooden or reinforced cardboard case for safe transport.
-
Internal polystyrene foam inserts for shock absorption.
-
Sealed polyethylene packaging for moisture protection during logistics.
Warranty and Service
The battery comes with an official manufacturer's warranty. Service includes technical support for BMS setup and consultations on integration with inverter equipment.
Power your home reliably today — order the Anern Npro 10 kWh for your solar station!
