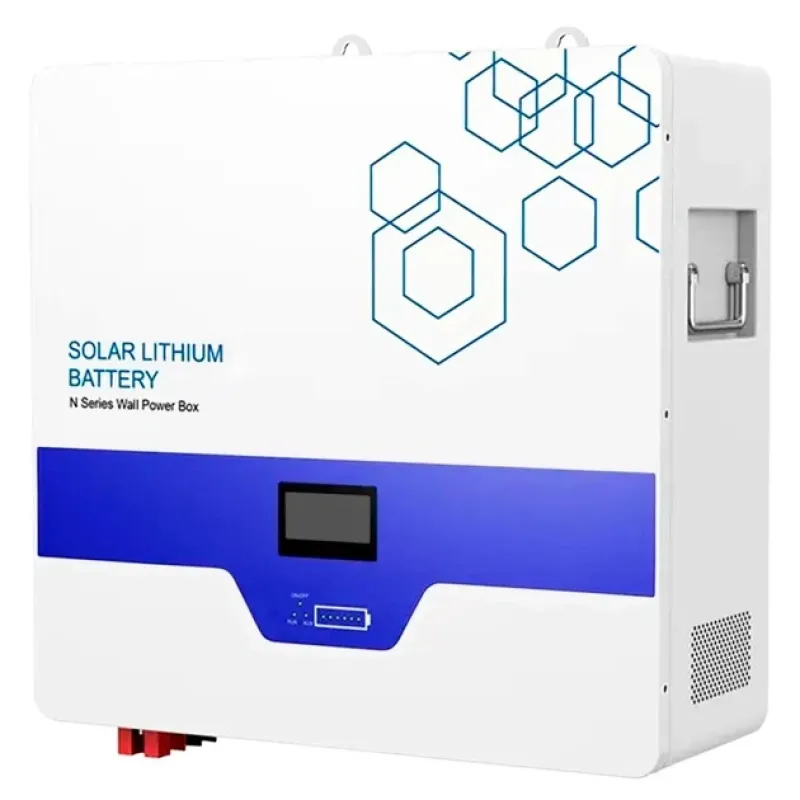

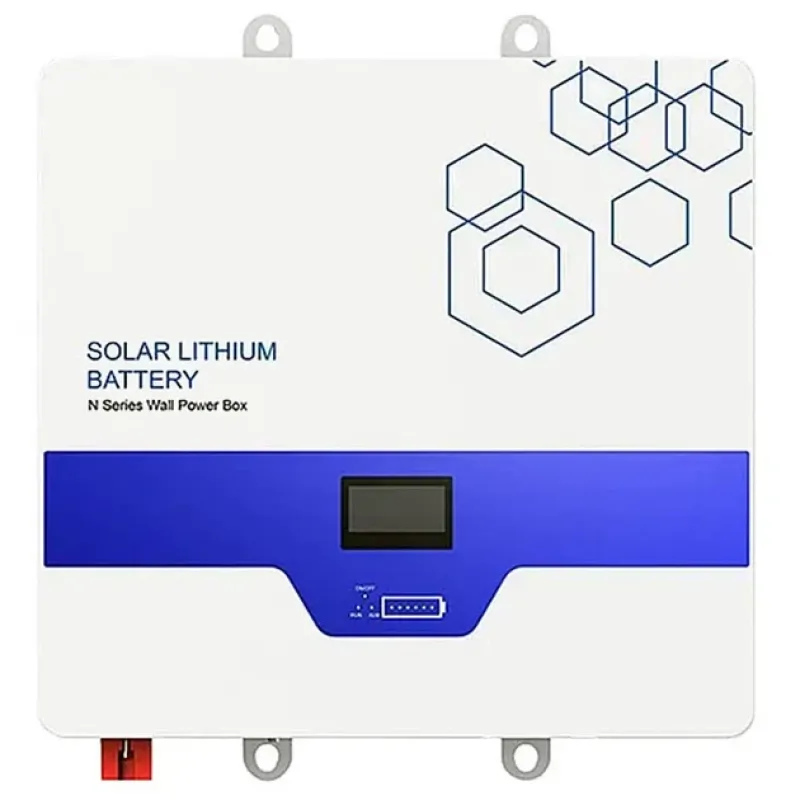

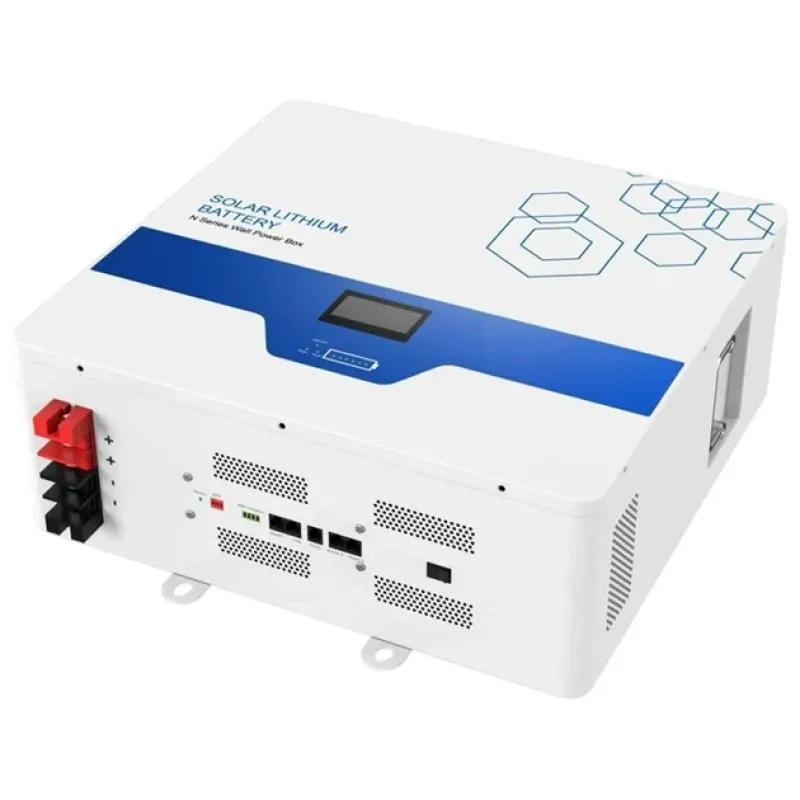

The Anern AN-LPB-N-48100 Npro series battery is a modern, highly efficient solution for energy storage systems, combining the reliability of LiFePO4 technology with intelligent control. With wall mounting and compact dimensions, this battery is ideal for home solar stations and backup power systems, ensuring stable operation for many years.
Purpose
-
Energy storage from solar power plants.
-
Providing autonomous and backup power for private homes and offices.
-
Use in uninterruptible power supply systems for critical equipment.
-
Operation in cyclic modes of deep discharge and fast charge.
Technical Specifications
| Characteristic | Value |
| Model | AN-LPB-N-48100 |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2 V (compatible with 48 V systems) |
| Nominal Capacity | 100 Ah |
| Energy Capacity | 5.12 kWh |
| Operating Voltage Range | 44.8 V - 58.4 V |
| Maximum Discharge Current | 100 A |
| Standard Charge Current | 50 A |
| Maximum Charge Current | 100 A |
| Cycle Life | 6000 cycles (at 80% residual capacity) |
| Communication Interfaces | RS232, RS485, CAN |
| Protection Rating | IP54 |
| Dimensions (WxDxH) | 485 × 475 × 180 mm |
| Weight | 44 kg |
Materials and Construction
-
Durable metal casing with IP54 protection for wall mounting.
-
Use of components from international brands for high reliability.
-

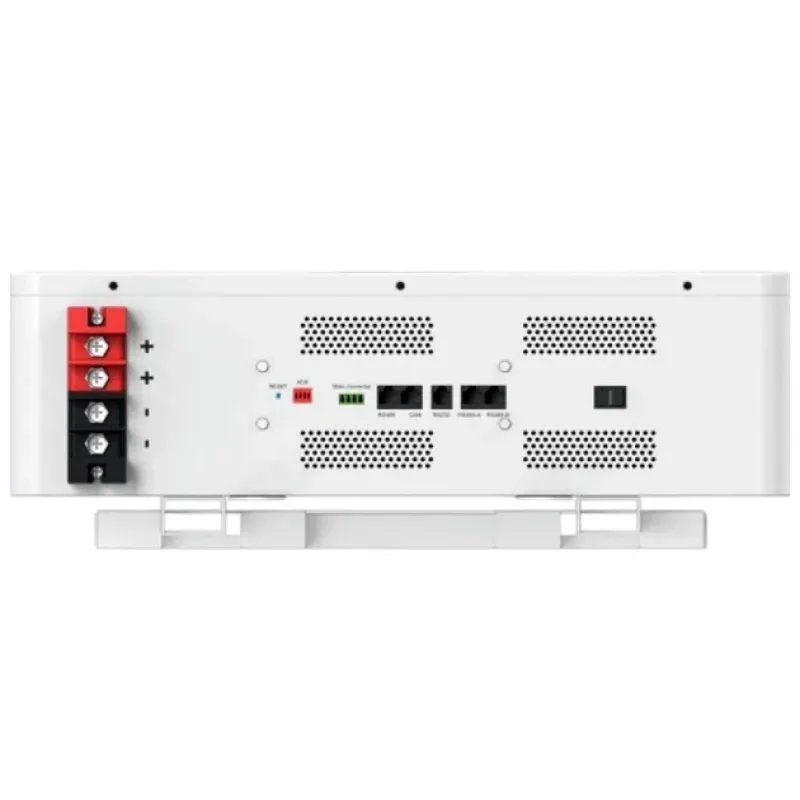

Frontal arrangement of terminals and ports for ease of installation.
-
Modular design ensuring low weight and compactness.
Features and Capabilities
The system is equipped with an intelligent BMS (Battery Management System) that automatically monitors the charge level, voltage, and temperature of each cell. Parallel connection of multiple modules with automatic address acquisition is supported, allowing for easy system power expansion. The presence of a "one-button" switch makes operation as simple as possible.
Compatible Intelligent BMS System
Equipped with built-in Battery Management System (BMS) technology, it provides protection against overcharging, over-discharging, short circuits, and overheating, ensuring safe and stable operation.
Suitable for Parallel Operation with Multiple Units
The system supports parallel connections of multiple batteries, allowing for seamless capacity expansion. In addition, it features automatic address distribution, simplifying installation and reducing manual setup efforts.
Reliable Operation Over Time
Designed for multiple charging and discharging cycles, it ensures a consistent power supply and provides a long service life of over 8 years, ideal for intensive applications.
Reliable Power Solutions
Stable energy solutions tailored to meet diverse needs. From commercial applications to industrial operations, our innovative technologies ensure reliability, efficiency, and uninterrupted performance.
Compatibility
-
Full compatibility with Anern brand inverters.
-
Support for operation with most popular hybrid inverters (thanks to CAN/RS485 protocols).
-
Compatibility with 48 V systems.
Advantages
-
Long service life — over 8 years of operation.
-
Safe LiFePO4 chemistry, resistant to overheating and spontaneous combustion.
-
Multi-level protection system: against short circuit, overload, deep discharge, and overheating.
-
Natural cooling without excessive noise.
-
Fast charging with high current.
Package Contents
-
Anern AN-LPB-N-48100 Battery Module (1 pc.)
-
Connection Cable Set (1 pc.)
-
Wall Mount Bracket (1 pc.)
-
Mounting Hardware Kit (1 pc.)
-
User Manual (1 pc.)
Packaging
-
Factory protective packaging with shock-absorbing materials.
-
Rigid cardboard box for safe transportation.
-
Marking in accordance with international standards for lithium battery transport.
Warranty and Service
The product is CE, ROHS, UN38.3, and MSDS certified. PJSC "ROKS" provides official warranty support and service in accordance with the manufacturer's regulations.
Choose energy independence with a reliable Anern battery — order now!
