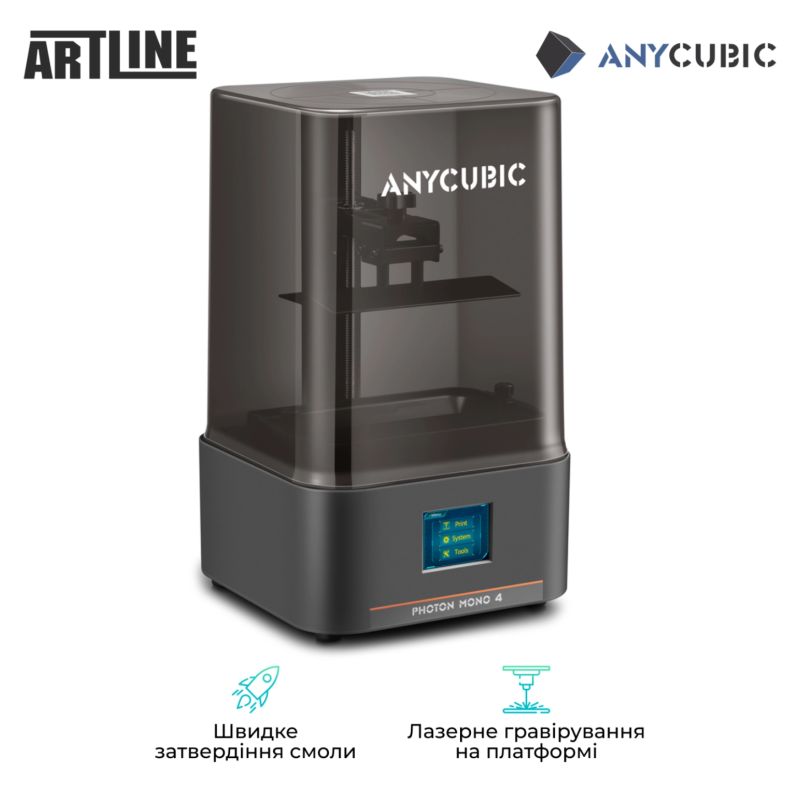

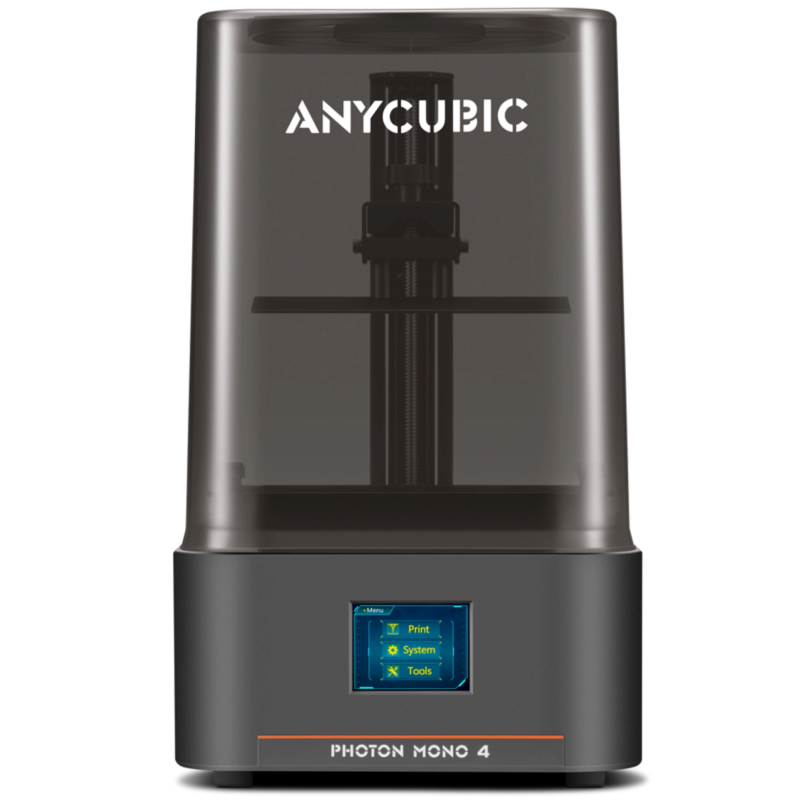

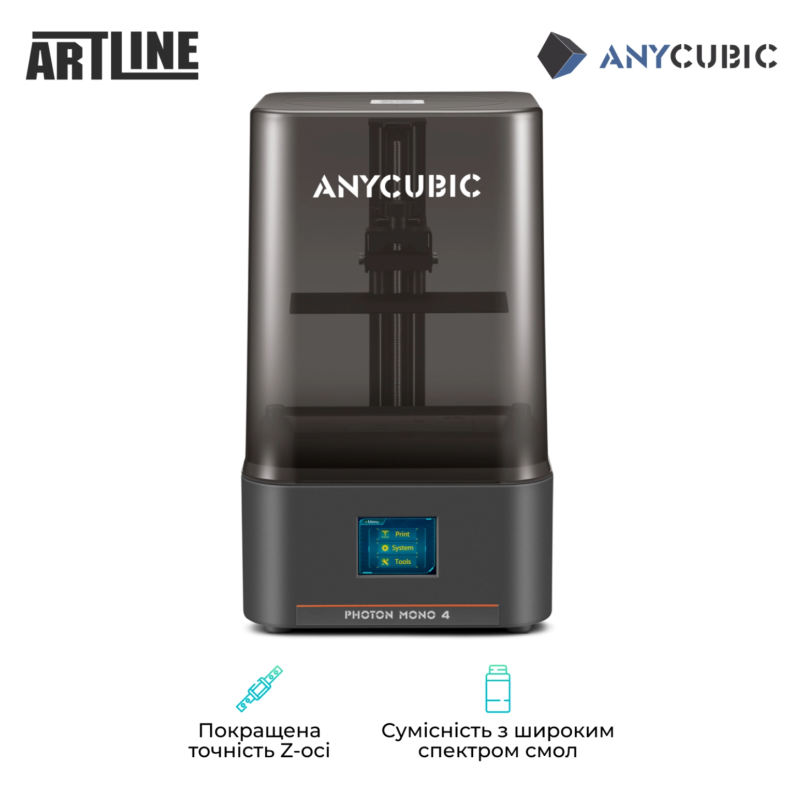

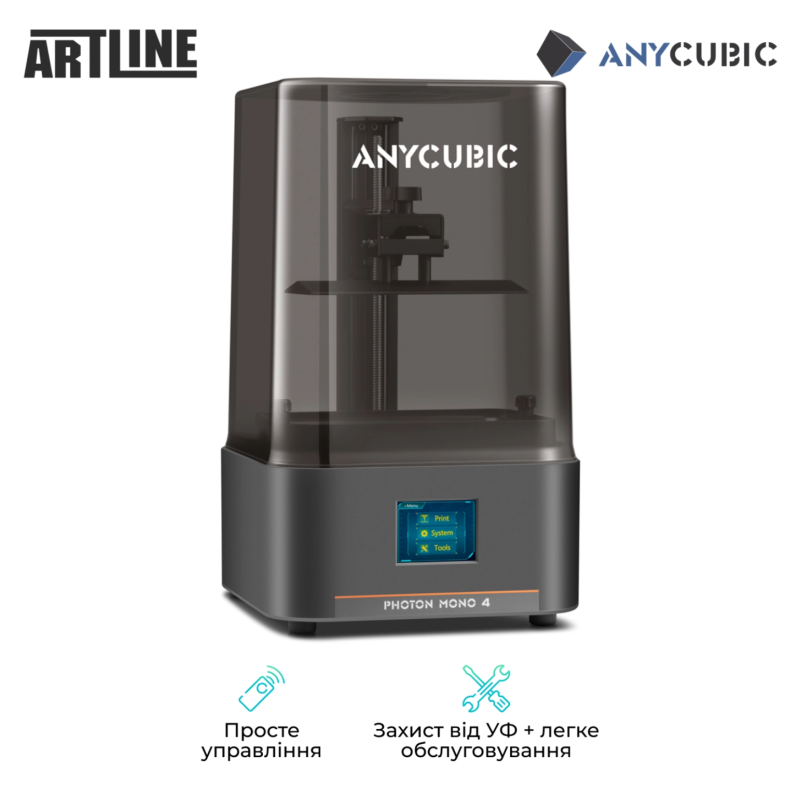

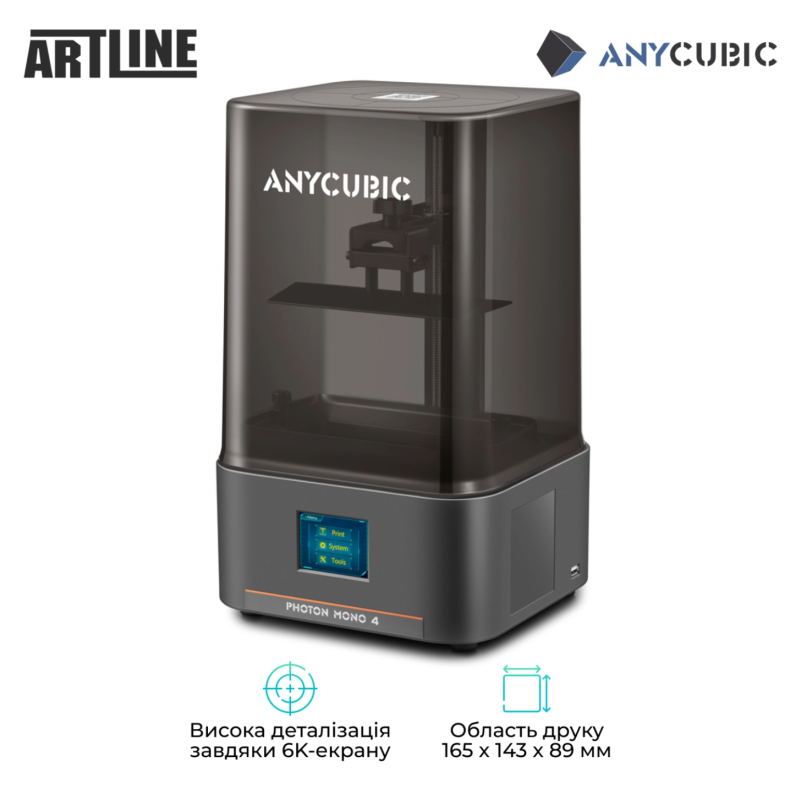

Anycubic Photon Mono 4 3D Printer — Detailed Description

The Anycubic Photon Mono 4 3D printer is a compact desktop photopolymer 3D printer that combines high precision, print speed, and ease of use. This device is ideal for home use, hobbies, professional modeling, and small-batch production. The description includes all key technical parameters and characteristics that allow evaluating the model's capabilities for creating anatomical models, jewelry prototypes, miniatures, and other precise parts.

Key Features

Name: Anycubic Photon Mono 4 3D Printer
Brand: Anycubic
SKU: PM40BK0A-O
Code: 00-00080383
EAN: 6974662351036
Type: 3D Printer
Purpose: Home Use

Optics and Print Quality

The Photon Mono 4 is equipped with a 7-inch 10K high-resolution monochrome LCD display with a pixel pitch of up to 17×17 microns on the XY axes, ensuring ultra-fine detail and texture reproduction. The advanced parallel matrix LED backlight guarantees light uniformity at 80–90% and an intensity of about 3000 (some sources state 3000 W/cm-2; technical parameters also feature 3000 ±10% μW/cm²), ensuring stable polymerization across the entire print area and minimizing artifacts. The laser-engraved platform version 2.0 provides excellent first-layer adhesion.

Technical Print Parameters

Print Technology: MSLA (Masked Stereolithography)
Enclosure Type: Closed
Build Volume / Print Area: 153.4 × 87 × 165 mm
Print Speed: 70 mm/h
Number of Print Heads: 1
LCD Screen: Monochrome, 7 inches (10K, 17×17 microns XY)

Control and Material Compatibility

Platform calibration is implemented using a 4-point scheme, ensuring stable and precise adjustment. An intuitive 2.8-inch TFT touchscreen is provided for convenient control. The Anycubic Photon Mono 4 supports most available photopolymers: standard resins, biodegradable resins, water-washable, and plant-based resins, allowing work with various materials for medical, jewelry, and artistic applications.

Interfaces and Software

Interfaces: USB
Software: Photon Workshop

Package Contents

• Gloves
• USB drive
• Resin vat
• 3D printer
• Manual
• Packaging
• Print platform
• Tool kit

Dimensions and Weight

Dimensions (unpackaged): 230 × 235 × 391 mm
Weight (unpackaged): 4 kg
Package Dimensions: 480 × 300 × 300 mm

Additional Information

Country of Origin: China
Warranty: 12 months

Who is the Photon Mono 4 suitable for?

This model is suitable for modelers, jewelers, medical designers, artists, and desktop manufacturing enthusiasts who require high detail, reliable first-layer adhesion, and a compact, user-friendly device. Thanks to support for various resin types and a simple interface, you will quickly move from project to finished product.
