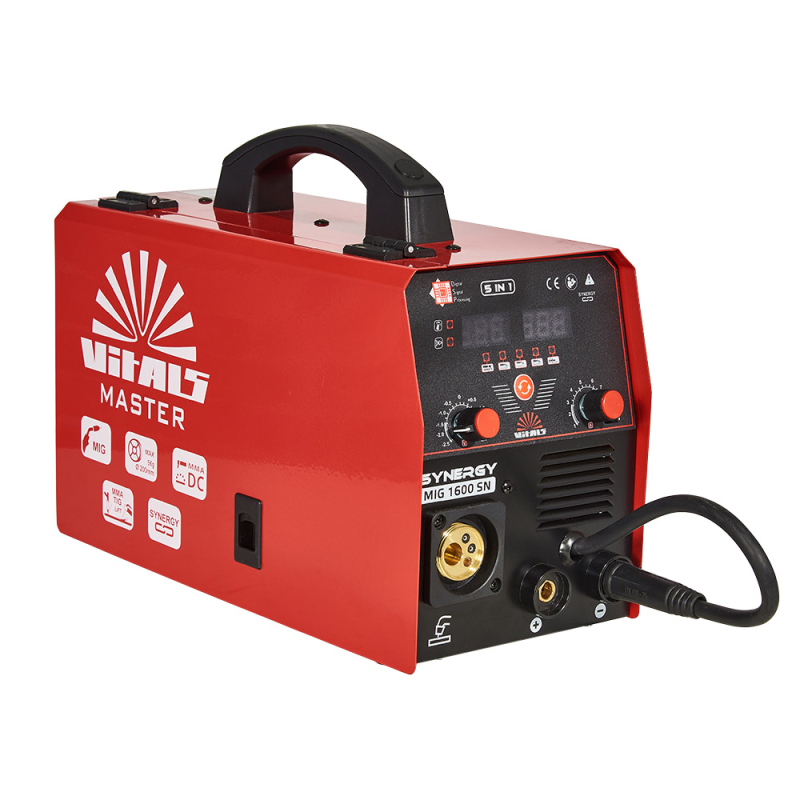

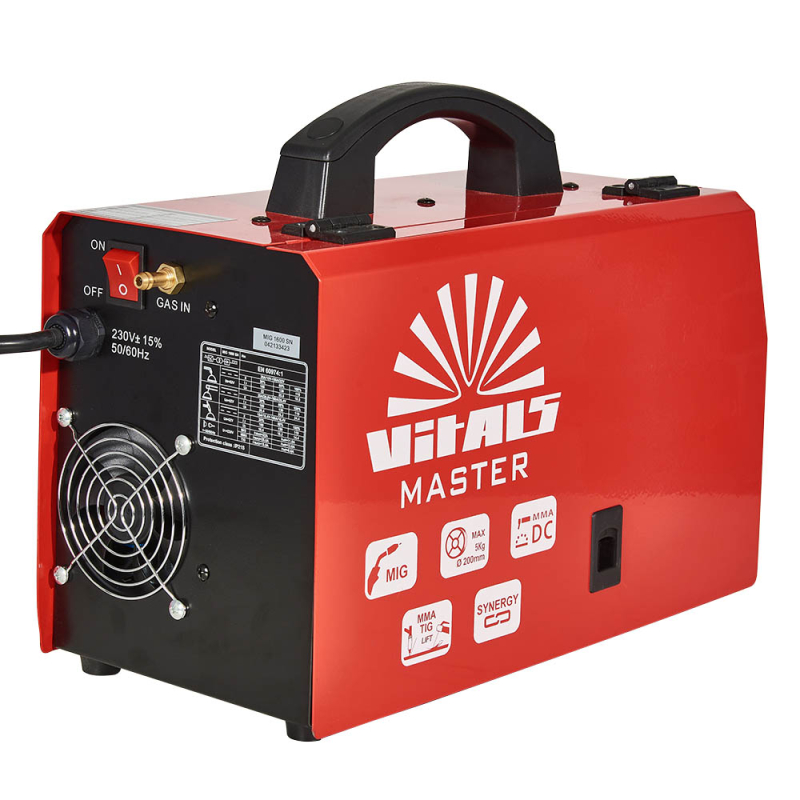

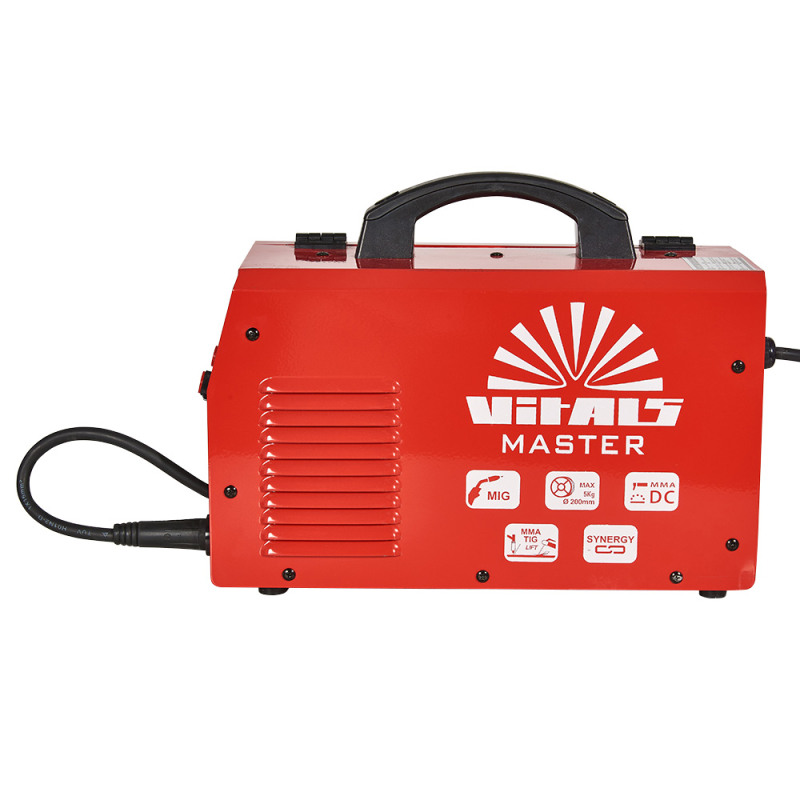

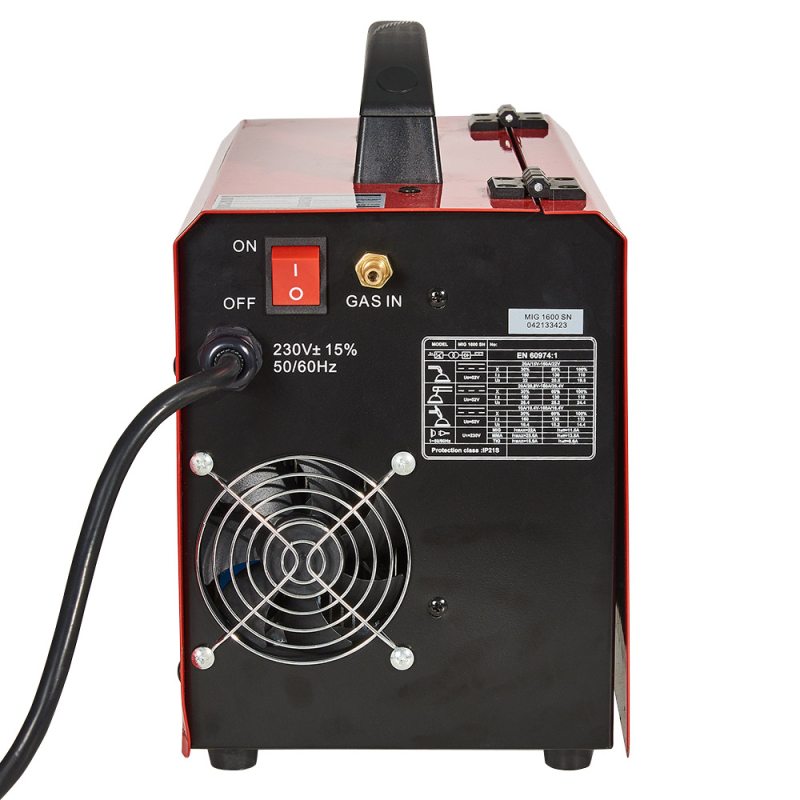

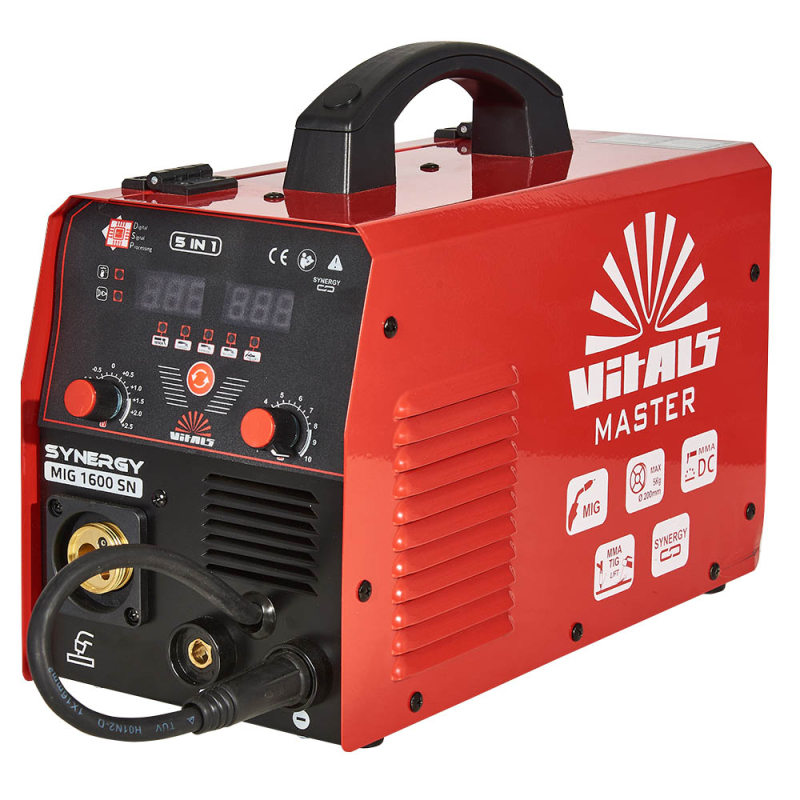

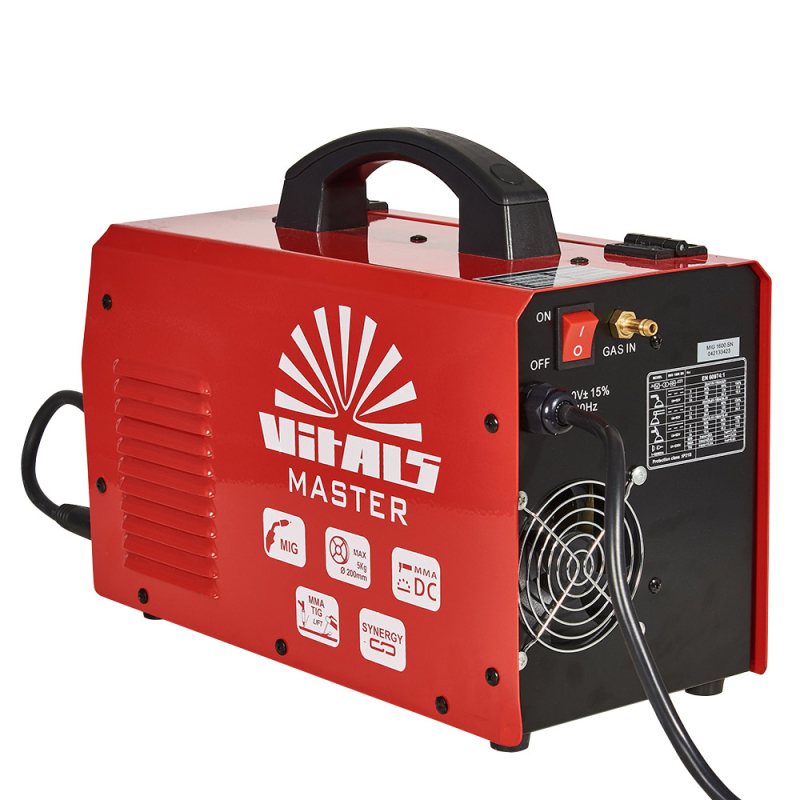

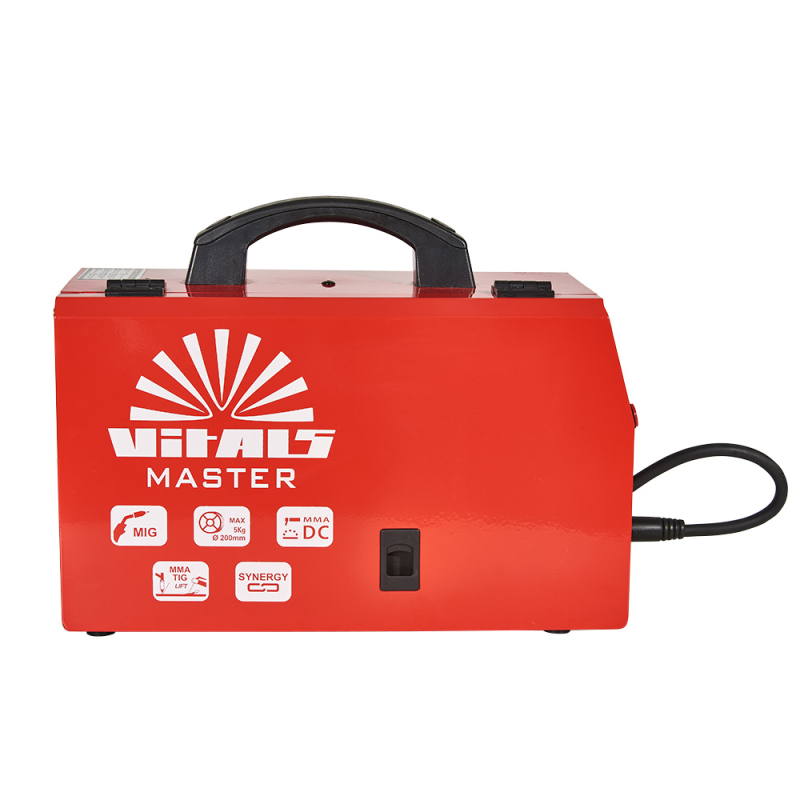

Welding Machine Vitals Master MIG 1600 SN

Description of Vitals Master MIG 1600 SN Welding Machine

The semi-professional Vitals Master MIG 1600 SN welding machine is designed for semi-automatic arc welding in a shielding gas environment (MIG-MAG), as well as for working with flux-cored self-shielding wire in NO GAS mode. It is an excellent, reliable assistant in a garage, car service, or production facility. The machine is used in car repair, construction, small-scale production, and during the installation of metal structures.

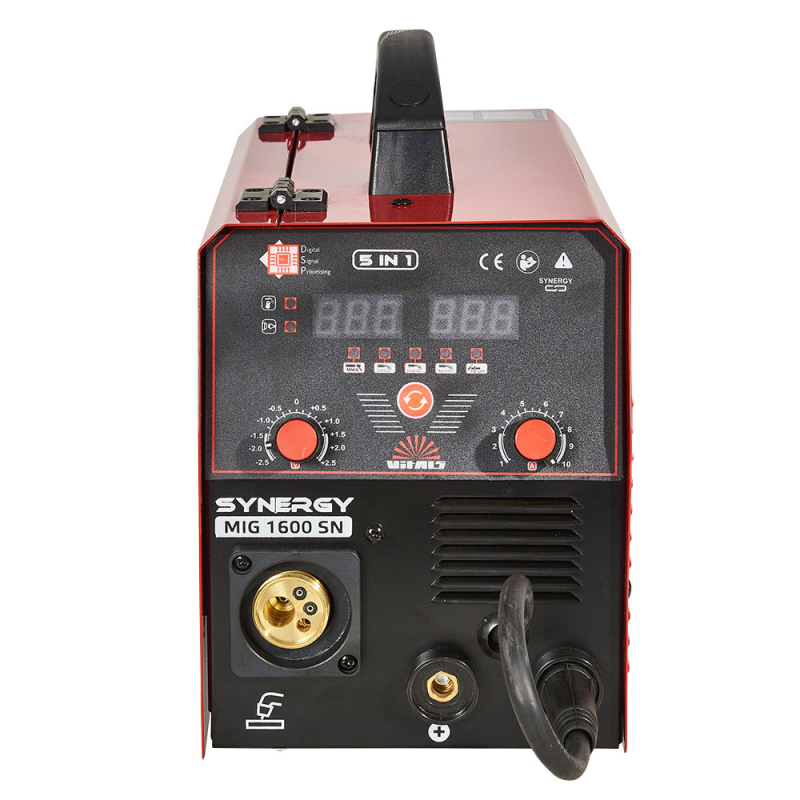

Thanks to its long duty cycle at maximum currents, the welding machine is perfectly suited for both professional and domestic use. The well-visualized control of all important welding parameters on the front panel allows the semi-automatic machine to be configured for a wide range of welding tasks.

The Vitals Master MIG 1600 SN welding machine can operate in three modes: MMA, MIG-MAG, and Lift-Tig. MMA (Manual Metal Arc) mode is manual electric arc welding using coated electrodes. In an electric arc, the electrode melts and forms a weld. The coating protects the welding zone from air, prevents metal oxidation, and remains at the weld in the form of slag.

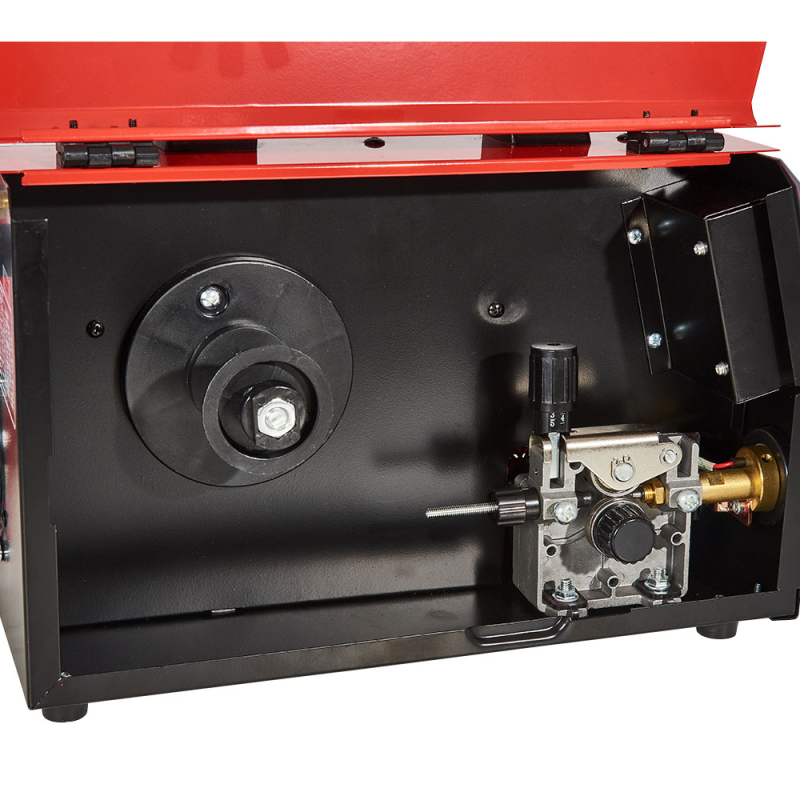

MIG-MAG (Metal Inert/Active Gas) is arc welding with a consumable metal electrode (wire) in an inert or active shielding gas environment with automatic filler wire feeding. This semi-automatic welding in a shielding gas environment is the most versatile and widespread welding method in industry.

Lift-Tig mode (contact arc ignition) is used for argon arc welding with a tungsten electrode. The arc is ignited by touching the tungsten electrode to the surface of the workpiece, followed by a smooth lift until an arc of the desired size is achieved. This function ensures smooth and rapid ignition, stabilizes the arc, preserves the electrode's sharpening angle, and eliminates "tungsten contamination" of the weld pool. This mode allows for beautiful, strong, and reliable welds with uniform penetration through the metal thickness.

An additional advantage of the machine is its ability to weld even with significant drops in mains voltage. The Vitals Master MIG 1600 SN can operate with voltage drops down to 160 volts.

The use of modern developments and technologies guarantees excellent performance and durability of the machine, with a warranty period of 36 months.

Arc Force (ForceArc) Function

The welding current strength is adjusted automatically depending on the distance between the electrode and the metal. Specifically, arc force (increase in welding current) occurs at the moment a metal droplet separates from the electrode. This reduces the likelihood of sticking and increases arc stability.

Hot Start Function

For a smooth start, the "Hot Start" function is implemented. At the moment of ignition, the welding machine automatically increases the current strength, ensuring easy arc ignition. After this, the current strength returns to the set parameters.

Anti-stick Function (Antistick)

Designed for easy electrode detachment if it sticks. When the electrode sticks to the metal, a short circuit occurs. If the duration of the short circuit reaches 0.6 seconds, the machine reduces the current to a minimum. This protects the electrode from melting and coating shedding, reduces spatter formation, and allows for easy electrode detachment to continue work.

Lift-Tig Mode (Contact Arc Ignition)

Used for argon arc welding with a tungsten electrode. The arc is ignited by touching the tungsten electrode to the surface of the workpiece, followed by a smooth lift until an arc of the desired size is achieved. This ensures smooth and rapid ignition, arc stabilization, preservation of the electrode's sharpening angle, and eliminates "tungsten contamination" of the weld pool. This mode allows for beautiful, strong, and reliable welds with uniform penetration through the metal thickness.

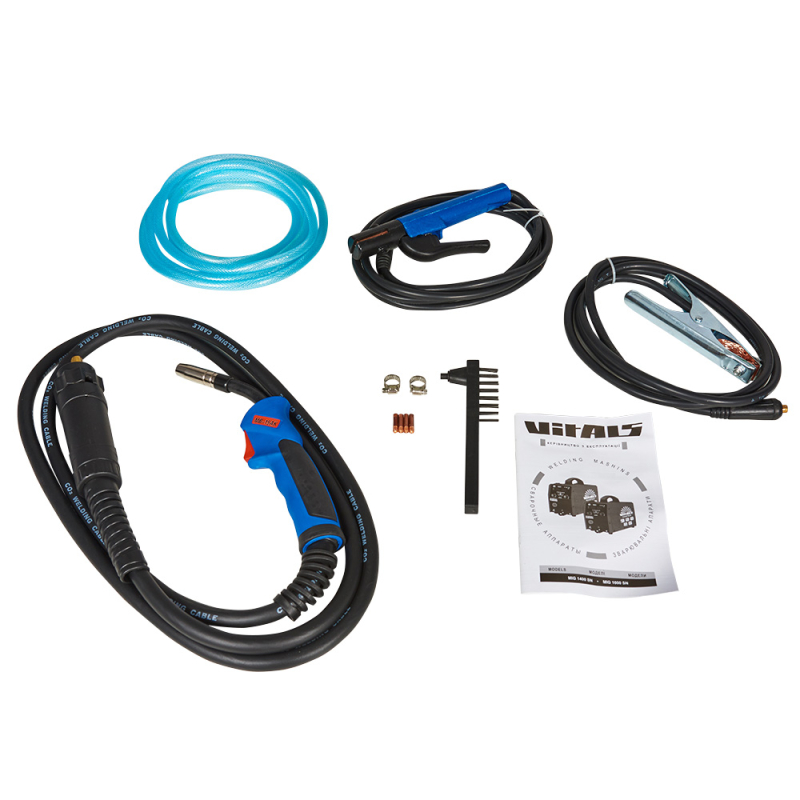

Extended Package Contents

In addition to the machine itself with a carrying handle, the package also includes:

• MIG torch (3 meters);
• 300 A electrode holder with 100% copper welding cable. Cable cross-section 16 mm2, length 2.5 meters;
• 300 A ground clamp with 100% copper cable. Cable cross-section 16 mm2, length 2.5 meters;
• Gas hose 2 m long, 9 mm diameter;
• Contact tip Sx2 0.8 mm for steel welding – 2 pcs;
• User manual.
