Product Code: FA94-17934-94
In Stock
2 560 грн.
Buy this product in 1 click:
Main specifications
Additional Settings: motion detection, privacy zones
Alarm Systems: no
Angle of View (degrees): Horizontal: 100°, vertical: 51°, diagonal: 115°
Appendix: Xmeye
Application Programming Interface (API): ONVIF
All specifications
We will deliver this product:
Payment
Description

Area of application.

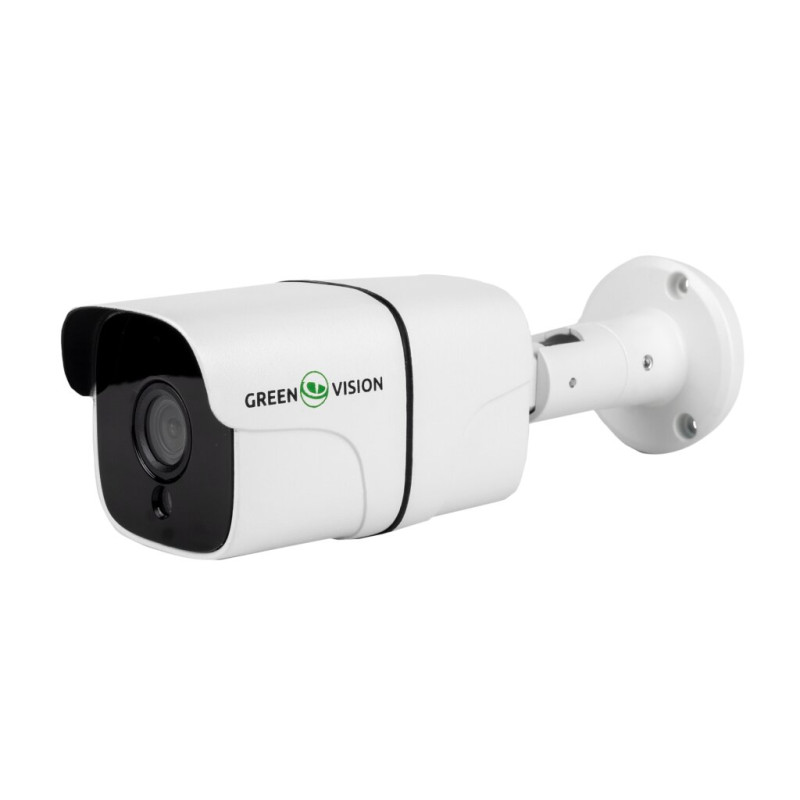

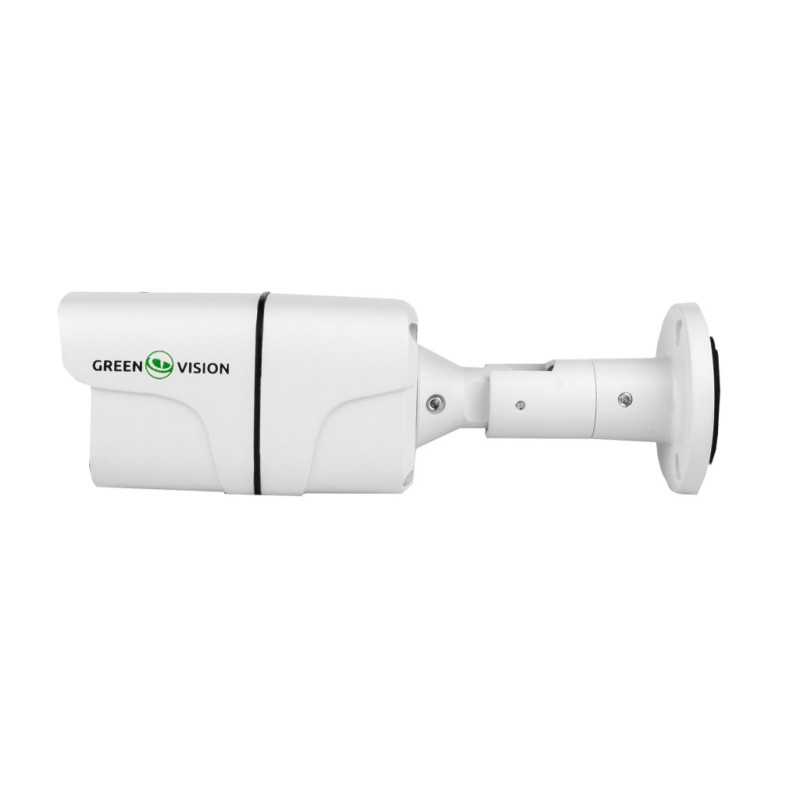

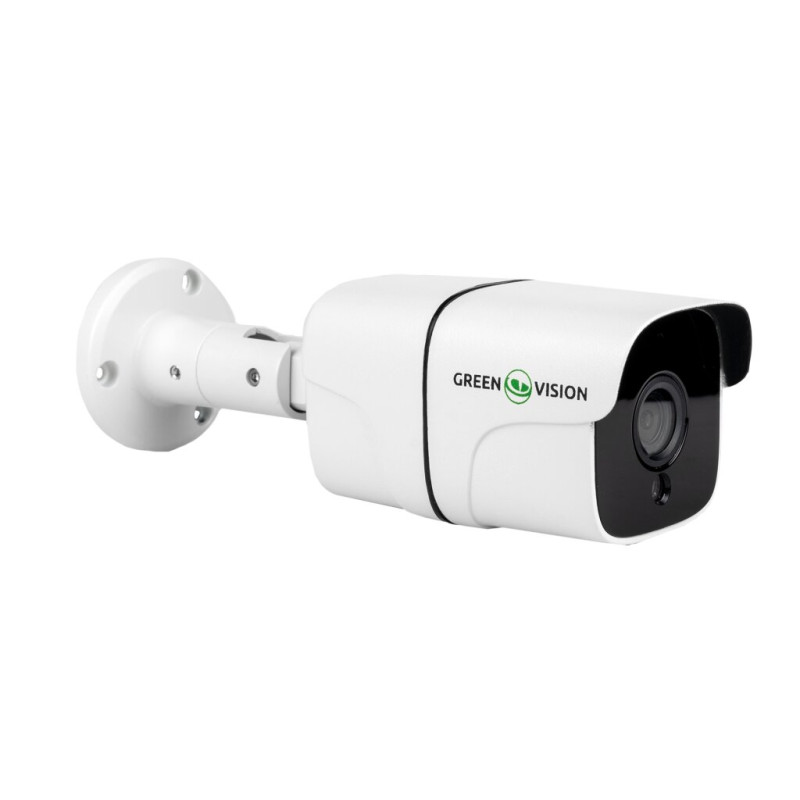

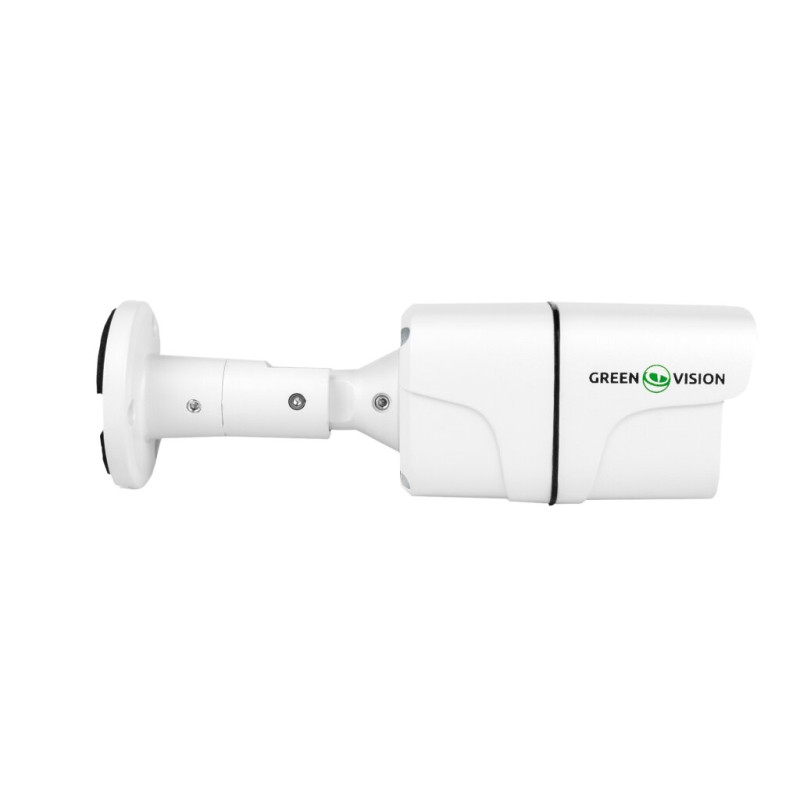

The GreenVision GV-162-IP-FM-COA50-20 POE 5MP (Lite) IP camera in a metal casing is used for video surveillance of the adjacent territory of residential buildings, office buildings, warehouses, industrial premises, etc.

The functional capabilities of the GV-162-IP-FM-COA50-20 POE 5MP (Lite) allow recording not only video but also sound. The model's intelligent features allow setting up private zones. The camera can detect object movement with high accuracy and send alarm signals.

Lite series surveillance cameras are specially designed for users who value high-quality equipment and the ability to manage their budget efficiently.

The high light sensitivity of the GreenVision GV-162-IP-FM-COA50-20 POE 5MP (Lite) outdoor IP camera ensures high-quality images during the day (without overexposure and glare) and a clear picture with minimal illumination.

Technical specifications.

Image resolution - 5 MP allows obtaining an image in 2592*1944 format.

3.6 mm fixed-focus lens.

20-meter infrared illumination with Smart IR function, which allows adjusting the intensity of the camera's LEDs to compensate for the distance to the object.

H264/H265 compression formats allow saving hard disk space without significant loss of quality when archiving recordings from surveillance cameras.

The camera is compatible with equipment from other manufacturers via the Onvif protocol.

Specifications
Additional Settings motion detection, privacy zones
Alarm Systems no
Angle of View (degrees) Horizontal: 100°, vertical: 51°, diagonal: 115°
Appendix Xmeye
Application Programming Interface (API) ONVIF
Audio built-in microphone
Automatic Gain Control (AGC) Auto
Backlight Compensation (BLC) Off / User BLC
Bitrate Control Method CBR/VBR
Built-in Microphone is
CC (customer count) no
CD (Crowd Density detection) no
Compatibility ONVIF/XM
Day and Night IR-cut filter with auto-switching (Day/Night/Auto/Image/Schedule)
Electronic Shutter Speed 1/5 ~ 1/10000s
FD (Face Detection) no
Features -
Focal length, mm 2.8
Form Factor Cylindrical
Functionality Supports WEB, OSD, live video streaming, motion detection and IO alarm, storage/playback/upload to external devic
Hardware Reset is
Height, mm 64
HM (Heat Map) no
Housing material metal/plastic
Illumination Type IR
Image resolution 2880x1616
Image Settings Automatic white balance; automatic exposure; backlight compensation; D-WDR support; electronic system p
Ingress Protection (IP) Rating IP66 Water Resistance
Input voltage / current D12V/POE
IP address IPv4
Kit Contents GreenVision Camera; Mounting hardware kit; RJ45 waterproof cable connector; Instruction manual
LCD (Line Crossing Detection) no
Length, mm 102
Lens type fixed
LPR (License Plate Recognition) no
Main Stream 2880x1616, 1920x1080
Matrix 1/2.8 Low-illumination CMOS Sensor
Maximum frame rate, fps 1~30 fps variable
Micro SD Support no
Min. Sensitivity, Lux 0.01
Minimum Illumination Color image: 0.01 lux at F1.2 (AGC ON); B/W image: 0.001 lux F1.2 with IR ON
Network (Video Output) 1*RJ45 10/100M adaptive Ethernet port
Night illumination m 20
Operating temperature, °C -40 ~ +60
PID (Perimeter Intrusion Detection) no
Power Connector Round interface ⊘5.5 mm
Power Consumption (IR OFF) 2W-3W
Power Consumption (IR ON) 4W-5.5W
Power consumption, W 3
Power, V/mA 12/1000
Privacy Masking Off/On (4 zones, rectangle)
Processor GK7605 V100
Protection IP address filter; strong password; authenticated username and password
Protection Type IP66
QD (Queue Depth) no
Resolution (total) Main stream: 5MP@25fps 4MP@25fps 3MP@25fps; 1920*1080@25fps; Sub stream: 800*448@25fps
Resolution, Mpx 5
ROE is
ROE Support is
RSD (Rare Sound Detection) no
Sensor SC5239
Sensor (matrix) size 1/2.8°
Sensor type Low illumination CMOS sensor
Series Lite
SOD (Supplies On Demand) no
Streaming capability Dual stream (main/sub)
Streaming method Unicast/Multicast
Sub Stream 640x480, 640x350
Transmission speed 64-12000 KB/s
Two-Way Radios no
Type IP
Video Compression H.264, H.265
Video compression format H.265 +, H.265, H.264
Video Quality Settings 256Kbps ~ 8Mbps
Video resolution 2880x1620
Volume, m³ 0.000392
Warranty, months 12
Weight, kg 0.35
Wide Dynamic Range (WDR) WDR
Width, mm 60
Color white
