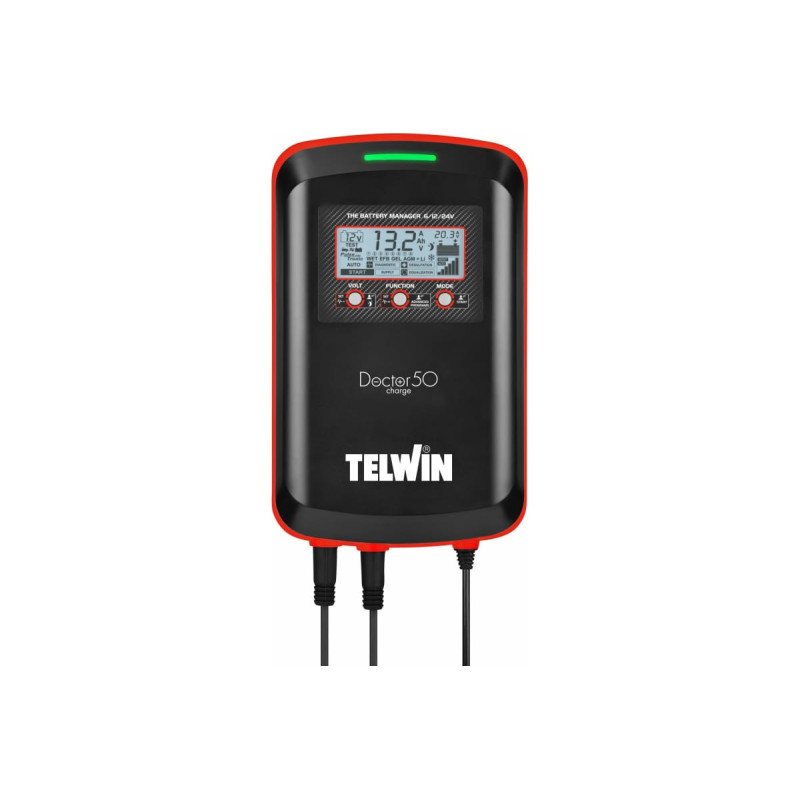

Telwin DOCTOR CHARGE 50 230V 6V/12V/24V Charger (807598) – a portable electrical device for charging batteries with wide versatility. Suitable for 6, 12, and 24 V batteries. It has an additional function of starting low-power engines, making it useful for cars, motorcycles, boats, and small tractors.

Features and Benefits:

• Versatility: works with all types of WET, GEL, MF, AGM, Pb-Ca, EFB, and Li-Ion batteries.

• Wide capacity range: supports batteries from 10 to 600 Ah.

• Diagnostic functions: battery status check and capacity testing.

• Battery recovery: supports desulfation and capacity recovery modes.

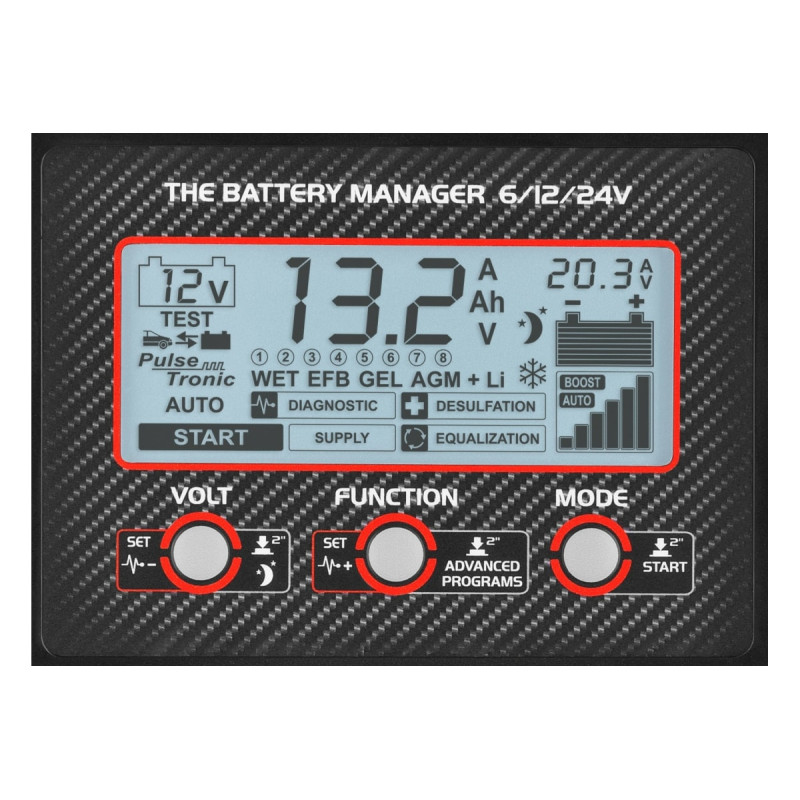

• Easy control: LCD display shows current charging parameters and settings.

• Compact and portable: lightweight body weighing 3.7 kg and dimensions of 325 × 160 × 100 mm.

Technical Specifications:

• Power supply: 230 V, 50/60 Hz

• Power: 600 W

• Output voltage: 6 / 12 / 24 V

• Effective charging current: 45 / 23 A

• Starting current (Boost/Start): 40 / 70 A

• Recommended battery capacity: 10–600 Ah

• Battery types: WET, GEL, MF, AGM, Pb-Ca, EFB, Li-Ion

• Dimensions: 325 × 160 × 100 mm

• Weight: 3.7 kg
