SkyRC T1000 Charger
Model: SkyRC T1000 LiPo 1-6s 20A 450W AC. Manufacturer: SkyRC. This dual-channel professional charger is designed for drone and electronics enthusiasts and professionals who need a fast, reliable, and multifunctional solution for battery testing and maintenance.
The SkyRC T1000 is equipped with a powerful Arm Cortex-M4 processor and proprietary HyperBoost technology, which significantly speeds up the battery charging process (up to 20 times faster compared to some competitor models). Its compact body with a convenient handle makes the device portable for field use, while thoughtful ergonomics ensure comfortable operation during laboratory tests.
Key Features
- Two fully independent charging channels with intelligent power distribution.
- Maximum charging power: up to 450W when powered by AC mains and up to 1000W when using a DC source.
- Output port for 5V–27V with adjustable current 1A–15A, allowing the T1000 to be used as a stabilized power supply for additional devices.
- Supports optional PD Power Charging Hub (1A3C) for extended charging scenarios.
- Integration with BD350 discharger (SKU SK600147-01) for discharging batteries up to 40A — useful for high-current testing.
- Detailed monitoring of charge/discharge curves via the Charger Master app to detect defective batteries and for real-time control.

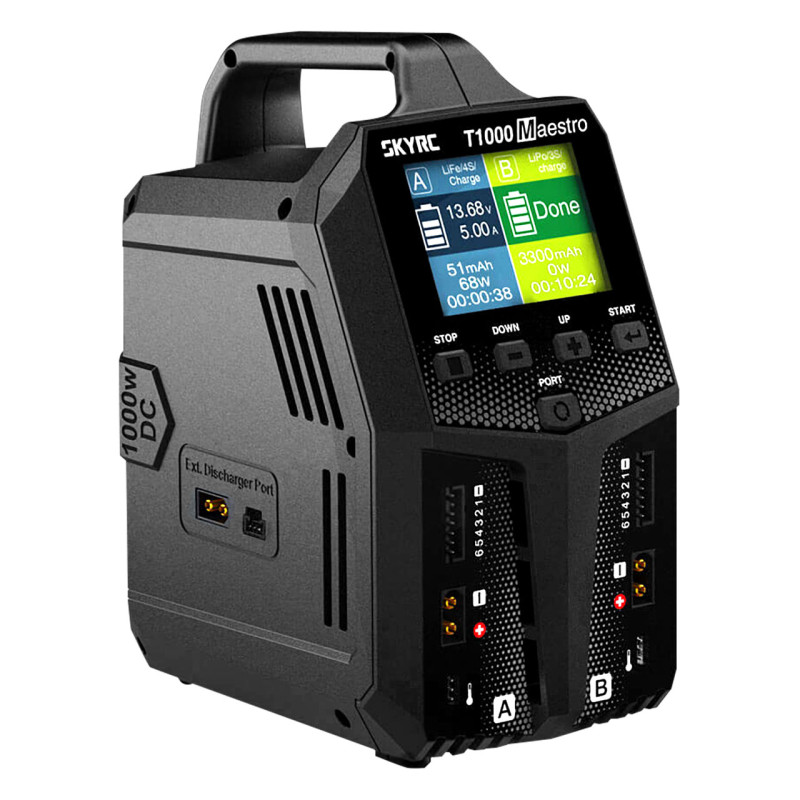

- 2.8-inch high-contrast LCD display with intuitive ColorX interface.
- Intelligent fan control for optimal cooling during intensive operation.
- XT60 ports for battery connection.
- Supports interface languages: German, English, Japanese, and Chinese.
- Comprehensive safety measures to protect batteries and the device itself.
Supported Charging Modes
The SkyRC T1000 provides a wide range of modes for various battery types, making it a versatile tool:
- LiPo / LiFe / LiIon / LiHV (1S–6S): Balance, Charge, Discharge, Storage, Parallel.
- NiMH / NiCd (4S–15S): Charge, Cycle, Re-Peak, Discharge.
- Pb (3S / 6S / 12S): Normal mode, AGM charge, Cold charge, Discharge.
Specifications
| Input Voltage | AC: 100V – 240V (50-60Hz) |
| Input Voltage | DC: 10V – 30V |
| Output Voltage | DC: 5V – 27V |
| Output Current | DC: 1.0A – 15.0A |
| Charging Power: max. | 450W (AC) 1000W (DC) |
| Discharge Power: | 10W (main port) max. 37W (balance port) max. 350W (external) |
| Charging Current: | 0.1A – 20.0A; 20.0A – 35.0A (parallel charging) |
| Discharge Current: | 0.1A – 2.0A; 0.1A – 40.0A (external) |
| Balance Current: max. | 1.5A |
| Cells (Li): | LiPo / LiFe / LiIon / LiHV: 1S – 6S |
| Cells (Ni): | NiMH / NiCd: 4S – 15S |
| Cells (Pb): | Pb: 3S / 6S / 12S |
| Weight: | 1370 g |
| Dimensions: | 190.3 x 153.5 x 100 mm |
The SkyRC T1000 is ideal for those who need a versatile charger: from mobile field use to laboratory measurements. The combination of high power, intelligent control algorithms, flexible charge and discharge modes, and a user-friendly interface makes this device an optimal choice for hobbyists and professionals working with drones and various battery types.
