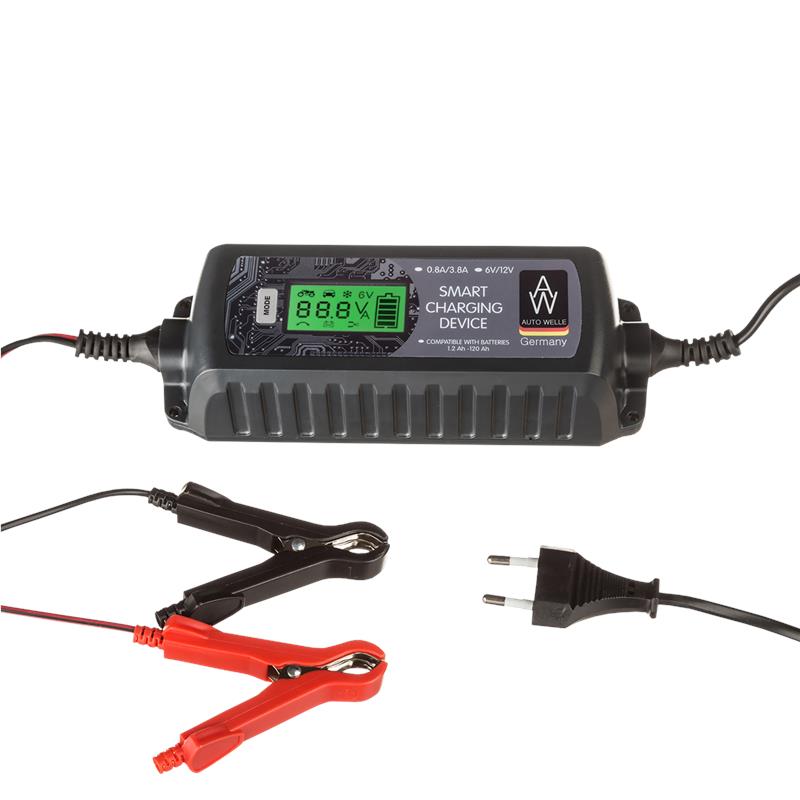

The AW05-1204 Smart Charger by AUTO WELLE is designed for charging lead-acid, gel, and AGM batteries with capacities of 1.2–120 Ah, used in passenger cars, light commercial vehicles, motorcycles, and other vehicles and mechanisms.

Features and Functions:

• Backlit LCD display ensures comfortable use of the device at any time of day.

• Next to the screen is the Mode button for changing the charging mode. If the mode is not selected manually, the device automatically sets:

  • 12V batteries – slow charging mode

  • 6V batteries – standard charging mode

• Reduced charging current: 0.8 A

• Standard charging mode for 12V batteries: current 3.8 A

• Winter mode for 12V batteries at temperatures below 5 °C, with increased charging voltage, ensuring effective battery recovery and extending its service life

• Charge indicator: the number of rectangles in the battery outline shows the charge level (1 rectangle = 20% charge). If the outline stops flashing and all rectangles are visible, the battery is charged

Protection System:

• short circuit protection

• reverse polarity protection

• charger overheating protection

• battery overcharge protection

Technical Specifications:

• Voltage: 6/12 V

• Operating modes: slow, standard, winter

• Maximum output current: 0.8 / 3.8 A

• Rated input voltage: 210–240 V, 50 Hz

• Operating temperature: -20 °C … +50 °C

• Battery capacity: 1.2–120 Ah

• Backlit LCD display

• Protection class: IP65
