Icharger Duo 4010 Charger — Intelligent Dual-Channel Charging System
The Icharger Duo 4010 charger from Icharger is a powerful and multifunctional solution for charging and maintaining batteries in both hobby and professional applications. The device belongs to the category: Drones and Quadcopters > Chargers and combines two channels, high power capacity, and advanced protective and programmable functions for safe and precise operation with various battery types.
Key Advantages
The Icharger Duo 4010 is designed for those who need fast, reliable, and flexible charging. The main advantages of the device are:
- Two independent channels with synchronous operation capability to increase maximum power and current.

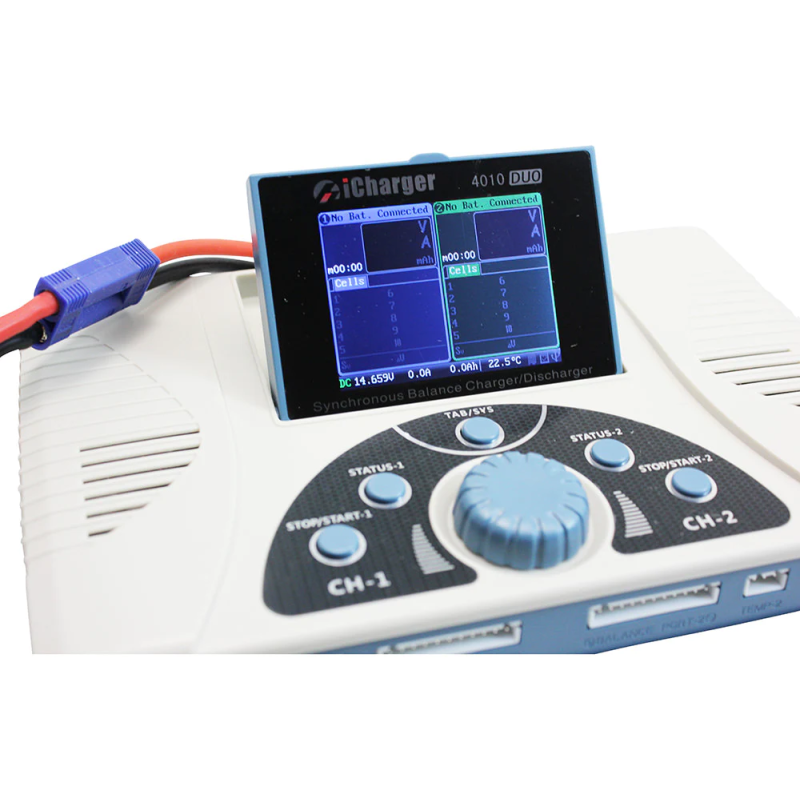

- Color informative display for monitoring the charging process and settings.
- Programmable functions that allow customizing modes for specific batteries.
- Advanced protection systems: short circuit, overload, overheating, and cell balancing function.
- High balancing accuracy (10 mV) and balancing current of 1.2A per channel, extending battery life.
Technical Specifications
| Specifications | Value |
|---|---|
| Charger Type | Intelligent |
| Number of Channels | Two |
| Maximum Power | 1400 W |
| Battery Types | LiPo, LiFe, LiIon, NiMH, NiCd |
| Voltage Range (Battery) | 10V - 34V |
| Display | Color, informative |
| Protection Functions | Short circuit, overload, overheating protection, battery balancing |
| Programmable Functions | Yes |
| Portability | No |
| Weight | 1470 g |
| Dimensions | 210 x 140 x 80 mm |
| Input Voltage | 9-50V DC |
| Input Current Limit | 65A |
| Max Charge Power | 1400 W per channel at > 23.5V (up to 2000 W in synchronous mode) |
| Charge Current Range | 0.05 ~ 40.0A per channel, or up to 70A in synchronous mode |
| Discharge Power | 130 W per channel, or up to 200 W in synchronous mode |
| Max Regenerative Discharge | 1400 W per channel, or up to 2000 W in synchronous mode |
| Max External Discharge Power | 1600W @ 40V/40A, or up to 3200W in synchronous mode |
| Balancing Current | 1.2A per channel, or up to 2.4A in synchronous mode |
| Balancing Accuracy | 10 mV |
| LiPo / LiIo / LiFe | 1 ~ 10 cells per channel |
| NiCd / NiMH Batteries | 1 ~ 25 cells per channel |
| Pb Batteries | 1 ~ 18 cells (2 ~ 36V) per channel |
Functionality and Application Details
The Icharger Duo 4010 provides a wide range of voltage and charge current, allowing it to work with small and large batteries of various chemistries: from LiPo and LiIon to NiMH and lead-acid (Pb) batteries. The synchronous mode allows combining channels to achieve higher power and current (up to 2000 W or up to 70A depending on configuration). Balancing with 10 mV accuracy and 1.2A current per channel guarantees proper cell equalization and extends battery life. Built-in protections against short circuit, overload, and overheating ensure safe operation even during intensive use.

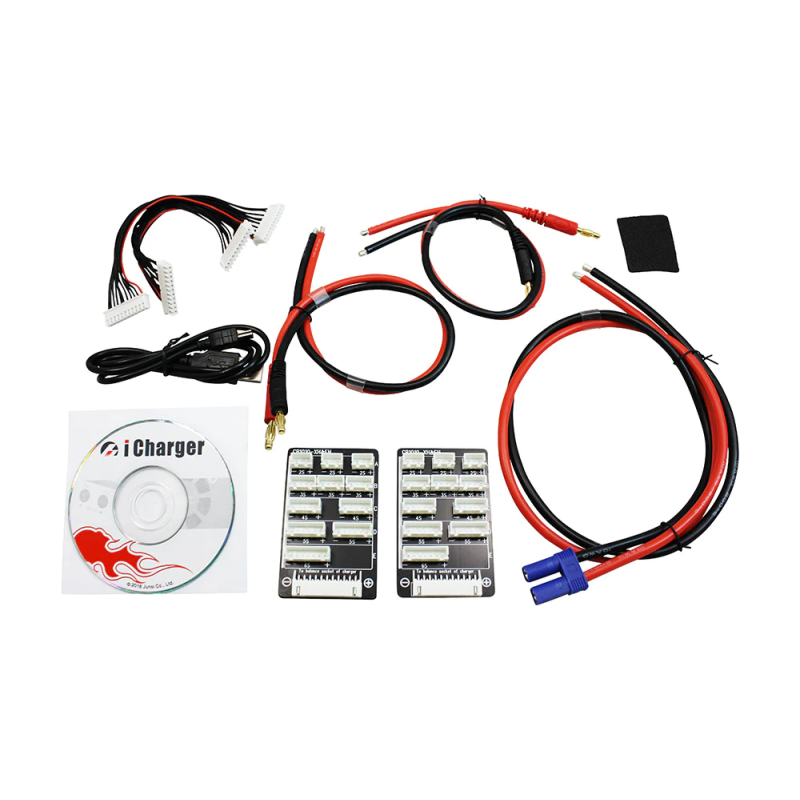

Package Contents
- iCharger 4010 DUO Charger - 1 pc.
- Battery connection cable with bare contact - 2 pcs.
- Balancing board connection cable - 2 pcs.
- Balancing board - 2 pcs.
- Anti-slip rubber pads - 2 pcs.
- USB cable - 1 pc.
- Disc with manual and software - 1 pc.
The device is ideal for RC model enthusiasts, professionals working with powerful batteries, and anyone who values balancing accuracy and protection reliability. Compact dimensions of 210 x 140 x 80 mm and a weight of 1470 g make the iCharger Duo 4010 convenient for placement on a workbench or in a workshop. The input voltage of 9-50V DC and input current limit of 65A allow the use of various power sources and integration of the charger into existing workflows without significant modifications.
