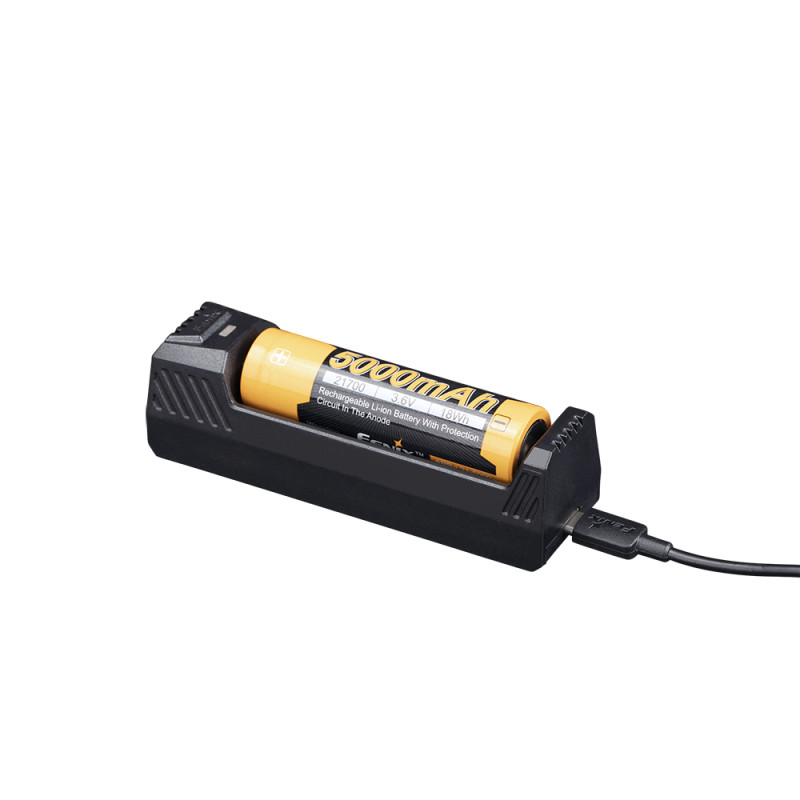

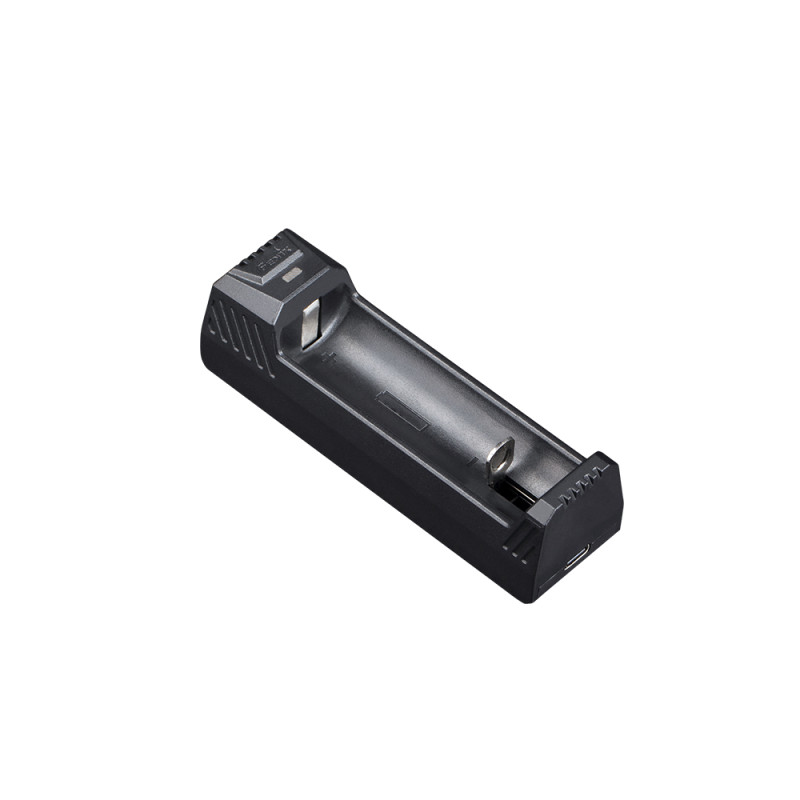

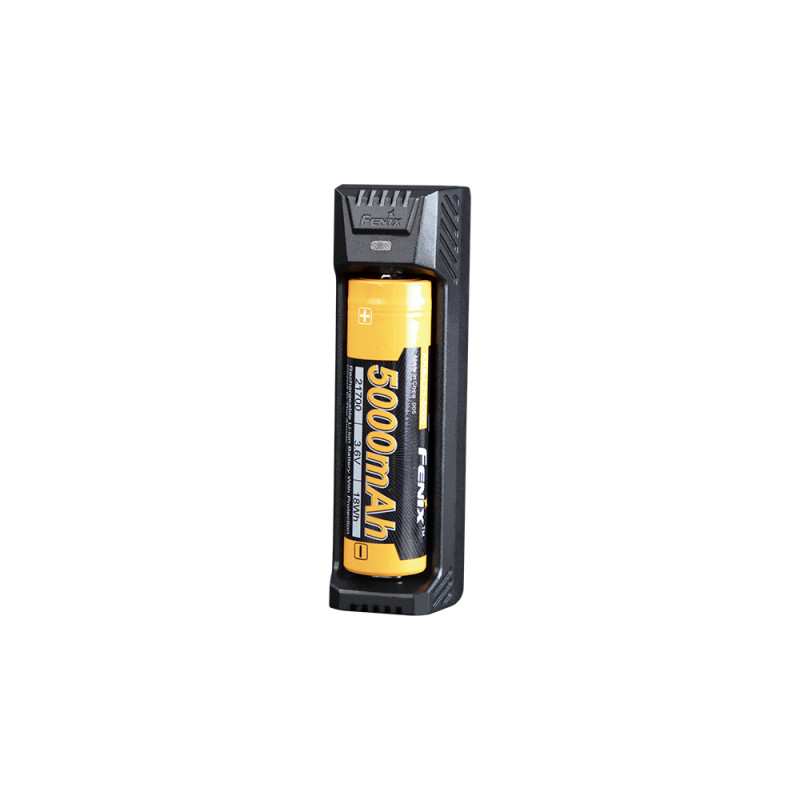

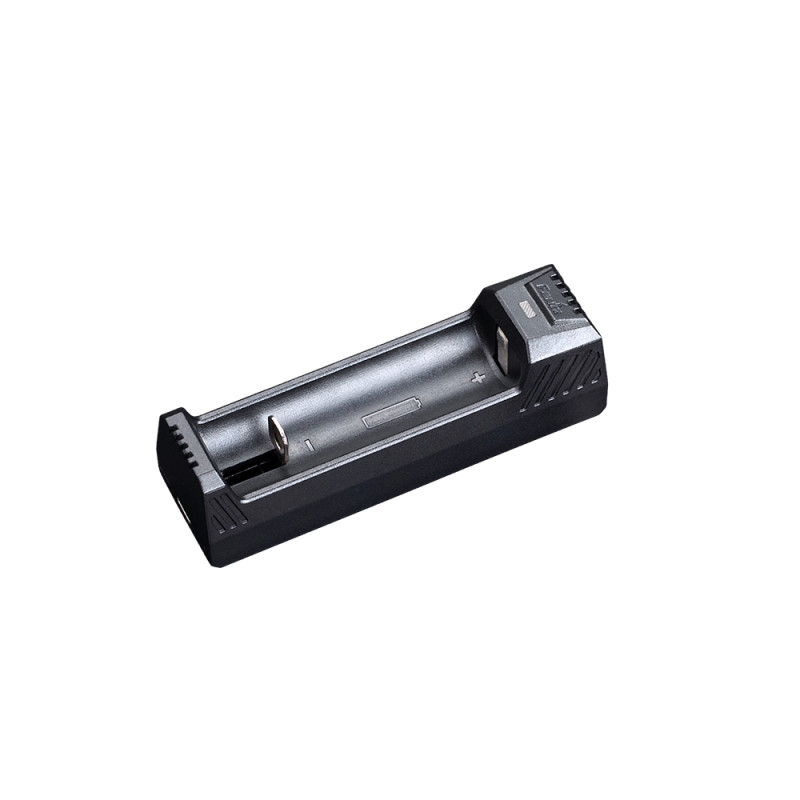

Fenix ARE-X1 V2.0 Charger

Introducing the Fenix ARE-X1 v2.0 intelligent single-channel charger — a compact and reliable solution for charging 18650, 21700, and 26650 batteries. The device combines charging, discharging, and battery level indication functions, supports charging via USB Type-C and discharging via USB, making it a versatile assistant on the go and at home.

The Fenix ARE-X1 V2.0 acts as a power bank and can charge various electronic devices, including smartphones, thanks to its external USB output. The maximum charging current is 1500 mA, ensuring fast and efficient charging of compatible batteries. The built-in microcomputer chip with digital charging regulation optimizes the charging process, extending battery life.

Safety and Indication

The device features a high level of protection: short-circuit protection, overcurrent protection, overvoltage protection, overcharge protection, and reverse polarity protection. LED indicators clearly display the charging and discharging status, making usage simple and straightforward.

Technical Specifications

• Input current/voltage: 5 V / 1.5 A (maximum).
• Output current/voltage for charging: 4.2 V / 1.5 A.
• USB output current/voltage: 5 V / 1 A.
• Supported battery types: 18650, 21700, 26650.
• Functions: charging, discharging, charge level indication, power bank (USB discharge).
• Microcomputer chip with digital charging regulation to extend battery life.
• Protections: short circuit, overcurrent, overvoltage, overcharge, and reverse polarity.
• Storage temperature range: -20 °C to +85 °C.
• Operating temperature: -20 °C to +50 °C.
• Operating humidity: 5% (0 °C) – 90% (40 °C) – 72 hours.
• LED indicator for battery charging/discharging and charge status.
• Device dimensions: 109 × 33.5 × 32.5 mm.
• Package dimensions: 212 × 184 mm.
• Weight: 48 g (including battery weight).

Package Contents

The package includes: ARE-X1 V2.0 charger, USB Type-C charging cable, and user manual. A PDF manual is also available: Download Manual.

The Fenix ARE-X1 V2.0 model is ideal for users who need a versatile, safe, and compact charging station for various battery types. Thanks to intelligent charging algorithms and a full set of protections, this device ensures safe operation and helps extend battery life, while the power bank function adds mobility to daily use.
