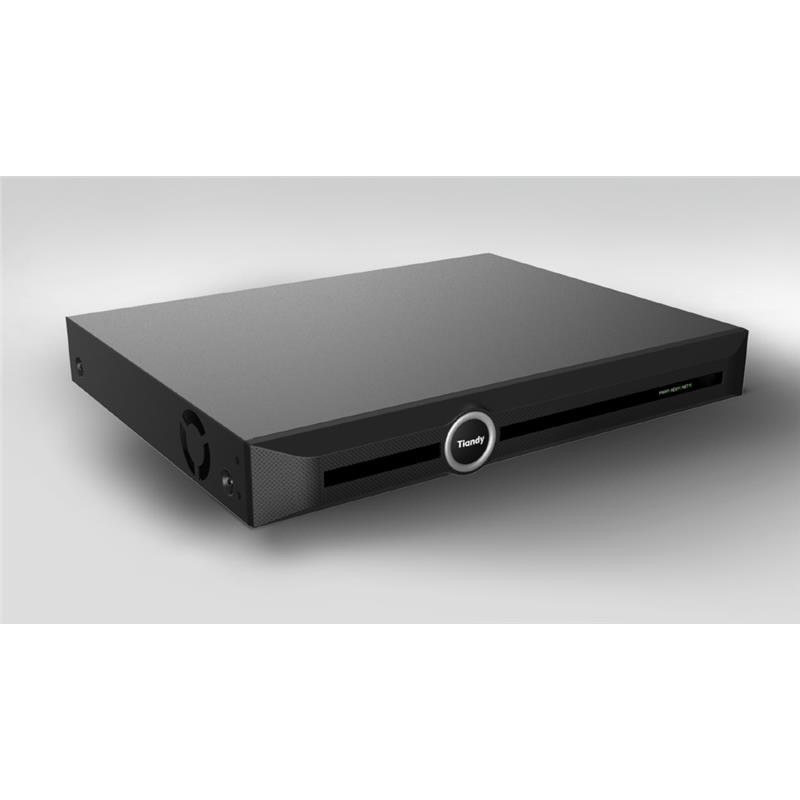

Tiandy TC-R3232 Spec:I/B/K/V3.1

H.265 2HDD 32-Channel Lite Series NVR

• Supported camera resolution: up to 8MP
• Input/Output bandwidth: 160 Mbps / 64 Mbps
• 2×USB2.0
• 1×HDMI 1×VGA
• 1×RJ-45, 10/100 Mbps self-adaptive network
• 2×SATA interfaces up to 10 TB per HDD
• Operating conditions -10º~55º
• DC12V 3.3A

HD Input

• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party ONVIF, RTSP network cameras
• Supports real-time viewing, storage, and playback of connected cameras with resolution up to 8 MP
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16, 4CIF(30fps)×32

HD Output

• 1×HDMI and 1×VGA simultaneous outputs
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×16

Various Applications

• Centralized management of IP cameras, including setup, import/export of information, real-time information display, updates
• Supports camera analytics: Line Crossing; Double Crossing; Perimeter; Object Left; Object Missing; Loitering; Running; Parking; Heat Map; Abnormal Video; Abnormal Audio; On-Duty Detection; Crowd Detection; Safety Helmet Detection; People Counting; Tracking Linkage for PTZ cameras; Smoke and Fire Detection; Ambient Temperature Measurement; Face Recognition; Human Body Temperature Measurement; Smart Motion; Human/Vehicle Classification.
• Intelligent archive search: Heat Map; Early Warning Search; Behavior Search; Thermographic Search; On-Duty Search; Face Search.
• Face search attributes: Gender; Age
• Web6 supports plugin-free viewing and can view videos in all browsers
• Supports cloud upgrade
