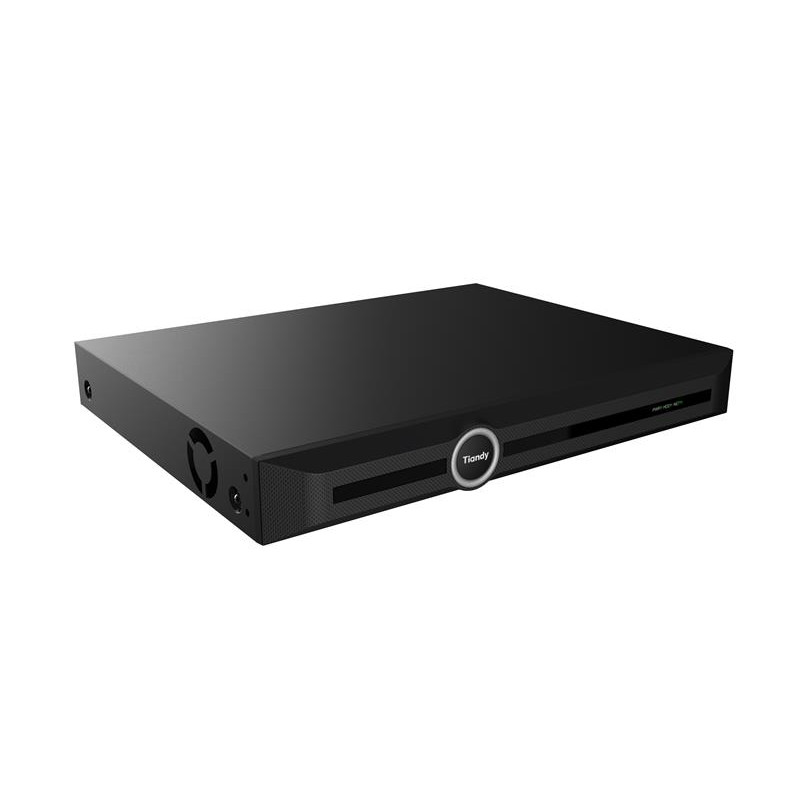

Tiandy TC-R3210 Spec:I/B/P8/K/V3.1

H.265 2HDD 10-Channel PSE Lite Series NVR

• Supported camera resolution: up to 8MP
• Input/Output bandwidth: 160 Mbps / 64 Mbps
• 2×USB2.0
• 1×HDMI 1×VGA
• 1×RJ-45, 10/100 Mbps self-adaptive network
• PoE 8 x RJ45 10/100 Mbps 30W
• 2×SATA interfaces up to 10 TB per HDD
• Operating conditions -10º~55º
• AC100~240V

HD Input

• PoE port: 8×RJ45 with self-adaptive 10/100 Mbps
• PoE power per port: 30W, PoE budget: 120W, IEEE 802.3 af/at
• Video formats S+265/H.265/ S+264/H.264
• Ability to connect third-party ONIF, RTSP network cameras
• Supports real-time viewing, storage, and playback of connected cameras with resolution up to 8 MP
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10, 4CIF(30fps)×10

HD Output

• 1×HDMI 4K and 1×VGA simultaneous outputs
• 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10

Various Applications

• Centralized management of IP cameras, including configuration, import/export of real-time information display, updates
• Supports camera analytics: Line crossing; Double crossing; Perimeter; Object left; Object missing; Loitering; Running; Parking; Heat map; Abnormal video; Abnormal audio; On-duty detection; Crowd detection; Safety helmet detection; People counting; Tracking link for PTZ cameras; Smoke and fire detection; Ambient temperature measurement; Face recognition; Human body temperature measurement; Smart motion; Human/vehicle classification.
• Intelligent archive search: Heat map; Early warning search; Behavior search; Thermographic search; On-duty search; Face search.
• Face search attributes: Gender; Age
• Web6 supports plugin-free viewing and can view video in all browsers
• Supports cloud update

Mobile software for viewing live and archived video, as well as managing video cameras and NVRs:

EasyLive mobile APP

iOS: EasyLive (iOS)

Android: EasyLive (Android)

Easy7 Smart Client Express software for video management based on macOS (64-bit) and Windows (64-bit) operating systems for Tiandy IP cameras, PTZ, NVR, XVR, decoders, etc. A maximum of 200 IP devices or 512 channels can be connected in Easy7 Smart Client Express. It supports functions such as preview, playback, alarms, two-way audio, PTZ control, etc., and configurations such as device management, user management, storage, events, and NVR-based failover.
