Product Code: FA122-184645-122
10 479 UAH
Main specifications
Column diameter, mm: 58
Current frequency, Hz: 50
Drill chuck size, mm: 16
Height of the machine, mm: 840
Maximum distance from spindle axis to column surface (throat), mm: 130
All specifications
We will deliver this product:
Payment
Description

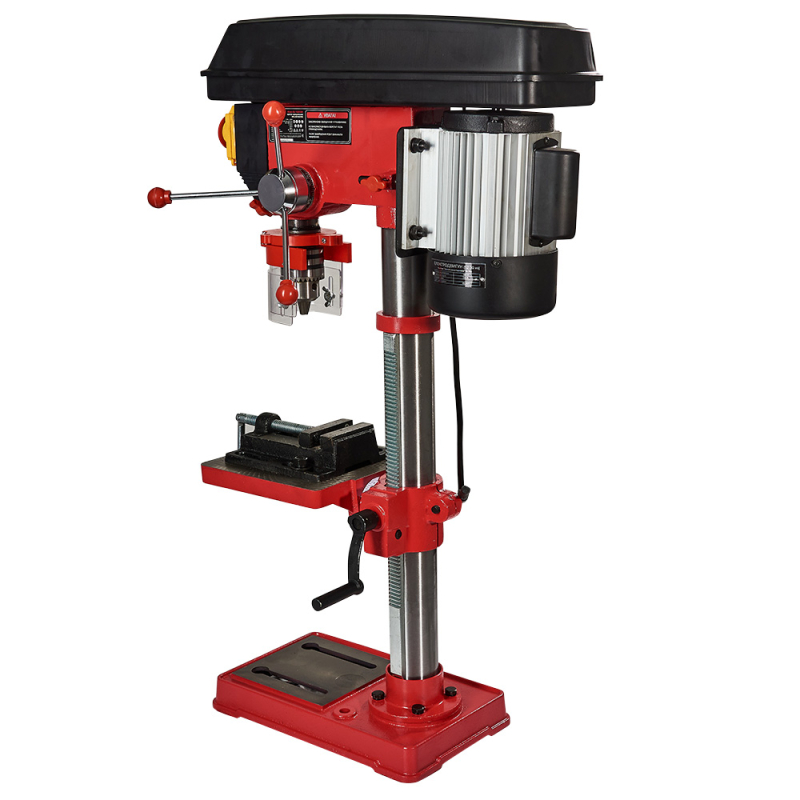

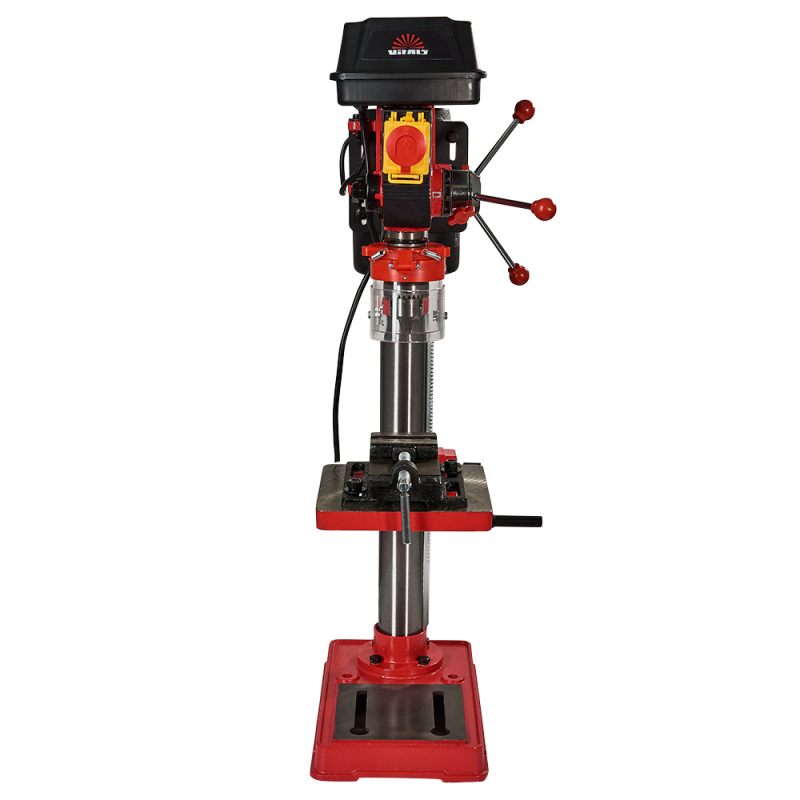

Description of Vitals GU 1655SM Drill Press

The Vitals GU 1655SM drill press is reliable and powerful equipment designed for drilling and material processing tasks. With it, you can perform various drilling operations with high precision and efficiency.

With a motor power of 550 W, this machine provides sufficient force and spindle speed for drilling holes in various materials. The spindle travel is 60 mm, allowing for deep drilling processes.

The machine is equipped with a 16 mm drill chuck, ensuring reliable fastening of the drilling tool. This allows you to use a wide range of drills of different diameters depending on your needs.

The delivery set also includes a vise, which ensures stable fixation of the workpiece. Thus, you can securely fasten parts and ensure stability during drilling operations.

One of the features of the Vitals GU 1655SM machine is the drill chuck guard. This prevents possible operator injuries in case of accidental contact with the rotating tool and ensures safe operation.

Additionally, the machine has an emergency stop button, which allows you to immediately stop operation in case of emergencies or if it is necessary to stop the machine in urgent situations.

The Vitals GU 1655SM machine also has 5 speeds, allowing you to adjust the spindle speed depending on the required drilling conditions and material type. This allows you to achieve optimal results and adapt the machine to various tasks.

Overall, the Vitals GU 1655SM machine is a reliable and multifunctional tool, ideal for use in workshops, garages, or industrial enterprises. It provides high productivity.

36-month warranty.

Specifications
Column diameter, mm 58
Current frequency, Hz 50
Drill chuck size, mm 16
Height of the machine, mm 840
Maximum distance from spindle axis to column surface (throat), mm 130
Maximum distance from spindle to base surface, mm 515
Maximum distance from spindle to table surface, mm 400
Net / Gross Weight, kg 26.6 / 27.8
No-load speed, RPM 620; 920; 1280; 1750; 2620
Nominal voltage, V 230
Package dimensions, mm 680×430×265
Power, kW 0.55
Table tilt angle right-left, degrees ±45
Vertical spindle travel, mm 60
Work surface / base dimensions, mm 190×190 / 340×210
Reviews
Product rating
5
Reviews: 1
5
1
4
0
3
0
2
0
1
0
Андрій
03 july (17:43)
Верстат компактний, але свої завдання виконує добре. Збірка якісна, для побутових і невеликих майстерневих робіт чудово підходить
