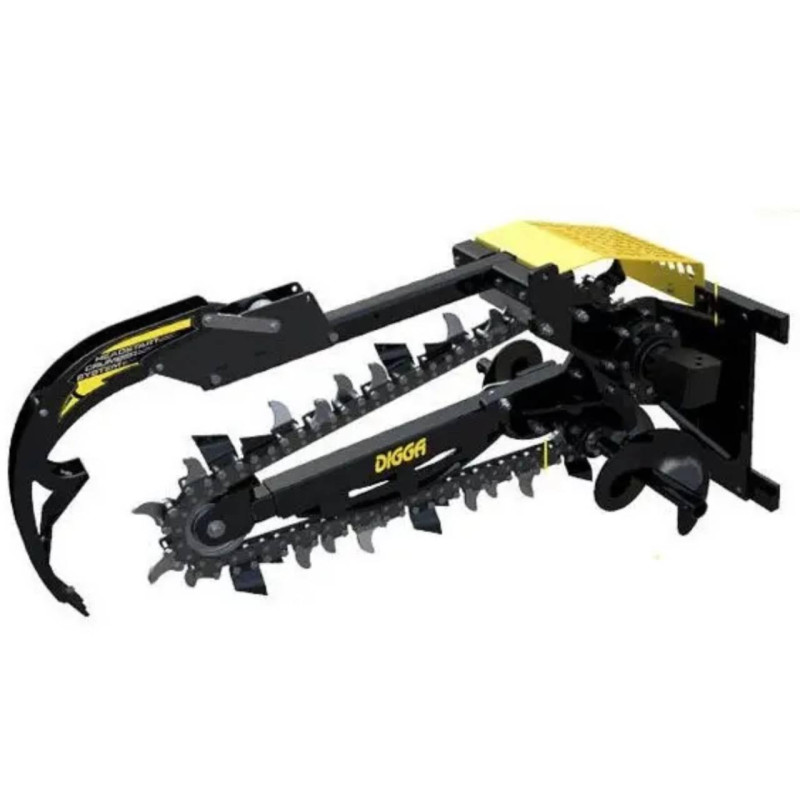

Digga Hydrive XD 1200 Trencher — Enhanced Power and Maximum Performance

The Digga Hydrive XD 1200 from the Digga brand is a professional heavy-duty trencher designed for intensive operation in the most challenging conditions. The model features a Hydrive direct drive system and is intended for mounting on excavators, skid steers, and other equipment weighing from 4.5 to 8 tons. The Hydrive XD 1200 ensures precise, fast, and clean trenching up to 1200 mm deep, even in rocky or dense soils, providing high productivity for contractors and construction crews.

Compatibility:

• Excavators up to 8 t
• High Flow Skid Steers
• Backhoe Loaders
• Telescopic Handlers

Key Specifications:

• Chain Pitch: 50.8 mm (2 inches)
• Maximum Digging Depth: 1200 mm
• Trench Width: 150 / 200 / 250 / 300 / 350 mm (depending on selected chain)
• Hydraulic Motor: Eaton 2K Bell
• Maximum Pressure: up to 240 bar (at 60 l/min)
• Required Hydraulic Flow: 60-115 l/min
• Maximum Hydraulic Flow: 115 l/min at 130 bar
• Maximum Power: up to 25 kW (34 hp)
• Weight: 238 kg without chain
• Dimensions: 2478 × 1212 × 957 mm

Features and Design:

• Enhanced efficiency Hydrive drive system ensures reliable operation during intensive use
• Includes one chain; choice of chain type (EARTH, COMBO, or ROCK) for specific soil types
• Digga planetary gearbox and Eaton hydraulic motor are positioned behind the auger for added protection against stones and soil ingress
• Two interchangeable augers allow for two-sided or one-sided spoil removal
• Spring-loaded trench cleaner automatically removes soil residue for a clean and neat result
• Includes 2.2 m high-pressure hoses (2 pcs.) and quick-release couplings (2 pcs.) — ready for connection

The XD (Extra Duty) model is specifically designed for heavy-duty work conditions: its reinforced construction and high-precision components allow it to withstand significant loads without loss of performance. By positioning the gearbox and hydraulic motor behind the auger, the trencher offers enhanced protection for key components, simplifying maintenance and reducing the risk of damage when working in rocky soils.

The Hydrive XD 1200 is ideal for contractors involved in utility installation, preparatory earthworks for construction and renovation, and for working in difficult soils. Versatile trench width options and the ability to select the chain type (EARTH / COMBO / ROCK) ensure optimal performance for various tasks.

Model advantages: ease of maintenance, reliable protection of key components, adaptability to soil conditions, and various trench widths. If you need a reliable heavy-duty trencher for an excavator or high-flow skid steer, the Digga Hydrive XD 1200 meets these requirements and will provide stable performance for years.
