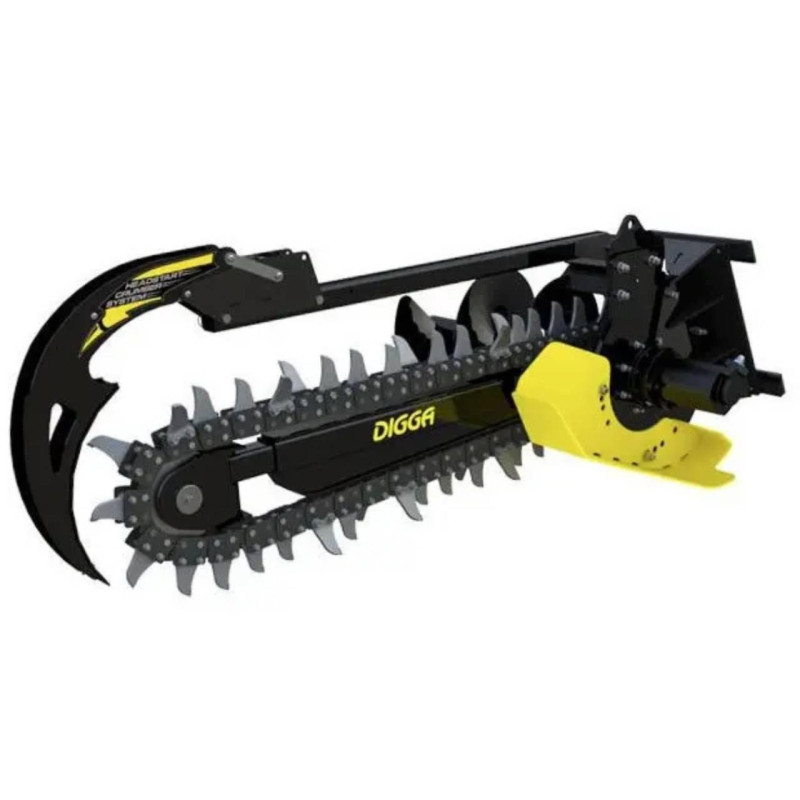

Digga Bigfoot XD 1500HF Trencher — Powerful Industrial Unit for Heavy-Duty Work

Digga Bigfoot XD 1500HF is a professional trencher designed for intensive use with excavators and skid steers weighing 6 to 8 tons. The model is equipped with a high-performance High Flow hydraulic motor, allowing stable digging in dense and rocky soils, ensuring high productivity, reliability, and precision when laying utility lines.

Compatibility

• Excavators up to 8 t
• High Flow Skid Steers
• Telescopic Loaders
• High Flow Backhoe Loaders

Key Features

• Chain Pitch: 50.8 mm (2 inches)
• Maximum Digging Depth: 1500 mm
• Trench Width: 150 / 200 / 250 / 300 mm (depending on chain)
• Depth Adjustment: 750 / 1000 / 1250 / 1500 mm (adjustable by skid foot)
• Hydraulic Motor: Eaton 6K Bell (High Flow)
• Maximum Pressure: up to 240 bar (at 130 l/min)
• Required Hydraulic Flow: 105–170 l/min
• Maximum Hydraulic Flow: 170 l/min at 180 bar
• Maximum Power: up to 50 kW (67 hp)
• Weight: 461 kg with 150 mm Combo chain
• Dimensions: 2689 × 1212 × 836 mm

Package Contents

• DIGGA planetary gearbox and Eaton hydraulic motor
• Skid foot for digging depth adjustment
• Auger for right-side soil discharge
• Spring-loaded trench cleaning device
• Chain — 1 pc.
• Hydraulic Hoses 2.2 m (2 pcs.), Quick Couplers (2 pcs.)

The Digga Bigfoot XD 1500HF is designed for intensive operation: the combination of a DIGGA planetary gearbox and an Eaton hydraulic motor ensures long-term operation with minimal maintenance costs. The skid foot allows for quick changes in digging depth, giving the operator flexibility when working in various conditions. The right-side discharge auger and spring-loaded device enhance the efficiency of soil removal and trench cleaning, which is especially important when performing large volumes of earthworks.

Thanks to a wide hydraulic flow range of 105–170 l/min and the ability to operate at high pressure up to 240 bar (at 130 l/min), the Bigfoot XD 1500HF is compatible with modern High Flow systems and suitable for construction, municipal, and infrastructure projects requiring high productivity and reliability. The unit's dimensions and weight allow for easy integration with equipment weighing 6–8 tons, making it a versatile solution for contractors.

If you need a reliable and durable trencher for challenging ground conditions, the Digga Bigfoot XD 1500HF meets professional requirements: high power up to 50 kW (67 hp), robust construction, and well-thought-out package contents allow for fast and economical work.
