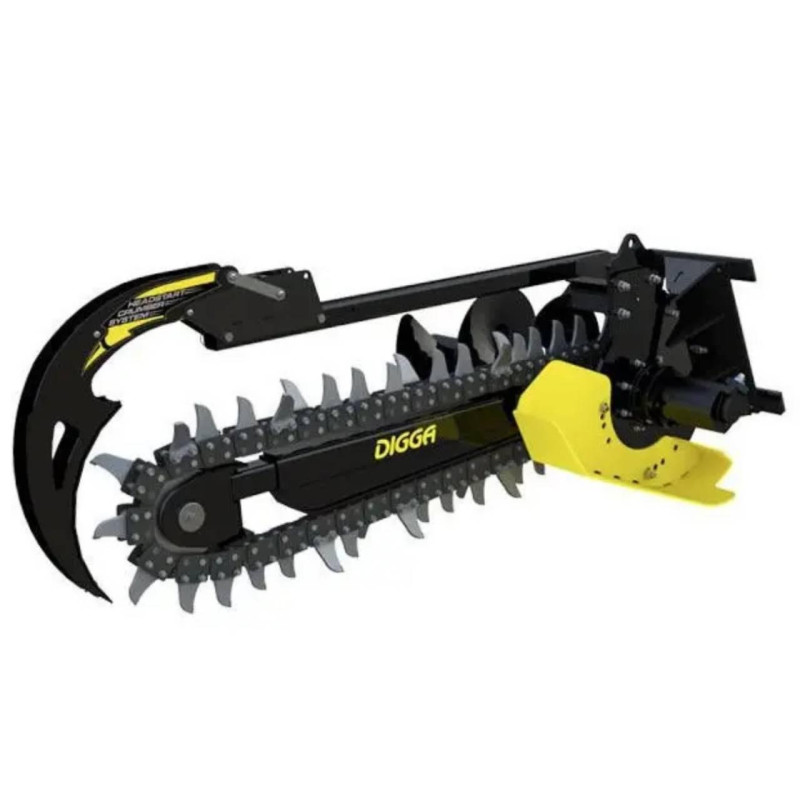

Digga Bigfoot XD 1200 Trencher — Powerful Industrial Unit for Demanding Conditions

Brand: Digga. Product Type: Trenchers. The Bigfoot XD 1200 model is a heavy-duty, industrial-grade trencher designed for the most challenging digging tasks in hard, rocky, and root-filled soil. The device is intended for mounting on excavators and loaders, providing high productivity, reliability, and a long service life.

Purpose and Compatibility

The Bigfoot XD 1200 is ideal for contractors, utility services, construction and installation organizations, and special equipment owners who require deep and wide trenches for laying utility networks. The device is designed for work under increased loads, including in rocky or heavily compacted soil. Compatibility:

• Excavators up to 8 t
• Skid steer loaders up to 8 t
• High Flow skid steer loaders
• Telehandlers
• Backhoe loaders

Key Specifications

• Chain pitch: 50.8 mm (2 inches)
• Maximum digging depth: 1200 mm
• Trench width: 150 / 200 / 250 / 300 mm (depending on chain)
• Depth adjustment: 600 / 800 / 1000 / 1200 mm (using skid foot)
• Hydraulic motor: Eaton 2K Bell
• Maximum operating pressure: up to 240 bar (at 60 l/min)
• Required hydraulic flow: 60–115 l/min
• Maximum hydraulic flow: 95 l/min at 200 bar
• Maximum power: up to 25 kW (34 hp)
• Weight: 405 kg with 150 mm Combo chain
• Dimensions (L × W × H): 2532 × 1212 × 777 mm

Package Contents

• DIGGA planetary gearbox and Eaton hydraulic motor
• Skid foot for digging depth adjustment
• Auger for right-side soil discharge
• Spring-loaded trench cleaning device
• Chain — 1 pc.
• Hoses 2.2 m (2 pcs.), Quick-release couplings (2 pcs.)

The Bigfoot XD 1200 is designed for situations where equipment depth and durability are critical. This trencher combines robust construction with high component reliability, efficient hydraulics, and the ability to quickly adapt to various trench widths and digging depths thanks to the skid foot and interchangeable chains. The reliable DIGGA planetary gearbox paired with an Eaton hydraulic motor ensures uniform load transmission and a long service life in harsh operating conditions.

With a required hydraulic flow range of 60–115 l/min and a maximum operating pressure of up to 240 bar, the Bigfoot XD 1200 demonstrates stable performance under intense loads. The maximum power of up to 25 kW (34 hp) allows for efficient work in dense and rocky soils, and a weight of 405 kg (with 150 mm Combo chain) ensures reliable stability during operations.

The model is suitable for a wide range of tasks: laying communications, cable installation, repair and construction work, preparing trenches for drainage, and other engineering tasks where high productivity and reliability are required. The equipment easily adapts to various types of loaders and excavators, making it a versatile tool for enterprises and subcontractors.
