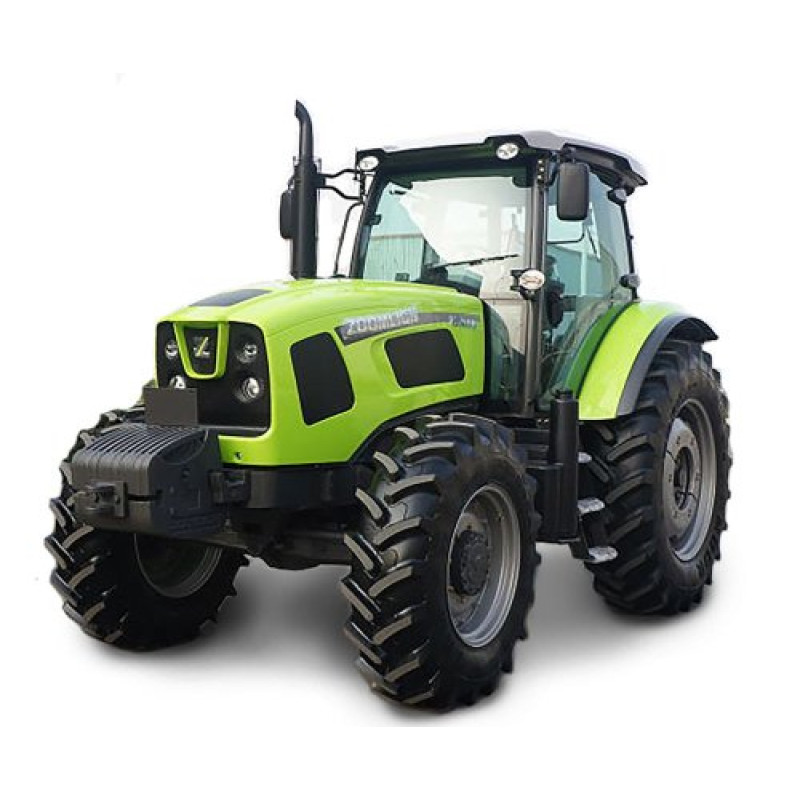

Zoomlion RS1604 Tractor — Powerful Universal Tractor

The Zoomlion RS1604 model from the manufacturer Zoomlion is a modern, reliable, and productive tractor designed for heavy field, transport, and specialized work. The tractor is equipped with a 6-cylinder engine manufactured using Yuchai technologies, featuring water cooling and a pre-start heater, ensuring confident starting in challenging climatic conditions. The engine's nominal power is 160 hp (117.6 kW), displacement is 6.5 L, and nominal crankshaft speed is 2300 rpm.

The model's technical solutions ensure durability and ease of operation: the 14" LUK dry-type clutch with independent dual-action control provides precise torque transmission, and the gearbox has a 16+8 configuration, allowing for optimal speed selection for field and transport operations. The power take-off (PTO) operates in 540/1000 rpm modes.

The tractor's hydraulic system is separate with 3 pairs of hydraulic outlets; the hydraulic pump type is a gear pump driven by the engine, and the hydraulic system's capacity is 70 L/min. The lifting capacity of the three-point hitch is 5200 kg, and the rear differential lock is hydraulically actuated, which enhances cross-country capability and stability during complex soil work.

Steering is hydraulic, independent. Front / rear wheel track is 1800 / 1850 mm. Front / rear tire size is 14.9-26 / 18.4-38. Turning radius is 5.8 m, ground clearance is 450 mm, allowing work on uneven terrain and in conditions requiring high cross-country capability.

Tractor dimensions (LxWxH): 5200x2435x3250 mm, wheelbase is 2640 mm, curb weight is 5810 kg. For optimal balance and stability, counterweights are provided: front — 520 kg, on rear wheels — 480 kg. Brakes are disc, in oil bath, with hydraulic drive. Fuel tank capacity is 300 L.

Cabin Equipment and Operator Comfort

The Zoomlion RS1604 cabin is designed for long shifts: air conditioning, cabin filters, heater, radio with MP3 player, 12V socket, sun visor, comfortable seat and additional seat, fire extinguisher bracket, thick solid sound-insulating mat, toolbox for tools and accessories. Additionally, a single-circuit pneumatic trailer brake system with a compressor, drawbar, and towing hitch, and an external control lever are installed, expanding the tractor's capabilities with mounted and trailed equipment.

Advantages of Zoomlion RS1604:

• High nominal engine power — 160 hp (117.6 kW) for intensive soil and transport work.
• Reliable Yuchai engine with pre-start heater ensures stable starting in cold weather.
• Robust transmission with 16+8 gearbox and LUK clutch for long service life.
• Efficient hydraulic system: separate circuit, 3 pairs of hydraulic outlets, capacity 70 L/min.
• High lifting capacity of the three-point hitch — 5200 kg.

The Zoomlion RS1604 combines high power, reliable hydraulics, a well-designed transmission, and a robust chassis structure, making it an optimal choice for medium and large farms, construction organizations, and enterprises with intensive operating modes. The reliable Yuchai engine, economical hydraulic system, and comfortable cabin enhance productivity and operator comfort during long shifts.
