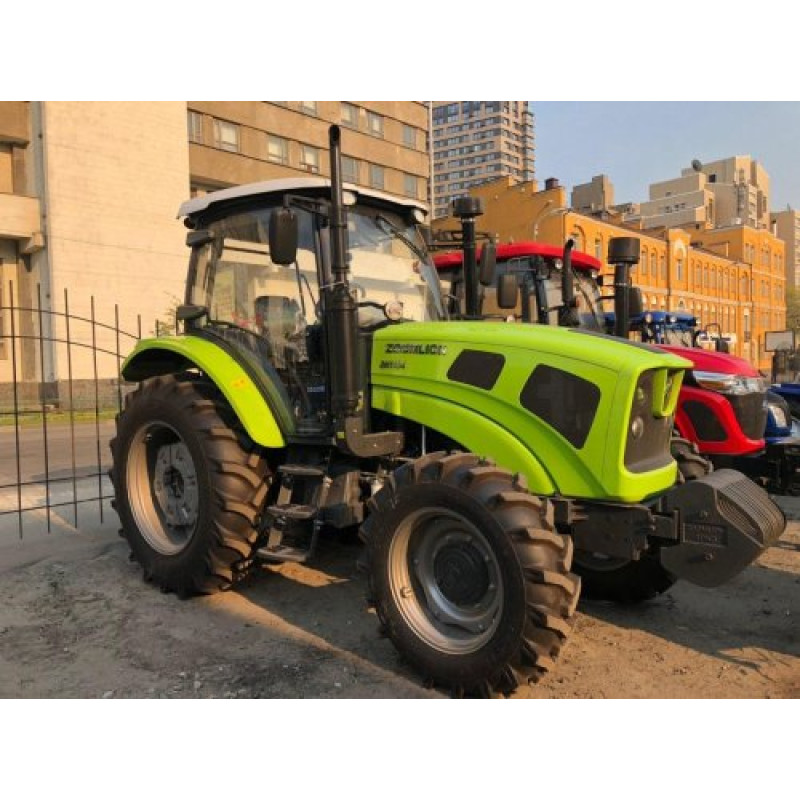

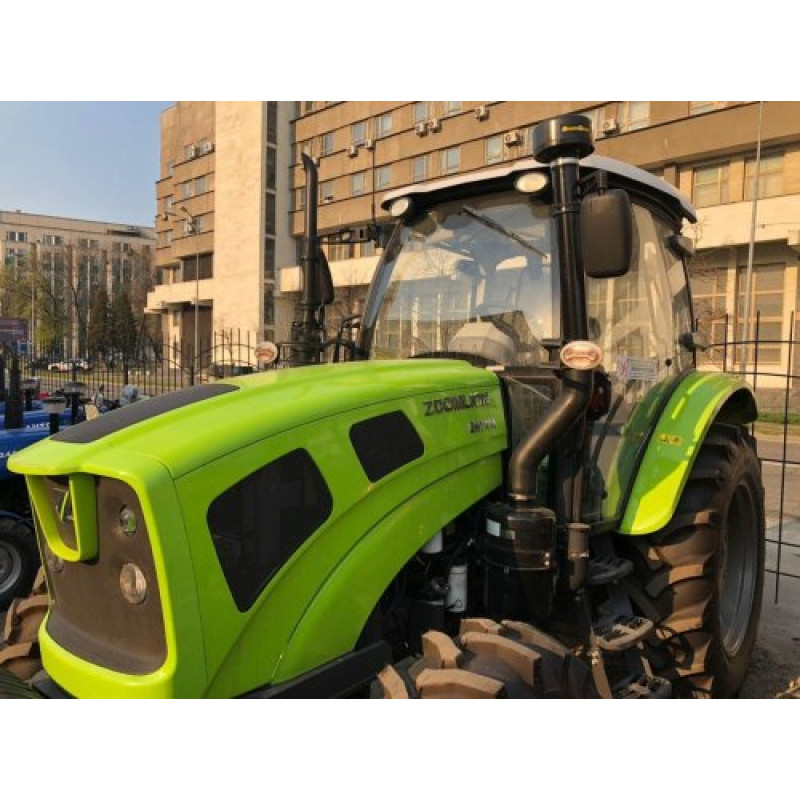

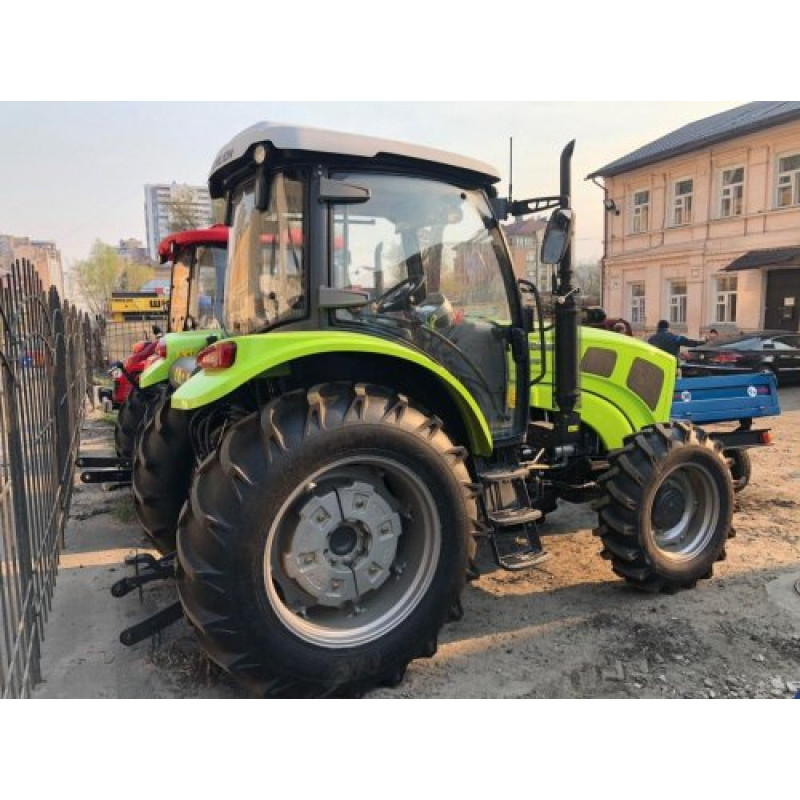

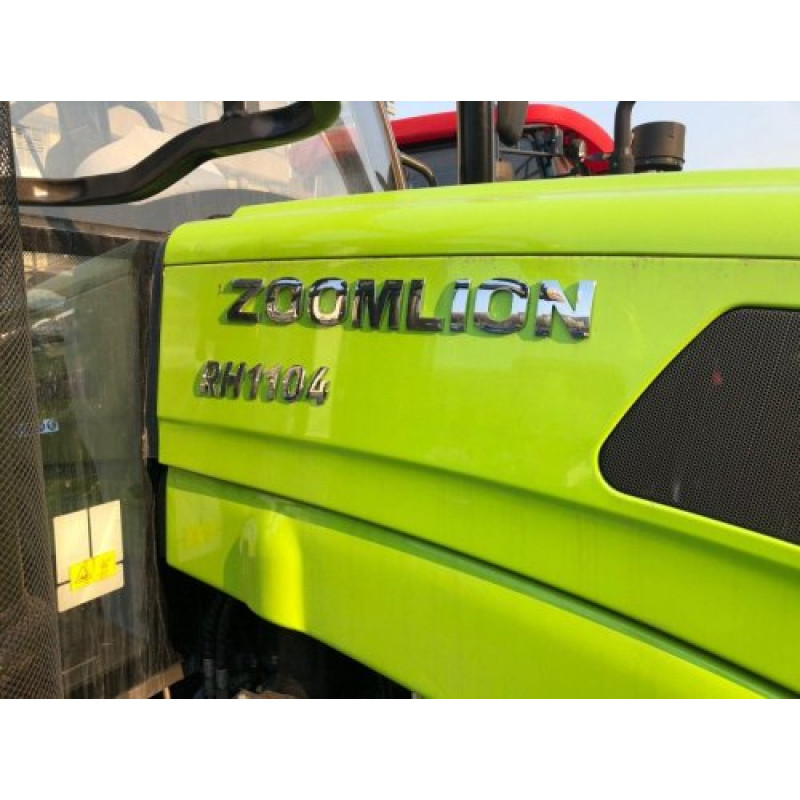

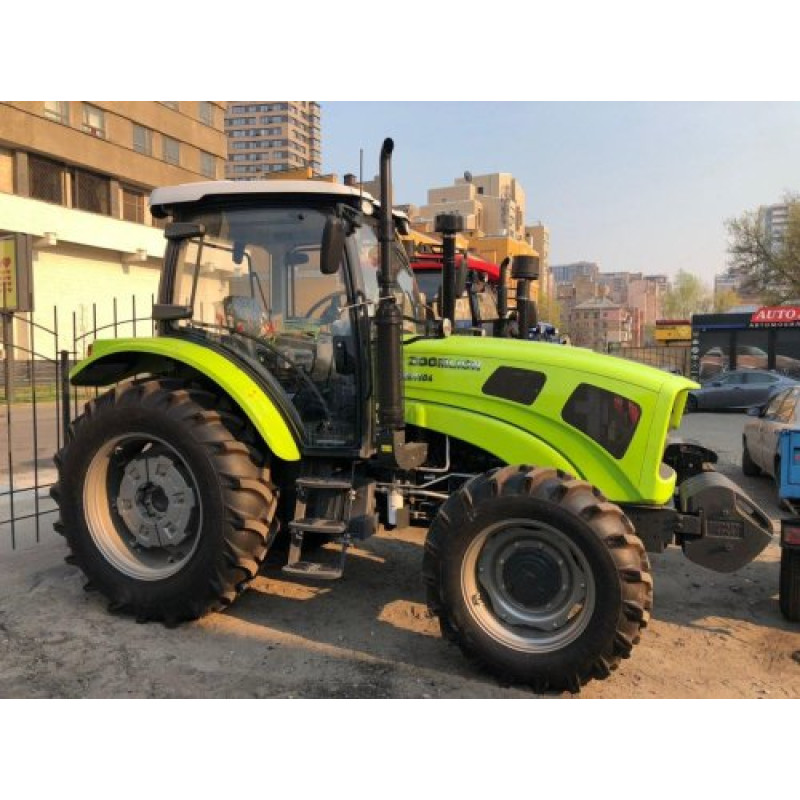

ZOOMLION RH 1104 Tractor — a powerful model from the Zoomlion brand
Model: ZOOMLION RH 1104. Manufacturer: Zoomlion. Product type: Tractors > Mini Tractors. This compact and productive mini tractor is designed by the leading Chinese company ZOOMLION, which has been designing and manufacturing agricultural and construction equipment for the Asian and European markets for over thirty years.
The ZOOMLION RH 1104 combines reliability, ease of maintenance, and a wide range of functions, making it an optimal choice for small and medium-sized farms, utility companies, and construction crews. Its modern configuration allows it to perform seasonal and year-round work in various climatic conditions.
Engine and Driving Performance

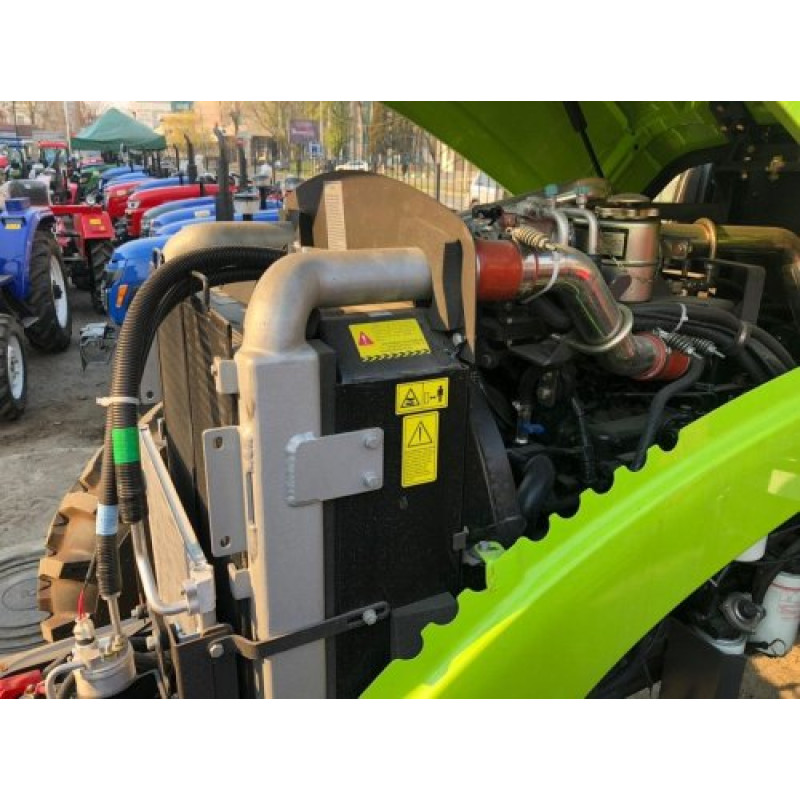

The model is equipped with an LR4M3Z-24 diesel engine with a turbocharger and direct injection system, 4 cylinders, and a displacement of 4750 cm3. The forced water cooling system ensures stable operation under intense loads and extends the service life of the units. Wheel formula: 4x4. Traction force is 21.7 kN. Engine power: 81 hp / 110 kW. Fuel type: diesel. Air filter type: air-vortex, multi-stage in oil bath. Glow plug / ignition system: direct injection.
Operator Comfort and Cabin Equipment

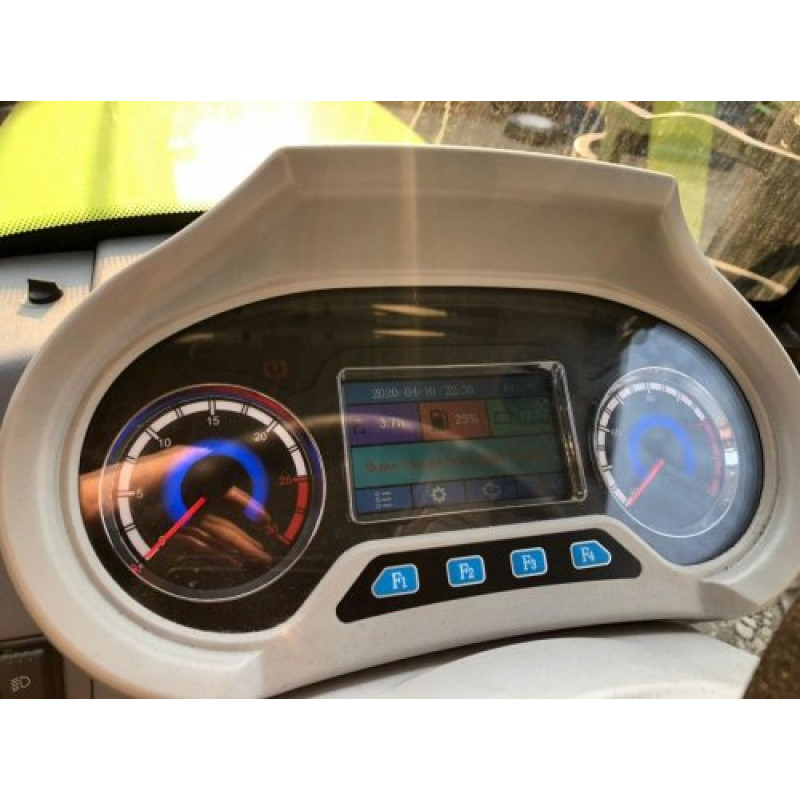

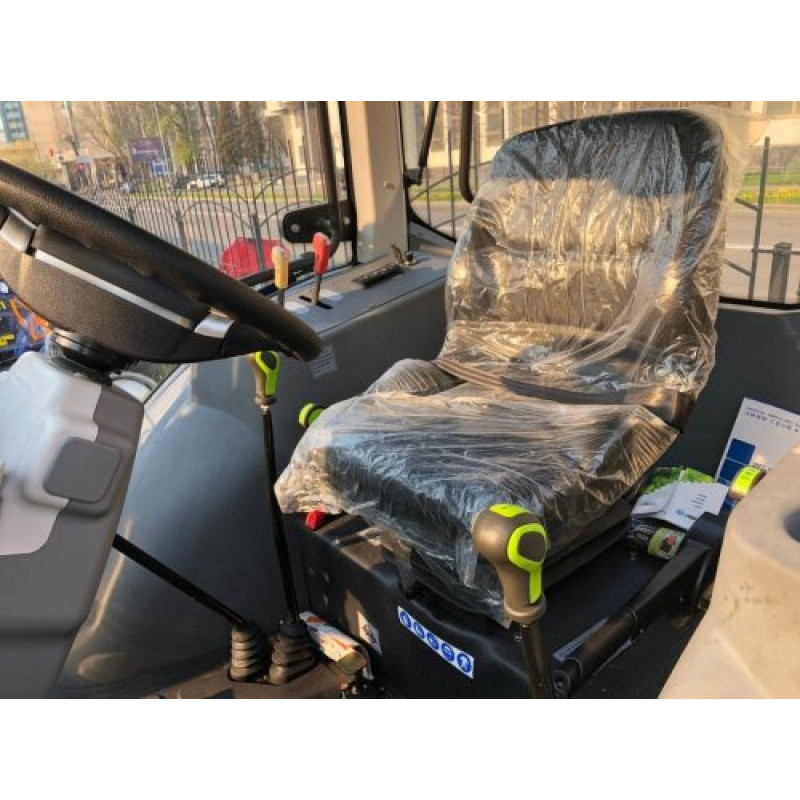

The ZOOMLION RH 1104 cabin is designed for long hours of work: it features a climate control system (air conditioning and heating), a pneumatic seat to reduce operator fatigue, a radio, and a charger for mobile devices. An electronic instrument panel is installed for monitoring technical condition. This equipment enhances productivity and safety during operation.

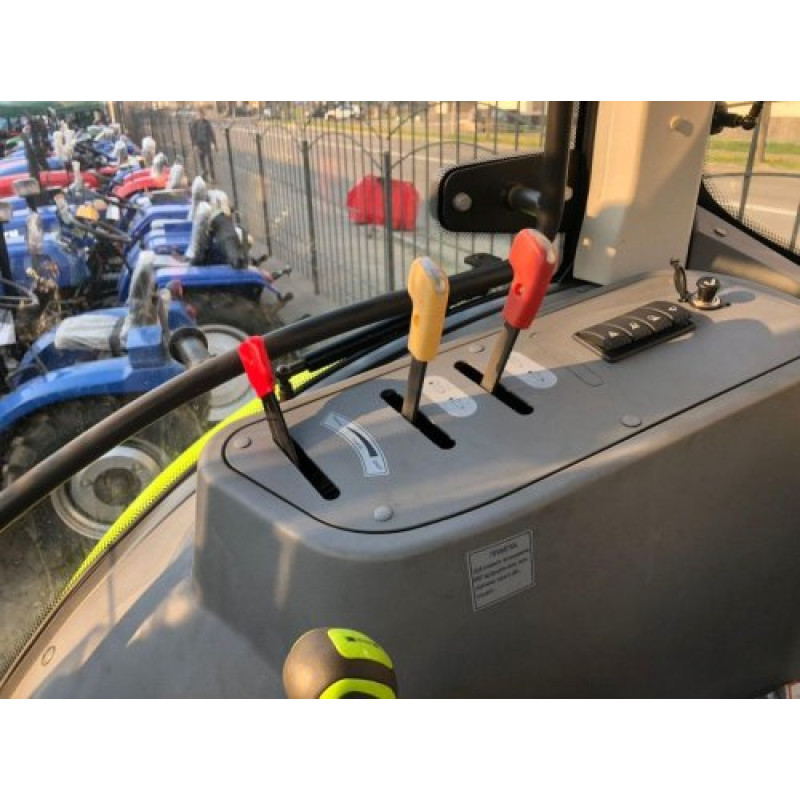

Transmission, Chassis, and Hydraulics
Gearbox: 16 forward gears, 8 reverse gears. Clutch type: 2-disc 12-inch. Power steering is available. Number of hydraulic pumps: 2. Parking brake: yes. Power take-off (PTO): 540/1000 rpm. Maximum lifting capacity of the hitch mechanism: 1800 kg. Fuel tank capacity: 150 L. Front/rear weights: 360/360 kg.
Dimensions, Tires, and Weight
Tractor weight: 4250 kg. Overall dimensions (LxWxH): 4700x2035x2900 mm. Wheelbase: 2192 mm. Front wheel track: 1610-1950 mm. Rear wheel track: 1610-2015 mm. Ground clearance: 499 mm. Front tire size: 13.6-24. Rear tire size: 16.9-34.
The ZOOMLION RH 1104 tractor is versatile in application: crop care, hay mowing, harvesting, snow removal, leaf clearing, heavy load transport, and working with various attachments. The manufacturer offers compatible units to expand the equipment's functionality.
How to Place an Order
To purchase the ZOOMLION RH 1104, add the item to your cart on the website or contact a store manager by phone. Our specialists will help you choose attachments and optimal options for your tasks.
Technical Specifications
| Engine model | LR4M3Z-24, turbocharger |
| Wheel formula | 4x4 |
| Power, hp / kW | 81/110 |
| Number of cylinders | 4 |
| Displacement, cm3 | 4750 |
| Traction force, kN | 21.7 |
| Fuel type | diesel |
| Engine cooling | water |
| Air filter type | air-vortex, multi-stage in oil bath |
| Glow plug | direct injection |
| Number of gears in gearbox | 16-forward; 8-reverse |
| Clutch type | 2-disc 12-inch |
| Weight, kg | 4250 |
| Front / rear weights, kg | 360/360 |
| Overall dimensions LxWxH, mm | 4700x2035x2900 |
| Wheelbase, mm | 2192 |
| Front wheel track, mm | 1610-1950 |
| Rear wheel track, mm | 1610-2015 |
| Ground clearance, mm | 499 |
| Front tire size | 13.6-24 |
| Rear tire size | 16.9-34 |
| Power steering | Yes |
| Number of hydraulic pumps | 2 |
| Parking brake | Yes |
| PTO, rpm | 540/1000 |
| Maximum lifting capacity of hitch mechanism, kg | 1800 |
| Fuel tank capacity, L | 150 |
The ZOOMLION RH 1104 is a balanced combination of power, comfort, and functionality from the Zoomlion brand, which will work effectively in the field, yard, or on a construction site.
