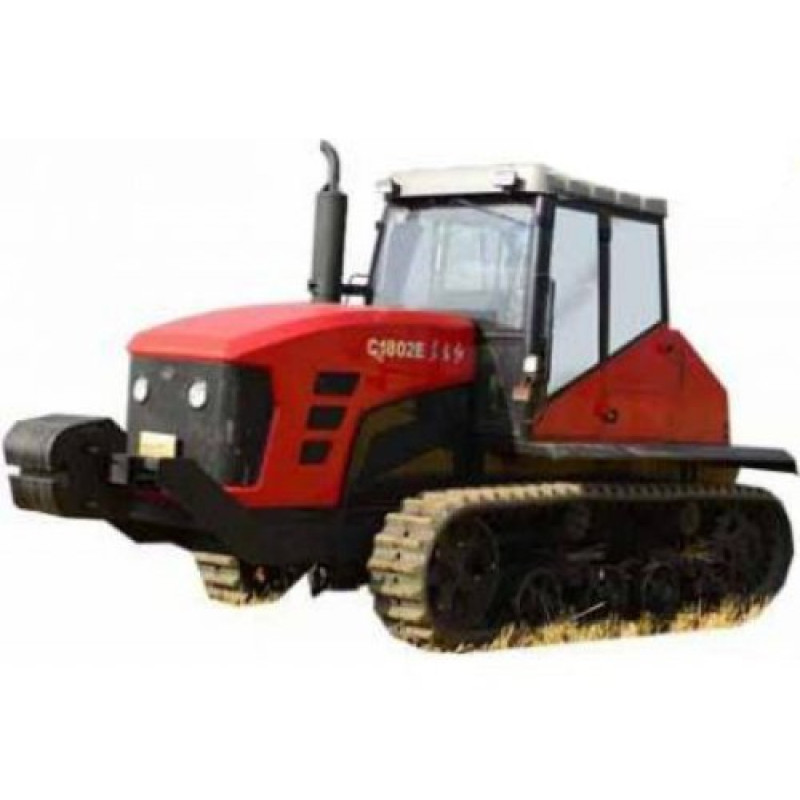

YTO C1802E Tractor — Powerful and Reliable Choice for Heavy-Duty Tasks
The YTO C1802E tractor from the YTO brand is a track-type tractor with a 6-cylinder diesel engine, designed for intensive use in agriculture and construction. The model combines high power of 180 hp (132 kW) with a working volume of 9.52 L, a water cooling system, and pre-start heating for reliable starting even in cold weather. The air purification system, based on an external filter with an oil bath, ensures long engine life and stable operation in dusty environments.
Key Technical Specifications and Configuration
| Engine Type | 6-cylinder diesel engine, with water cooling and pre-start heating |
| Engine Power, hp (kW) | 180 (132) |
| Engine Displacement, L | 9.52 |
| Air Purification System | External filter with oil bath |
| Clutch | Single-disc |
| Transmission | Mechanical, 12+4 |
| Hydraulic System: type / number of hydraulic outlets | Combined / 3 pairs |
| Hydraulic Pump Type | Gear pump with engine drive |
| PTO: revolutions, rpm | 540/1000 (6-spline shafts) |
| Track Gauge, mm | 1580 |
| Steering | Hydraulic |
| Track Width, mm | 400 |
| Ground Clearance, mm | 430 |
| Overall Dimensions: LxWxH, mm | 6200x2400x3150 |
| Wheelbase, mm | 1850 |
| Curb Weight, kg | 9800 |
| Cabin Equipment | Sealed cabin with filters, cabin heater and air conditioner, comfortable Grammer seat, additional passenger seat, sound-absorbing cabin lining, car radio with CD and MP3, fire extinguisher holder, toolbox and accessories |
The robust single-disc clutch assembly combined with a 12+4 mechanical transmission provides a wide range of gears for operation under various loads. The combined hydraulic system with three pairs of hydraulic outlets and an engine-driven gear pump ensure stable hydraulic fluid supply and efficient operation of mounted equipment.
The Power Take-Off (PTO) operates at 540/1000 rpm with 6-spline shafts, allowing connection of a wide range of working machines and mounted equipment. The 1580 mm wide track gauge and 400 mm track width provide excellent cross-country capability and stability on difficult terrain, while the 430 mm ground clearance allows safe maneuvering over uneven surfaces.
Dimensions and Weight
The compact dimensions of the tractor, 6200x2400x3150 mm, with a wheelbase of 1850 mm, combined with a curb weight of 9800 kg, indicate the structural strength and stability of the machine during heavy-duty work.
Cabin Comfort
- Sealed cabin with filters for dust protection
- Cabin heater and air conditioner for year-round operation
- Comfortable Grammer seat and additional passenger seat
- Sound-absorbing cabin lining to reduce operator fatigue
- Car radio with CD and MP3 support
- Fire extinguisher holder and toolbox with accessories
The YTO C1802E is suitable for a wide range of tasks: plowing, cultivation, soil preparation, towing, and working with heavy mounted and trailed equipment. The combination of high traction power, a reliable powertrain, and thoughtful ergonomics makes this model an optimal choice for farms and enterprises requiring a productive track-type tractor.
Other important data: brand YTO, product category — Tractors > Mini Tractors.
