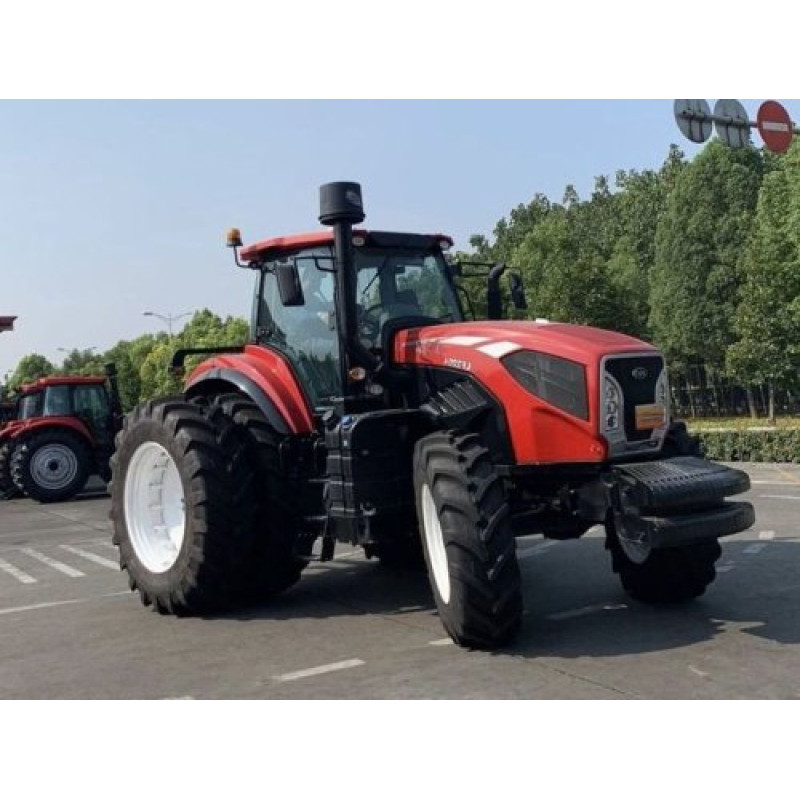

The YTO ELX2404 tractor from the YTO brand is a powerful, versatile mototractor in the Mototractors category, designed for intensive field work, soil cultivation, and transport operations. The model combines a high-performance engine, robust transmission, advanced hydraulic system, and a comfortable, sealed cabin, ensuring reliable operation over large areas and for complex agricultural tasks.

Description and Advantages

The YTO ELX2404 is equipped with a Cummins Euro III diesel engine with turbocharging, intercooling, and pre-start heating, guaranteeing stable traction and economical fuel consumption during prolonged loads. The nominal engine power is 240 hp (176.52 kW). Reliable air supply is ensured by a dry Donaldson air filter with paper elements and a clogging indicator, which extends engine life in dusty conditions.

Key Technical Solutions

• Clutch: 15-inch LUK clutch, single-acting, multi-disc, wet type — for smooth and reliable torque transmission.
• Gearbox: Mechanical with 18+6 or 24+8 gear options, can be equipped with a creeper gear (optional) — provides a wide range of speeds for field and transport work.
• Hydraulic System: Separate system with 3 pairs of hydraulic outlets, 95 l/min capacity, gear pump driven by the engine — for efficient control of mounted equipment.
• PTO: 198 hp (145.6 kW) power, 540/1000 rpm; 6 splines - 35 mm and 20 splines - 45 mm; hydraulic PTO damper with accumulator — for connecting various implements with a smooth start.

The model has a hitch lifting capacity of 4500 kg, hydraulic rear differential lock, and independent hydraulic power steering, ensuring high control, maneuverability, and проходимость in difficult soil conditions.

Dimensions and Wheel Options: Three front tire sizes are available: 540/65R28 or 16.9R28 or 16.9-28; rear — 650/65R38 or 20.8R38 (optional duals) or 20.8-38 14PR (optional duals). The turning radius is 7.3 m, ground clearance is 490 mm. Overall dimensions LхWхH: 5500х2800х3300 mm, wheelbase — 2790 mm, curb weight — 6900 kg.

Resources and Comfort: Oil-bath disc brakes with hydraulic drive ensure reliable braking under load. The fuel tank capacity is 280 liters, allowing for longer operation without refueling. The sealed cabin is equipped with heating and air conditioning, cabin filters, an additional seat, a roof hatch, and an engine operating mode switch, which enhances operator comfort in various climatic conditions.

The YTO ELX2404 is ideal for cultivating large areas, heavy plowing, working with soil cultivation and seeding equipment, and for transport operations with heavy trailers. The combination of a powerful Cummins engine, robust transmission, advanced hydraulic system, and comfortable cabin makes this model economical to operate and durable under intensive loads.

Additional configurations and options are available by contacting an official YTO representative or dealer. Order the YTO ELX2404 to modernize your farm and increase productivity today.
